Fujitsu SP-1120N User Manual

Parts and Functions
This section shows the names of the scanner parts.

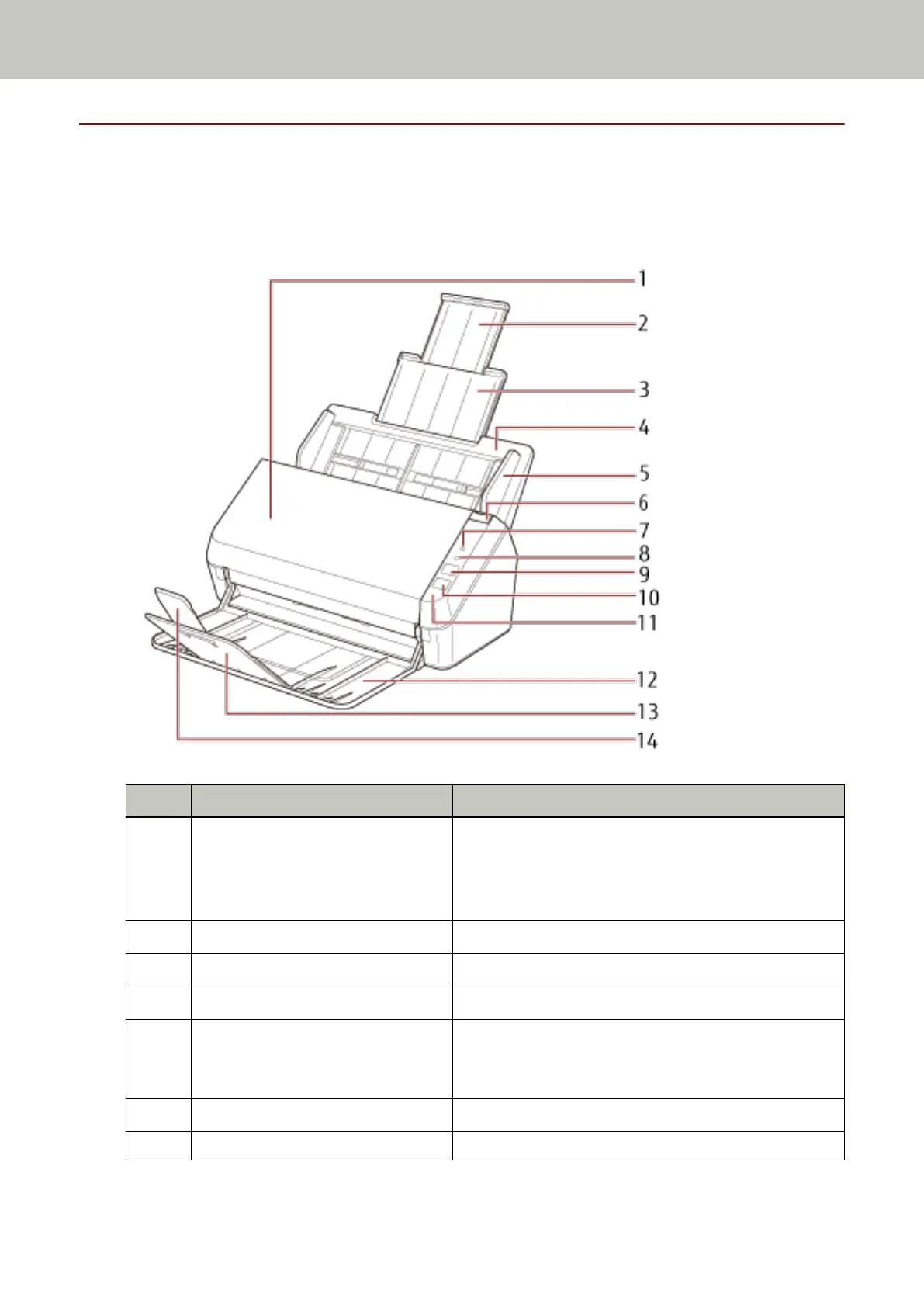

● Front
No. Name Function
1 ADF (Automatic Document Feeder) Pulls and feeds the documents one sheet at a time from
the ADF paper chute (feeder).
Open this to replace consumables or to clean the inside of
the scanner.
2 Chute extension 2 Pull out to adjust to the document length.
3 Chute extension 1 Pull out to adjust to the document length.
4 ADF paper chute (feeder) Holds the documents to be scanned.
5 Side guide Positions the documents in place when the documents are
loaded in the ADF paper chute (feeder) as they are fed into
the scanner.
6 ADF release tab Pull this tab to open the ADF.
7 Check Indicator Lights, flashes in orange, or turns off when an error occurs.
Scanner Overview
14

Fujitsu SP-1120N Specifications

General

Optical Resolution	600 x 600 dpi
Maximum Document Size	A4
Scan Speed (Color, A4, 300 dpi)	20 ppm
Scan Speed (Mono, A4, 300 dpi)	20 ppm
ADF Capacity	50 sheets
Interface	USB 2.0
Scanning Method	CIS (Contact Image Sensor)
Color Depth	24-bit
Grayscale Depth	8-bit
Scanner Type	ADF (Automatic Document Feeder)
Scanning Speed	20 ppm (pages per minute)
Daily Duty Cycle	3000 pages
Supported OS	Windows
Dimensions	298 x 135 x 133 mm
