Fujitsu SP-1120N User Manual

2 Place the documents at the center of the ADF paper chute (feeder), and adjust the side guides to the
widest document in the batch.
ATTENTION

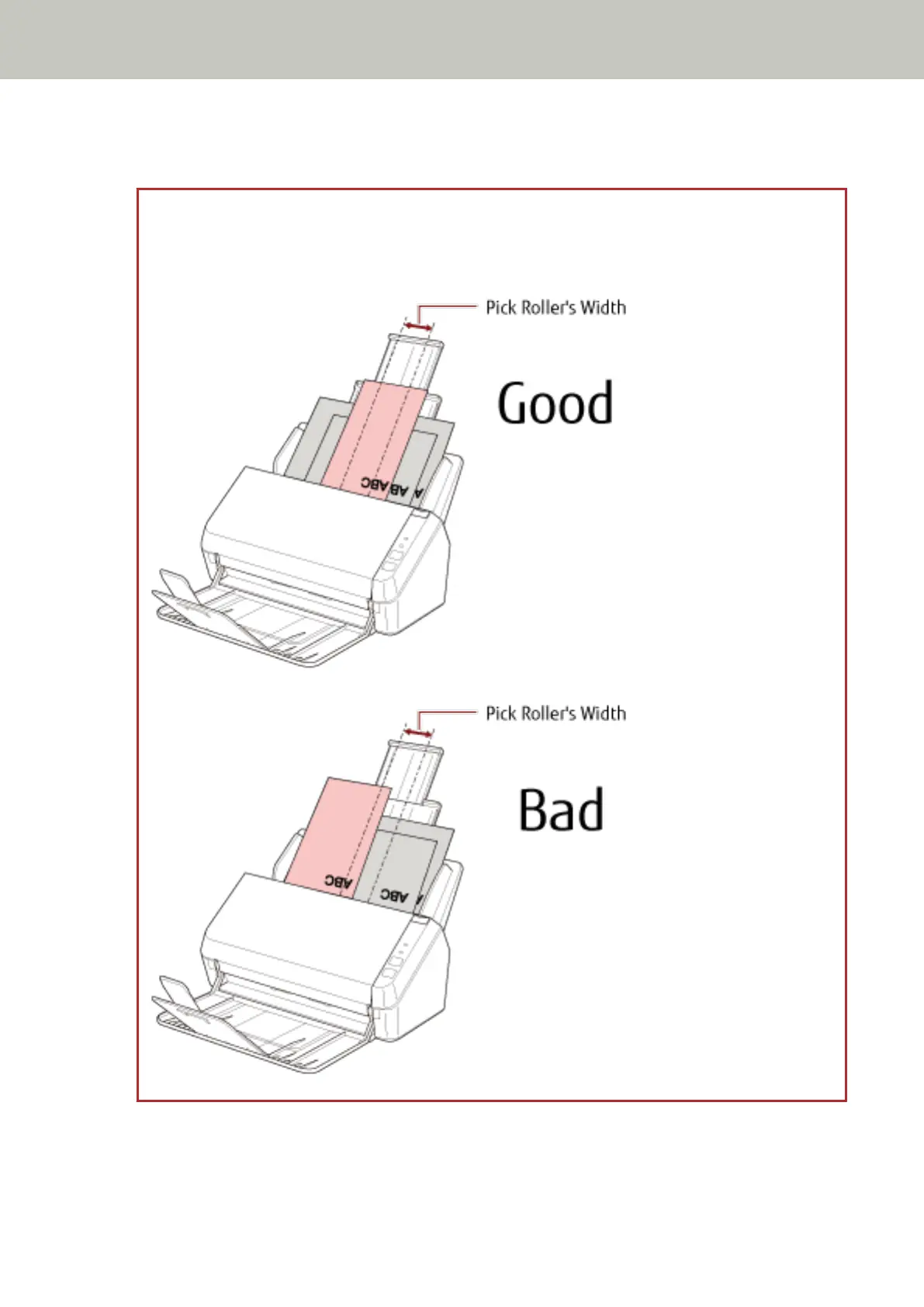

Load all documents above the center of the pick roller. If documents are loaded outside of the pick roller
width, they may be fed skewed or not fed into the ADF.
3 Adjust the stacker to fit the longest document.
For details, refer to Setting Up the Stacker (page 36).
Various Ways to Scan
63

Fujitsu SP-1120N Specifications

General

Optical Resolution	600 x 600 dpi
Maximum Document Size	A4
Scan Speed (Color, A4, 300 dpi)	20 ppm
Scan Speed (Mono, A4, 300 dpi)	20 ppm
ADF Capacity	50 sheets
Interface	USB 2.0
Scanning Method	CIS (Contact Image Sensor)
Color Depth	24-bit
Grayscale Depth	8-bit
Scanner Type	ADF (Automatic Document Feeder)
Scanning Speed	20 ppm (pages per minute)
Daily Duty Cycle	3000 pages
Supported OS	Windows
Dimensions	298 x 135 x 133 mm
