Connecting external devices

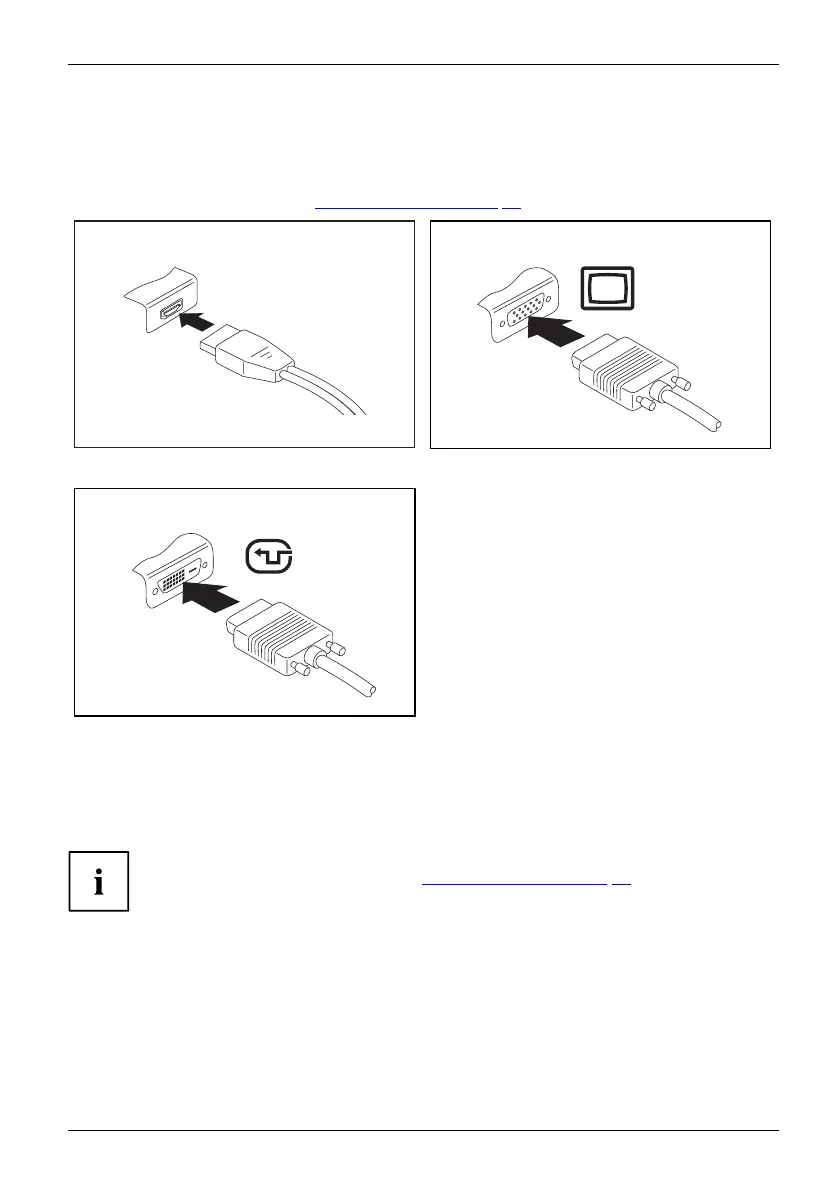

Connecting an external monitor to the port replicator
An analog monitor is connected to the analog VGA monitor port, a digital monitor to the DisplayPort
or to the DVI-D monitor port on the optional port replicator. Monitor output is limited to a maximum of
two m onitors at any one time (see "
Key combi nations", Pa ge 4 1, section "Tog gle output monitor").
MonitorVGA socketScreenc onnectionMonitorconne ction
Digital DisplayPort
Analog VGA monitor port
Digital DV
I-D monitor port
► Switch off the note book and the external monitor.
► Plug the data cable of the external monitor into the monitor port.
► First switch on the external monitor and then the notebook.
You can also switch back and forth between the external screen and the LCD
screen of the notebook, see ch apter "
Key combination s", Page 41.
You can display the same picture on the external monitor and the
notebook LCD screen simultaneously.
Fujitsu 71
