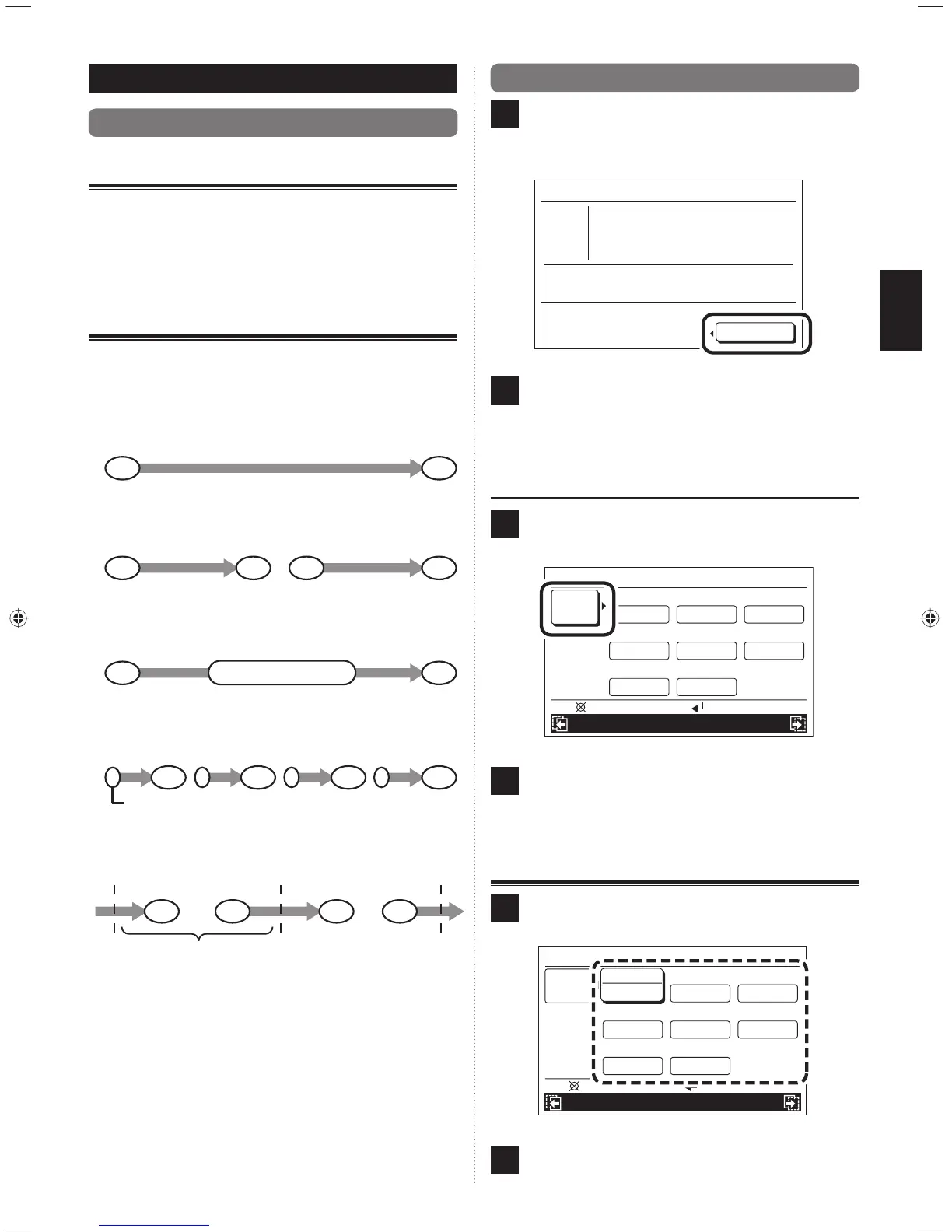

8. SCHEDULE SETTING
1
1
8-1. About the Schedule setting
8-1-1. About the Schedule name
Schedule pattern can be set for each schedule name “Sche-
dule 1” and “Schedule 2”. These cannot be applied to each
indoor unit simultaneously. Use it such as for “Summer” or
“Winter”.
8-1-2. About the setting of the time and
operations
Operations up to 4 times a day can be set. Set the pattern
according to the purpose and daily routines.
Off
On Off
On On OffOff
On
On OnOffOff
Off OffOffOff
Time 1 Time 2
Time 1 Time 2 Time 3 Time 4
Time 1
Time 1 Time 2 Time 3 Time 4
Time 2
Temperature change
Time 3
Time 1 Time 1Time 2
One day
Time 2
Ex. 1) On and Off once a day
Ex. 2) On and Off twice a day
Ex. 3) Change the temperature while operating
Ex. 4) Prevention to forget turning off
Ex. 5) Operation during the night
Switching on by using the standard remote controller.
1
8-2. Switching to the “Schedule” screen
1
If “Schedule” is selected with the [Cursor button (Left/
Right)] from the “Monitor” screen menu, and the [Enter
button] is pressed, the “Schedule (unit select)” screen
is displayed.
Mo 10:00AM
Off
Menu
Function
Monitor
Room 1
Room 4
Room 2 Room 3
Room 5 Room 6
Room 7 Room 8
Operation
Schedule
2
Proceed to [8-2-1. Setting of the same schedule for all
indoor units] or [8-2-2. Setting of the schedule for each
indoor unit].
8-2-1. Setting of the same schedule for
all indoor units
1
Select “Select all” with the [Cursor button] and press
the [Enter button].
Room 1
Disable
Mo 10:00AM
Schedule
Function Operation
Back: Setting:
Room 2
Disable
Room 3
Disable
Room 4
Disable
Room 5
Disable
Room 6
Disable
Room 7
Disable
Room 8
Disable
Select
all
2
“Schedule” screen is displayed. Proceed to [8-3-1. Se-
lection of schedule name].
8-2-2. Setting of the schedule for each
indoor unit
1
Select the indoor unit (Room X) to be set with the [Cursor
button] and press the [Enter button].
Mo 10:00AM
Schedule
Function Operation
Back: Setting:
Room 2
Disable
Room 3
Disable
Room 4
Disable
Room 5
Disable
Room 6
Disable
Room 7
Disable
Room 8
Disable
Select
all
Room 1
Disable
2
“Schedule” screen is displayed. Proceed to [8-3-1. Se-
lection of schedule name].
