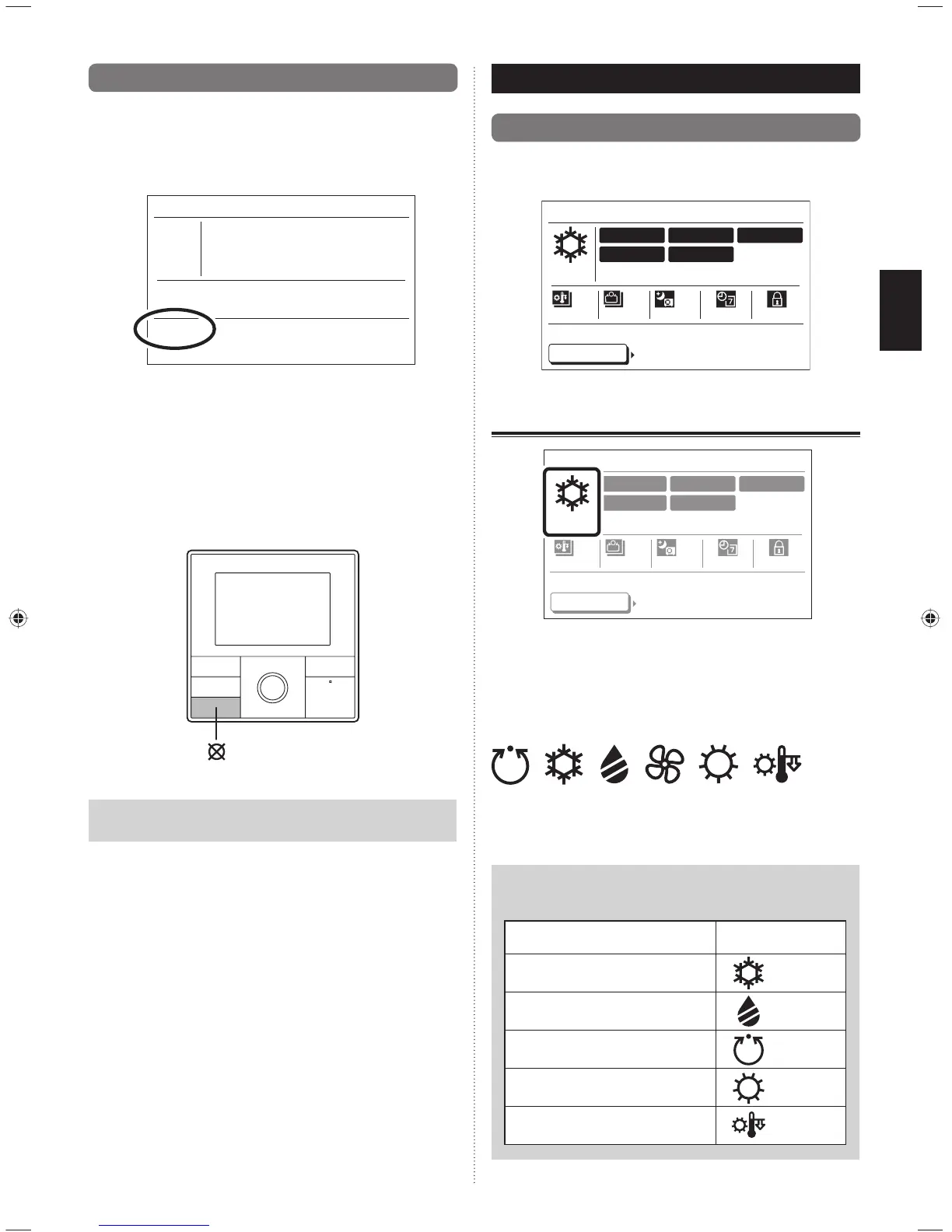

3-3. About the key lock
A locking function is provided to prevent careless operation
by children or outsiders. Release the lock on the “Monitor”
screen when operating. Refer to [4. MONITOR SCREEN] for
the “Monitor” screen.
Mo 10:00AM
Off
Key lock
Monitor
Room 1
Room 4
Room 2 Room 3
Room 5 Room 6
Room 7 Room 8
To lock up:
When the [Cancel button] is pressed for 2 seconds or more
continuously on the “Monitor” screen, all keys are locked, and
“Key lock” is displayed on the screen.
To release the lock:
When the [Cancel button] is pressed for 2 seconds or more
continuously on the “Monitor” screen, the lock is released,
and “Key lock” displayed on the screen turns off.
Cancel button
Note
“Key lock” display blinks when operating it while locked.
4. MONITOR SCREEN
1
1
4-1. About the Monitor screen
Setting status of functions or operating status of each indoor
unit is displayed. This is the basic screen of this control unit.
Schedule
RC prohibit
Mo 10:00AM
Cool
Menu
Function
Schedule
Monitor
Room 1
Room 4
Room 2 Room 3
Room 5 Room 6
Room 7 Room 8
All
Economy
O.U.
Low noise
All
10 °C Heat
Operation
4-1-1. Operation mode display
Schedule
RC prohibit
Mo 10:00AM
Cool
Menu
Function
Schedule
Monitor
Room 1
Room 4
Room 2 Room 3
Room 5 Room 6
Room 7 Room 8
All
Economy
O.U.
Low noise
All
10 °C Heat
Operation
Operating mode is displayed with marks. When all the indoor
units are stopped, “Off” is displayed.
Refer to [6. OPERATION SETTING] for operation mode set-
ting.
Marks of the operation mode
Auto Cool Dry Fan Heat
10 °C Heat
Of
All-off
Note
When multiple modes are operated at the same time,
the following are displayed.
Operation mode Displayed mark
“Cool” and Dry, Auto and/or Fan
Cool
“Dry” and Auto and/or Fan Dry
“Auto” and Fan Auto
“Heat” and Auto Heat
“10 °C Heat”
10 °C Heat
