1. OPERATION
1-29
1
1.19 RezBoost
™
With a RezBoost
™
capable transducer*, echo resolution can be improved. In the ex-
ample below, it is difficult to distinguish fish from the bottom. With [Enhanced]
RezBoost
™
, fish near the bottom are clearly seen.
*: See page AP-5 ‘’Transducer List’’ for further information.
Note 1: This function is not available when a CW transducer and a CHIRP transducer
are connected at the same time (only for FCV-800).
Note 2: This operation cannot be performed if a RezBoost
™
compatible transducer is
not set up.
1. Press the MENU/ESC key to open the menu.
2. Select [Sounder], then press the KNOB.
3. Select [RezBoost], then press the KNOB.
4. Select [On], then press the KNOB.
5. Press the MENU/ESC key twice to close the window.
Note: To turn off the RezBoost™ function, select [Off] in step 4.

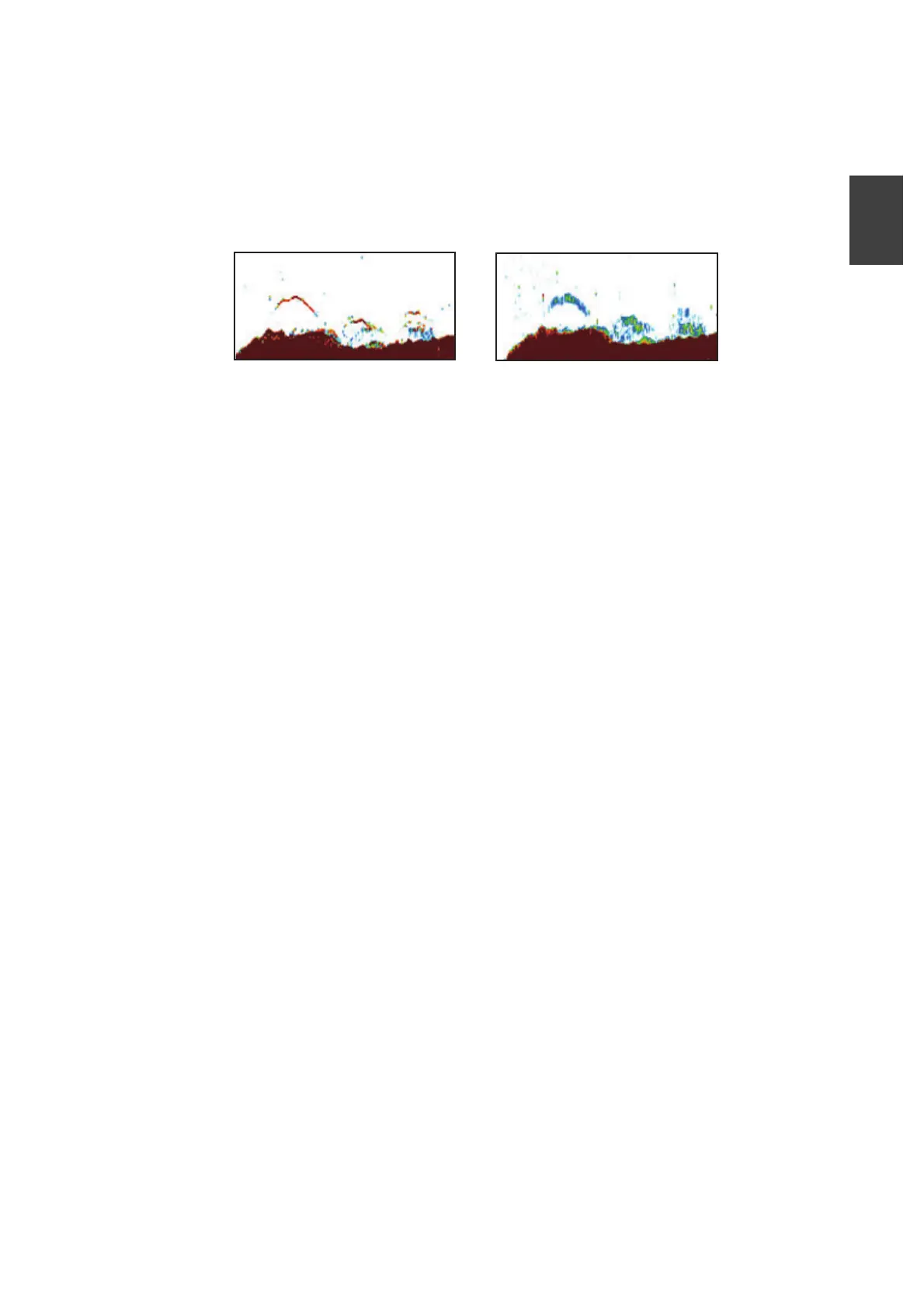

Enhanced mode
Standard mode
