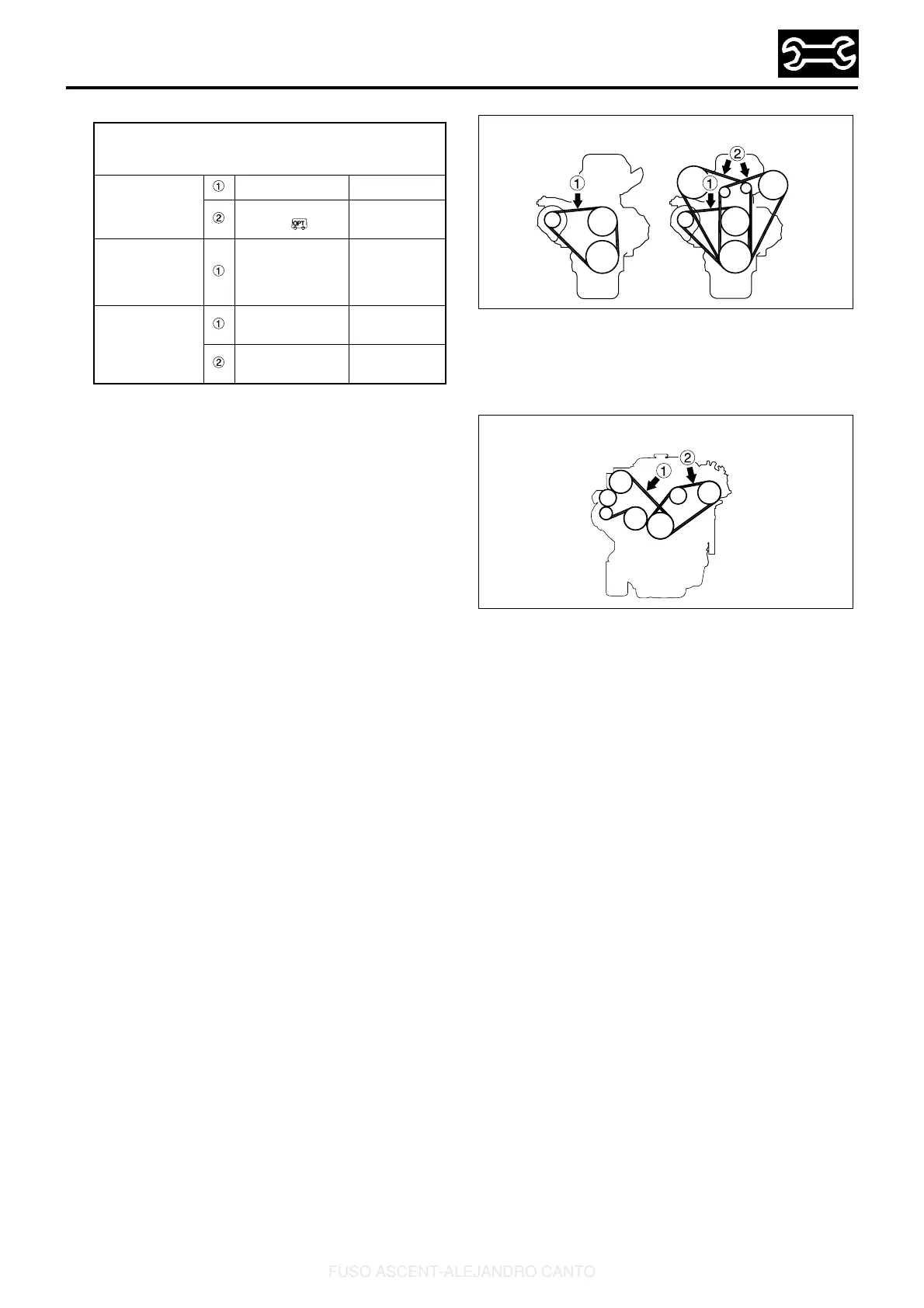

5. Inspect the belt for damages.
Tension per single belt
[Deflection when belt center is pressed at a force of
about 98 N (10 kgf)]
4D3 engine
vehicles
Fan belt 12 to 16 mm
Cooler compres-
sor belt
8 to 11 mm
4M5 engine
vehicles
<Without
cooler>
Fan belt 10 to 12 mm
4M5 engine
vehicles
<With cooler>
Fan belt
9.5 to 11.5
mm
Cooler compres-
sor belt
6 to 8 mm
T77149
<4D3 engine vehicles>
T76997
<4M5 engine vehicles>
