STEERING SYSTEM
3-53

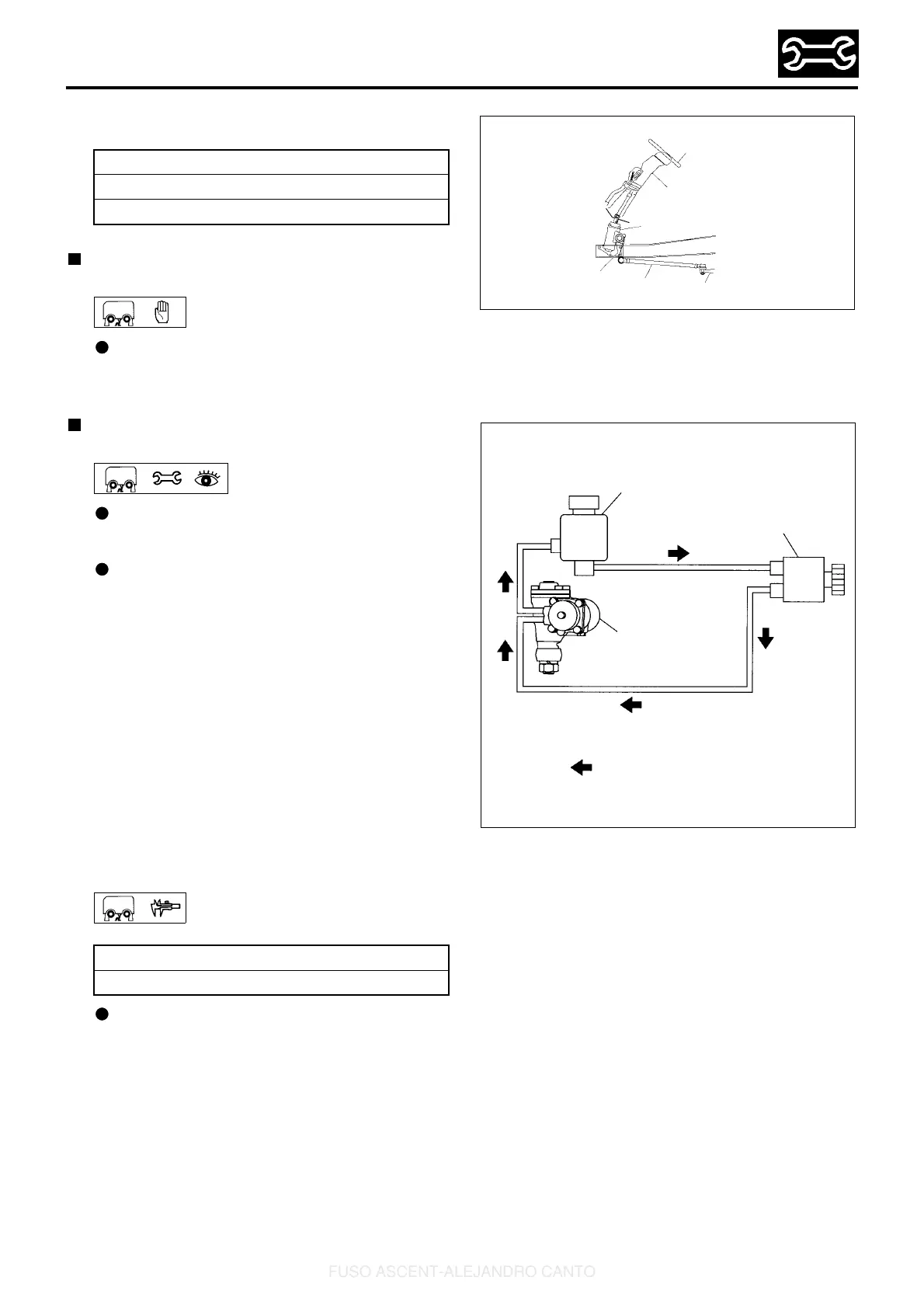

40. STEERING SYSTEM
LOOSENESS AND PLAY OF STEERING
SYSTEM
Check the steering system for looseness and
play.
FLUID LEAKAGE FROM STEERING SYS-
TEM
Check the steering gear case and power steer-
ing system for fluid leakage.
Check the power steering hoses and pipes for
looseness.
41. FRONT WHEEL ALIGNMENT
Measure the toe-in, camber, caster and king pin
inclination angle to check for conformance with
the standard values.
Note: The front suspension, steering system and
wheels should be serviced to normal con-
dition prior to measurement of wheel
alignment.
Inspection intervals
Every 5,000 km (3,000 miles)
NVI: 5,000 km (3,000 miles)
Inspection intervals
Every 15,000 km (9,000 miles)
Steering wheel
Steering column
Pitman arm
Drag link
Knuckle arm
Power steering gear assembly
Power steering oil tank
Power steering oil pump
Power steering gear
: Direction of oil flow
