Timer
If one of two timer displays is pushed, you will
enter the Timer screen of a Linkage menu.
In the button mode of a timer set, it can also
be made a start/stop.
A push on reset will reset a time.
②
Menu Button
• System menu • Linkage menu
⑫
Menu Button
• Model menu
⑥
Home2
A timer and Telemetry data change to Home2
screen by which it was indicated by expansion.
WARNING
Be sure to confirm the model name before flying
your aircraft.
Check the remaining battery as often as possible
and try to charge the battery regularly. If the battery
alarm sounds and its warning symbol is displayed,
land your aircraft immediately.

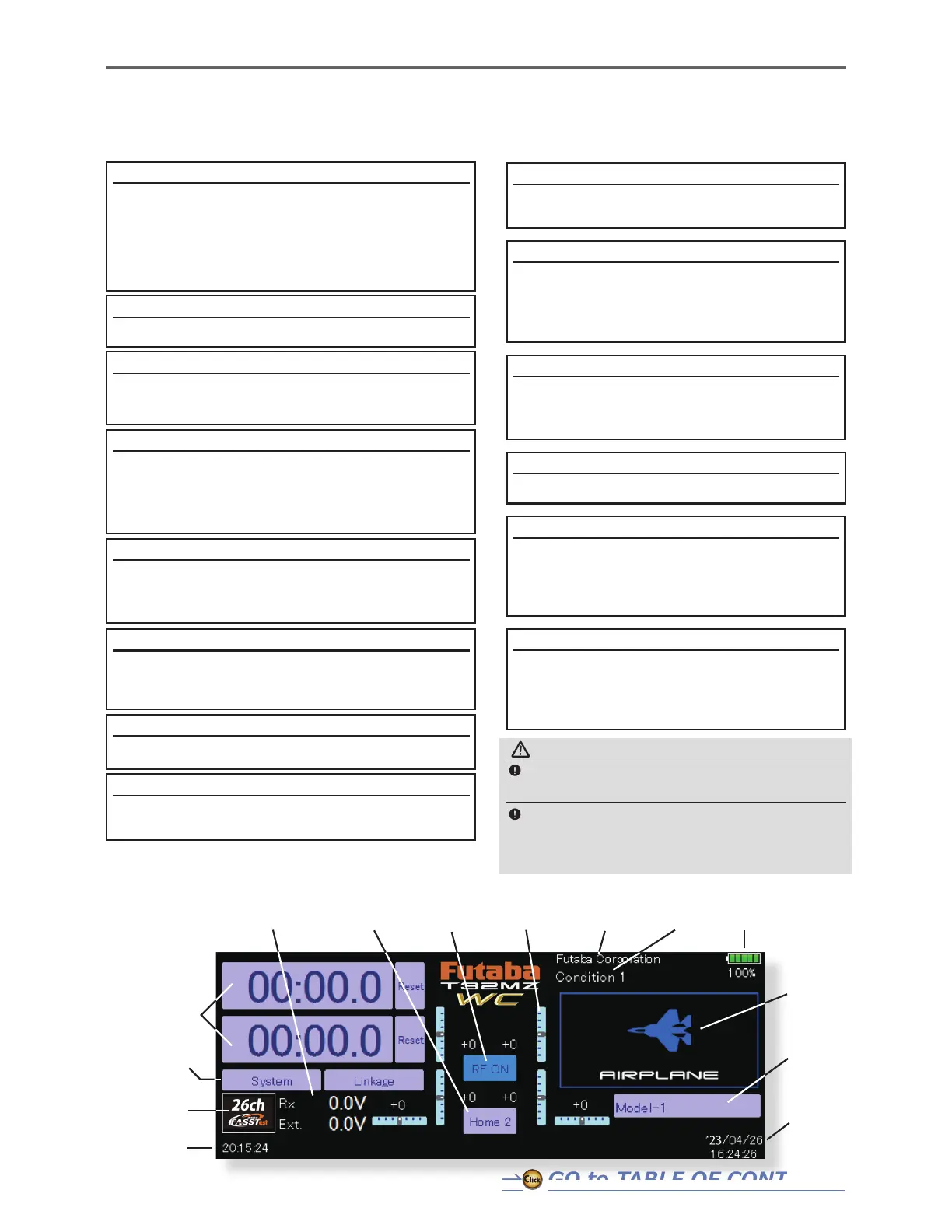

Homescreen
⑩
Condition
The condition name that is currently used is
displayed here.
• Push this area to enter the Condition
Select screen.
⑭
Clock
This shows the today's date and the current
time.
• Push this area for the Date & Time Setting
screen.
⑨
User's name
Push this area to enter the User's Name
Setting screen.
③
System Selection
•FASSTest26CH •FASSTest18CH •FASSTest12CH
•FASST MULTI •FASST 7CH •S-FHSS •T-FHSS
④
System timer/Reset
• This shows the total accumulated time used for
the transmitter. This can be reset.
(Hour):(Minute):(Second)
Push this area to reset the timer.
7KLVLVWKH+RPHVFUHHQDQGGHVFULSWLRQVRILWVPHQXV8VH\RXU¿QJHURULQFOXGHGVW\OXVSHQWRRSHUDWHWKHWRXFK
screen.
⑪
Battery Indicator
•When the remaining battery reaches 10%,
the alarm will beep. Land your aircraft
immediately.
⑦
RF Indicator
"ON AIR" or "RF OFF"
⑧
Digital trim (T1 to T6)
Push this area to enter the Dial Monitor screen.
⑬
Model Name
The model name that is currently used is
displayed here.
• Push this area to enter the Model Select
screen.
⑤
Voltage of Rx/Ext battery
Information from the receiver is displayed
when using a bidirectional system.
FASSTest/T-FHSS Only.
⑫
⑬
⑭
①
②
③
④
⑤⑥⑦⑧⑨⑩⑪
*Please note that the screens in this manual may differ slightly from the
actual transmitter.
To Next Page
