FUTABA 32MZ-WC User Manual

33
ڀ ŪŲŃƗƒŃŷŤťůŨŃŲũŃŦŲűŷŨűŷŶ

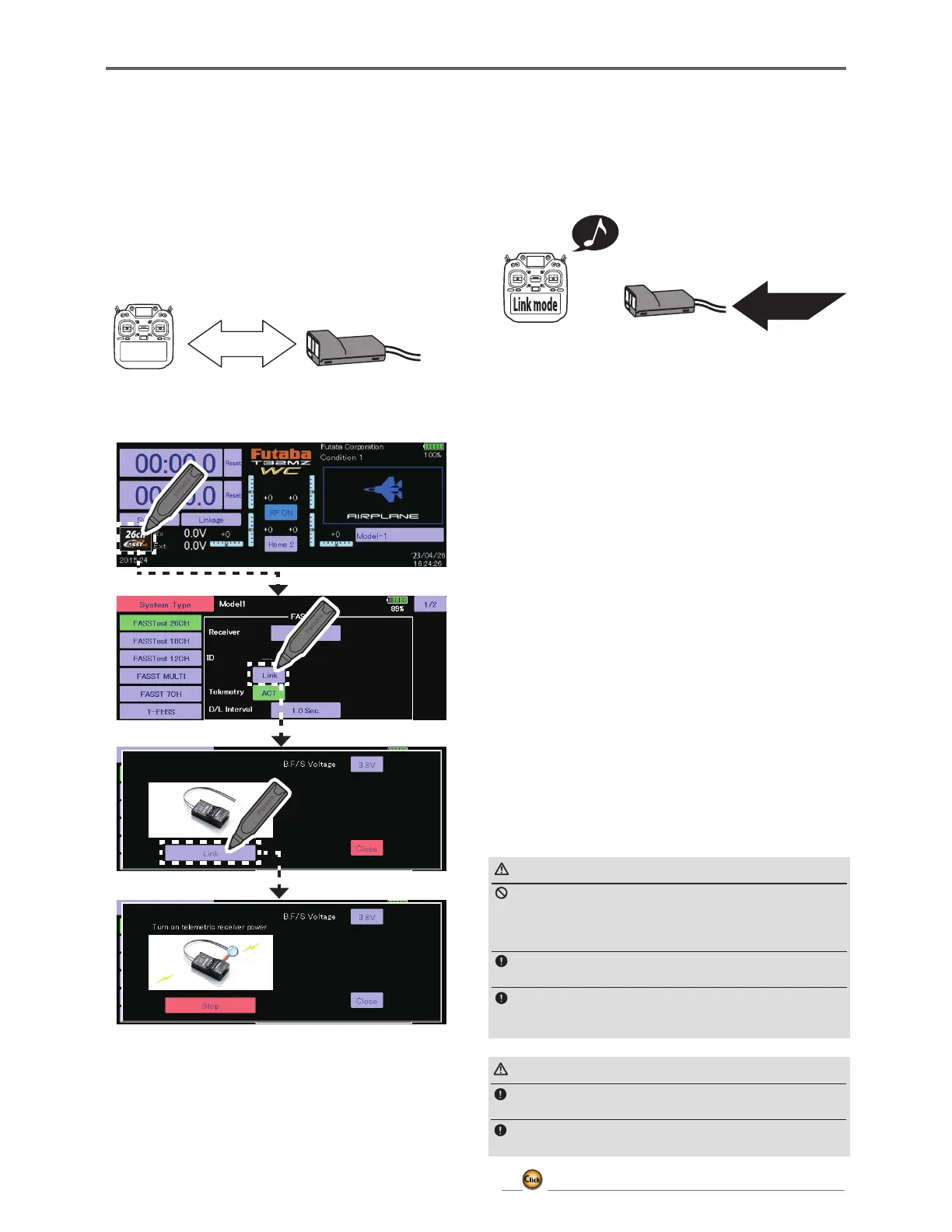

Linkprocedure(T32MZ-WC ↔ R7208SB)
(DFKWUDQVPLWWHUDQGHDFKPRGHOGDWDKDVDQLQGLYLGXDOO\DVVLJQHGXQLTXH,'FRGH,QRUGHUWRVWDUWRSHUDWLRQWKH
UHFHLYHUPXVWEHOLQNHGZLWKWKH,'FRGHRIWKHWUDQVPLWWHUWRZKLFKLWLVEHLQJSDLUHG2QFHWKHOLQNLVPDGHWKH
,'FRGHLVVWRUHGLQWKHUHFHLYHUDQGQRIXUWKHUOLQNLQJLVQHFHVVDU\XQOHVVWKHUHFHLYHULVWREHXVHGZLWKDQRWKHU
WUDQVPLWWHU:KHQ\RXSXUFKDVHDGGLWLRQDO56%UHFHLYHUVDQGZKHQDGGLQJQHZPRGHOGDWDWKLVSURFHGXUHLV
QHFHVVDU\RWKHUZLVHWKHUHFHLYHUZLOOQRWZRUN
WARNING
Donotperformthelinkingoperationwhenthedrivemotor
isconnectedandtheenginewasstarted.
■ Inadvertentrotationofthemotororaccelerationoftheengineis
extremelydangerous.
Oncethelinkoperationiscomplete,pleasecheckthatyour
receivercanbeoperatedwiththelinkedtransmitter.
Checkoperationsufficientlybeforeflyingafterlinking.
■ Ifthesamereceiverissendinginthevicinity,thereisthedangerthatthe
transmittermaybelinkedwiththatreceiver.
CAUTION
Alwaysturnonthetransmitterpowerafterlinkingiscom-
plete.
Whenpairingwiththetransmitter,besurethatapreviously
linkedtransmitterisnottransmitting.
Linkingmethod(T32MZ-WC ↔ R7208SB)
1. Bring the receiver to be linked to within 50 cm of
the transmitter.
5. If linking is successful, the receiver LED changes
from red to green, the link mode ends, and the
receiver ID code is displayed.
6. If linking fails, an error message is displayed. Bring
the transmitter closer to the receiver and repeat
the procedure above from step 2.
4. The receiver power is immediately turned on.
About 2 seconds after the power is turned on the
receiver enters the linking state.
(Receiver linking time is about 1 second).
3. The transmitter emits a chime sound and enters the
link mode.
2. Transmitter in link mode.
* Do not perform the linking operation when
the drive motor is connected or the engine is
running.
* When you use two receivers, please be sure to
setup a "primary" and "secondary" in the "dual"
mode.
* Since two sets of receivers cannot be
individually recognized without using a "primary"
and "secondary" setup, it is impossible to receive
telemetry data correctly.
* You must link one receiver at a time. If both
power supplies to the receivers are switched on
simultaneously, data is received incorrectly by
the transmitter.
* A telemetry function cannot be used for the 2nd
receiver.
*Only FASSTest26CH can be linked with 3 receivers.
In that case, select "Triple".
* Link is required when a system type is changed.
* Link is required when a new model is made from
a model selection.
Within50cm
HOMEScreen
RxON
Linkmode
