FUTABA 32MZ-WC User Manual

42
＜

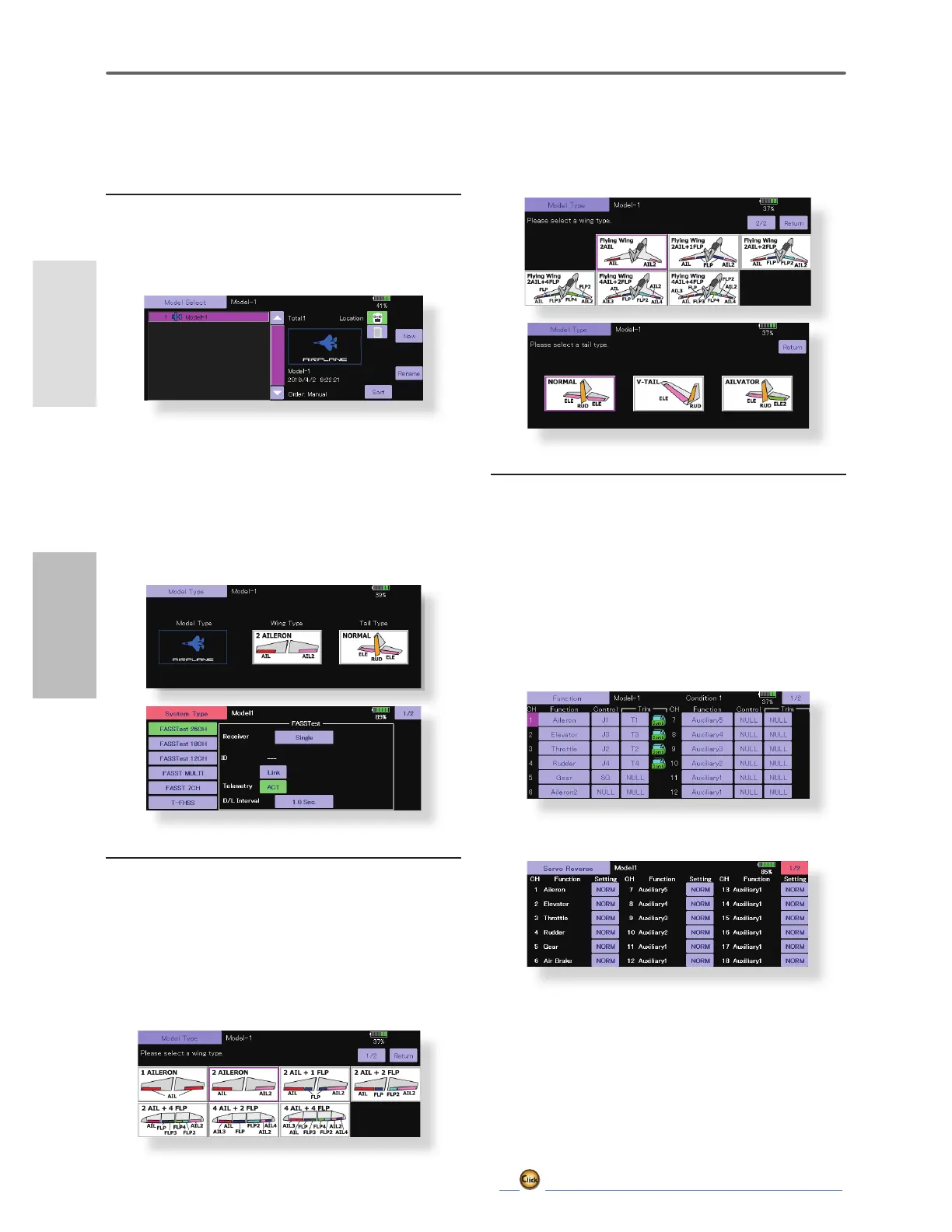

Model Basic Setting Procedure
＞
ڀ ŪŲŃƗƒŃŷŤťůŨŃŲũŃŦŲűŷŨűŷŶ
02'(/%$6,&6(77,1*352&('85(
1. Model addition and call
Default settings assign one model to the T32MZ-WC
transmitter. To add new models or select previously setup
models, use the Model Select function in the Linkage Menu.
When a new model is added, relink with the receiver used in
that model.
This is convenient when calling a model after its name has
been registered.
The currently selected model name is displayed at the top
RIWKHVFUHHQ%HIRUHÀ\LQJDQGEHIRUHFKDQJLQJDQ\VHWWLQJV
DOZD\VFRQ¿UPWKHPRGHOQDPH
When a new model is added, the model type select screen/
system type/receiver link automatically appears. Please be aware
that the transmitter will stop transmitting when you change the
model.
2. Model type selection
Select the model type matched to the fuselage with the Model
Type select function of the Linkage Menu. For an airplane,
select the model type from among the 3 types: airplane, glider,
and motor glider. When the wing type select screen is displayed
and the wing type is selected when selecting the model type, the
tail type select screen is displayed. Select the tail type matched
to the fuselage.
There are 13 wing types and 3 tail types for airplane, glider,
and motor glider.
$LUSODQHJOLGHUEDVLFVHWWLQJSURFHGXUH
3. Airplane linkage
Link the ailerons, elevators, throttle, rudder, etc. in
accordance with the model's instruction manual. For a
description of the connection method, see the receiver and
servos connection.
Note: The channel assignment of the T32MZ-WC
is different from that of our existing systems. Note
that even for the same "airplane model", when the
wing type and tail type are different, the channel
assignment has been optimized and may be
different. (The channel assigned to each function
can be checked in the Function menu of the
Linkage Menu.)
ŏ:KHQWKHGLUHFWLRQRIWKHOLQNDJHLVUHYHUVHGDGMXVW
the direction with the Servo Reverse function in the
Linkage Menu.
ŏ&RQQHFWWKHWKURWWOHOLQNDJHVRWKHFDUEXUHWRULVRSHQ
at full trim and full open so that the throttle can be
cut.
ŏ$GMXVWWKHQHXWUDOSRVLWLRQDQGUXGGHUDQJOHZLWKWKH
linkage, and fine tune them with the Sub Trim and
(QG3RLQWIXQFWLRQVUXGGHUDQJOHDGMXVWPHQW7R
protect the linkage, a limit position can also be set
with the End Point function. The End Point function
FDQDGMXVWWKHDPRXQWRIXSGRZQDQGOHIWULJKW
movement, limit, and servo speed of each channel.
$,53/$1(
*/,'(5
