5 Ports and Cables
Introduction
This chapter describes the interface connectors and port pin-outs for the printer. For complete
electrical specifications on these ports, refer to Appendix A in the Developers Manual (MNL-000033)
for the power connector.
Note: While PSA-66-ST2 refers to all models of the printer, this manual is primarily for the
RS232/USB interface of the GEN2 Universal printer.
Front Bezel Port

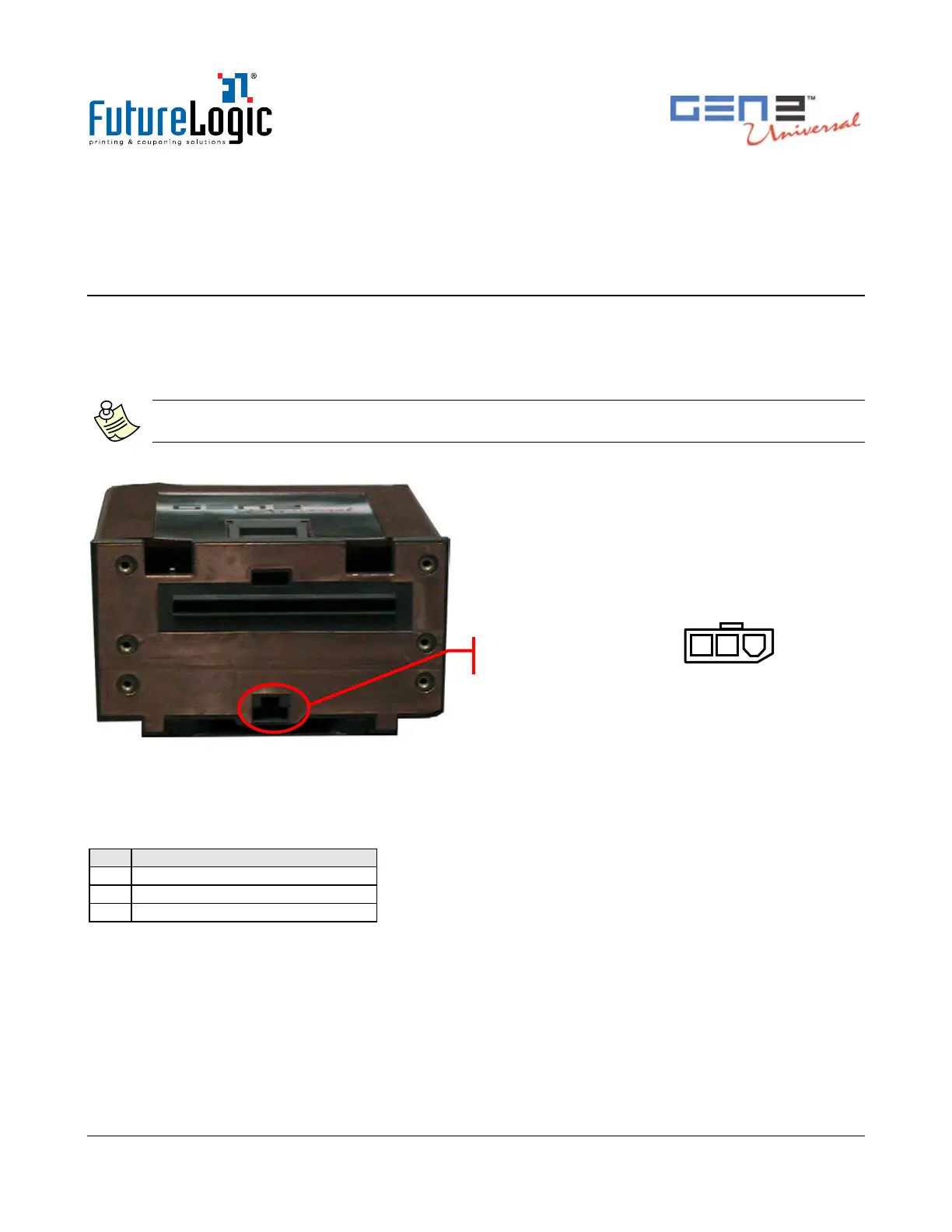

Figure 5-1 Front Bezel LED Control Port
Table 5-1 lists information on the LED bezel port on the printer. This is an open drain modulated
high side drive 25VDC port capable of driving up to a maximum 1.5A.
Table 5-1 Front Bezel LED Control Port Pin-outs
Pin
Function
1
Switched 25VDC, 100mA Min
2
BGND
3
Frame (Chassis) Ground
Connector: Molex Micro-Fit 43640-0301
Mate: Molex Micro-Fit 43645-0300
Bezel LED Control Port
1
2
3
