FutureLogic Gen2 Universal PSA-66-ST2RU - Base Port Cable Pin-outs; RS232 Power;COMM Port Pin-outs; USB Port (Series A) Pin-outs; Bezel LED Control Port Pin-outs

Operators and Technicians Manual
 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 14 04/29/2013
MNL-000032 REV.D

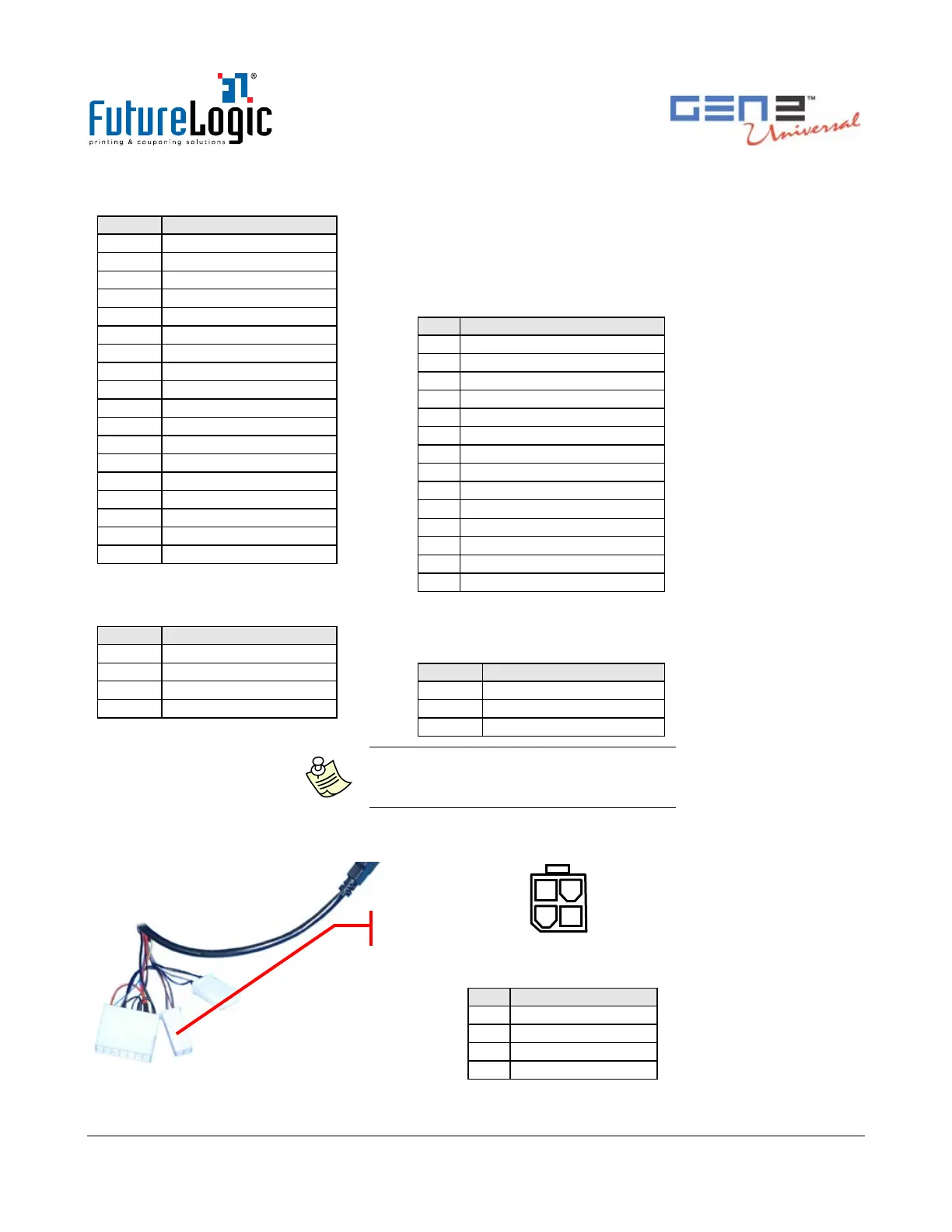

Table 5-2 Base Port Cable Pin-outs
Table 5-3 RS232 Power/COMM Port Pin-outs
Table 5-4 USB Port (Series A) Pin-outs
Table 5-5 Bezel LED Control Port Pin-outs
As a special order, the GEN2 Universal RS232 Interface Cable also is available with an auxiliary
communication port. Please contact FutureLogic for details.
Figure 5-3 RS232/USB Interface Cable, Auxiliary Communications
Pin
Function
1
MRESET
2
Netplex TXD
3
+12 VDC (RS232 optional)
4
Netplex RXD
5
GND
6
+24 VDC
7
GND
8
+24 VDC
9
Modulated +24VDC
10
GND
11
RS232 RXD
12
RS232 TXD
13
DTR
14
RTS
Pin
Function
1
RAW BGND
2
D-
3
+13V
4
SWITCHED 24V
5
DTR 232
6
MRESET
7
D+
8
RAW 24V
9
RTS 232
10
RX2/SCL
11
TX2/SDA
12
RX1/232
13
TX1 232
14
TX1 NET
15
RX1 NET
16
OPTO GND
17
DGND
18
+9 – 14V
Pin
Function
1
USB BUS SUPPLY
2
D-
3
D+
4
GND
Pin
Function
1
SWITCHED 24V
2
NO CONNECT
3
GND
1
3
2
4
Connector: Molex Mini-Fit Jr. 39-01-3049
Mate: Molex Mini-Fit Jr. 39-01-3042
Auxiliary COMM Port
Pin
Function
1
GND
2
RX2
3
TX2
4
no connect
Note: For Bezel LED Port on cable, no
Intermitted or in rush current exceeding
1.5A is allowed.
