Operators and Technicians Manual

MNL-000032 REV.D

Appendix B Paper Specifications

This appendix provides information on the paper used in the printer. For authorized ticket converters

and complete paper specifications, contact your sales representative or visit our Web site:

www.futurelogic-inc.com

Note: Use only approved paper in the printer. Use of improper paper may cause damage to

the device and will void the printer’s warranty.

Nominal paper thickness: 4.5mil

Paper dimensions: 65mm x 156mm

Ticket Stack

Ticket, 300STK, 65X156, 5M, Fanfold

Ticket, 600STK, 65X156, 5M, Fanfold

Ticket, 900STK, 65X156, 5M, Fanfold

Note: Paper width is +0mm, –1mm.

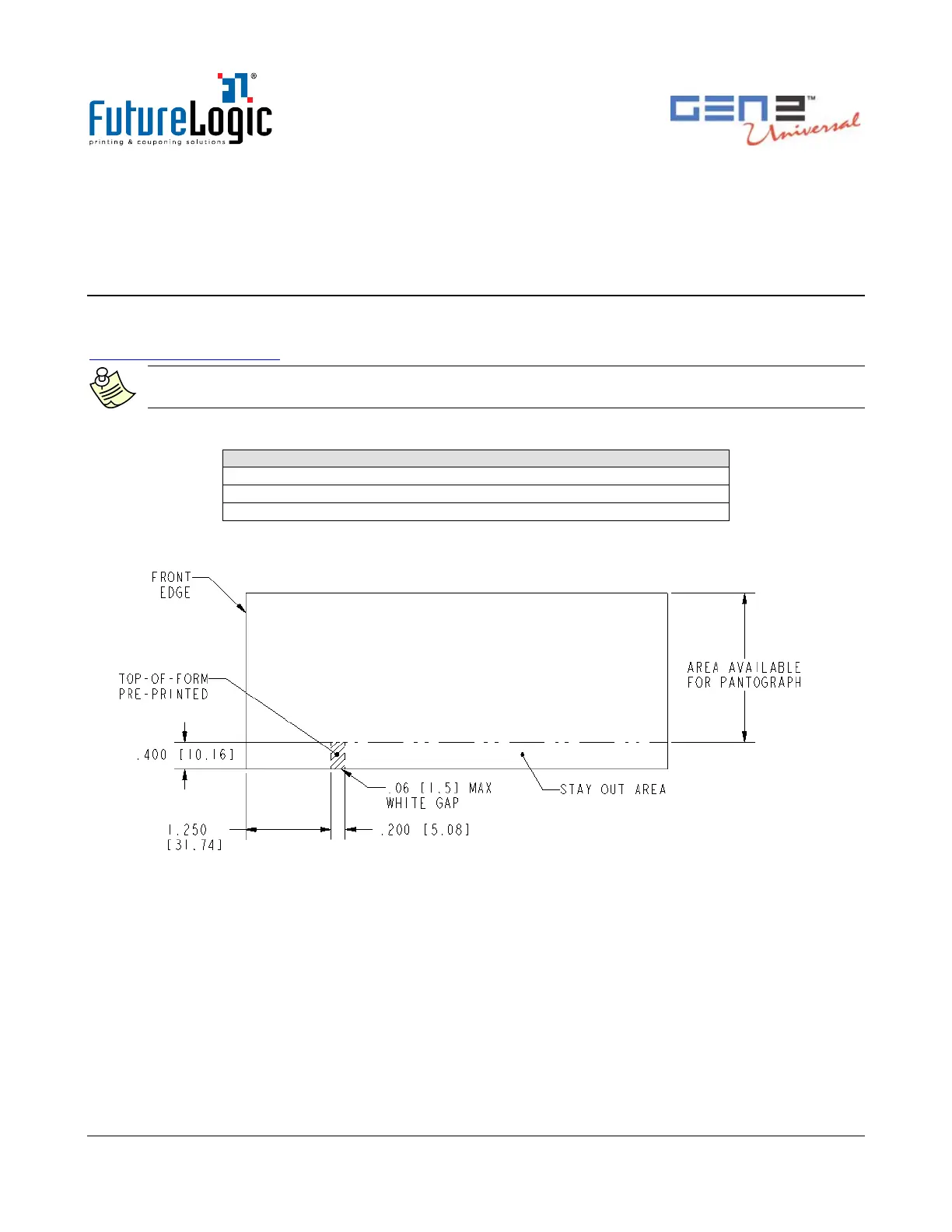

Figure B-1 Ticket Dimensional Specification
