Operators and Technicians Manual

MNL-000032 REV.D

RS232 Evaluation Cable

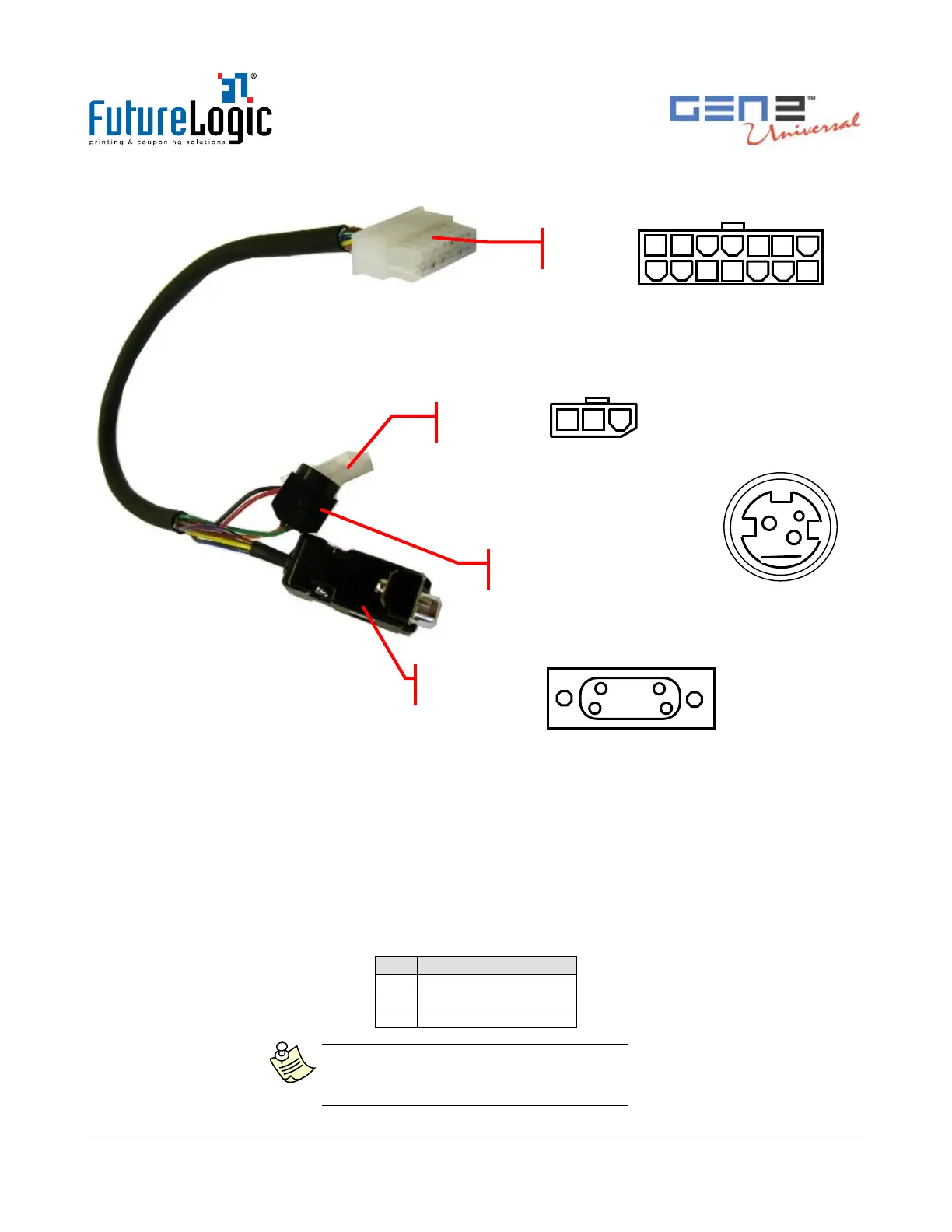

Figure 5-4 RS232 Evaluation Cable

The Bezel port on the rear of the unit is identical in function and characteristics to the one on the

front of the unit described earlier.

Table 5-6 Evaluation Cable Bezel Port Pin-outs

Function

Modulated +24VDC

No connect

GND

Base Port

Connector: Molex 39-01-4032

Mate: Molex 39-01-4030

Connector: DB-9 female

Mate: DB-9 male

Cable: standard straight pass

DB-9 to DB-9

RS232 Eval Cable 14 Pin

P/N 150-00013-100

Bezel LED Port

Power Port

DB9 RS232 Port

Connector: Molex Mini-Fit Jr. 39-01-3149

Mate: Molex Mini-Fit Jr. 39-01-2140

shield ring - 4

Connector: Kycon KPJ-3S-S

Mate: Kycon KPP-3S-S

Note:

For Bezel LED Port on cable, no

Intermitted or in rush current exceeding

1.5A is allowed.
