Operators and Technicians Manual

MNL-000032 REV.D

RS232/USB Interface Cable

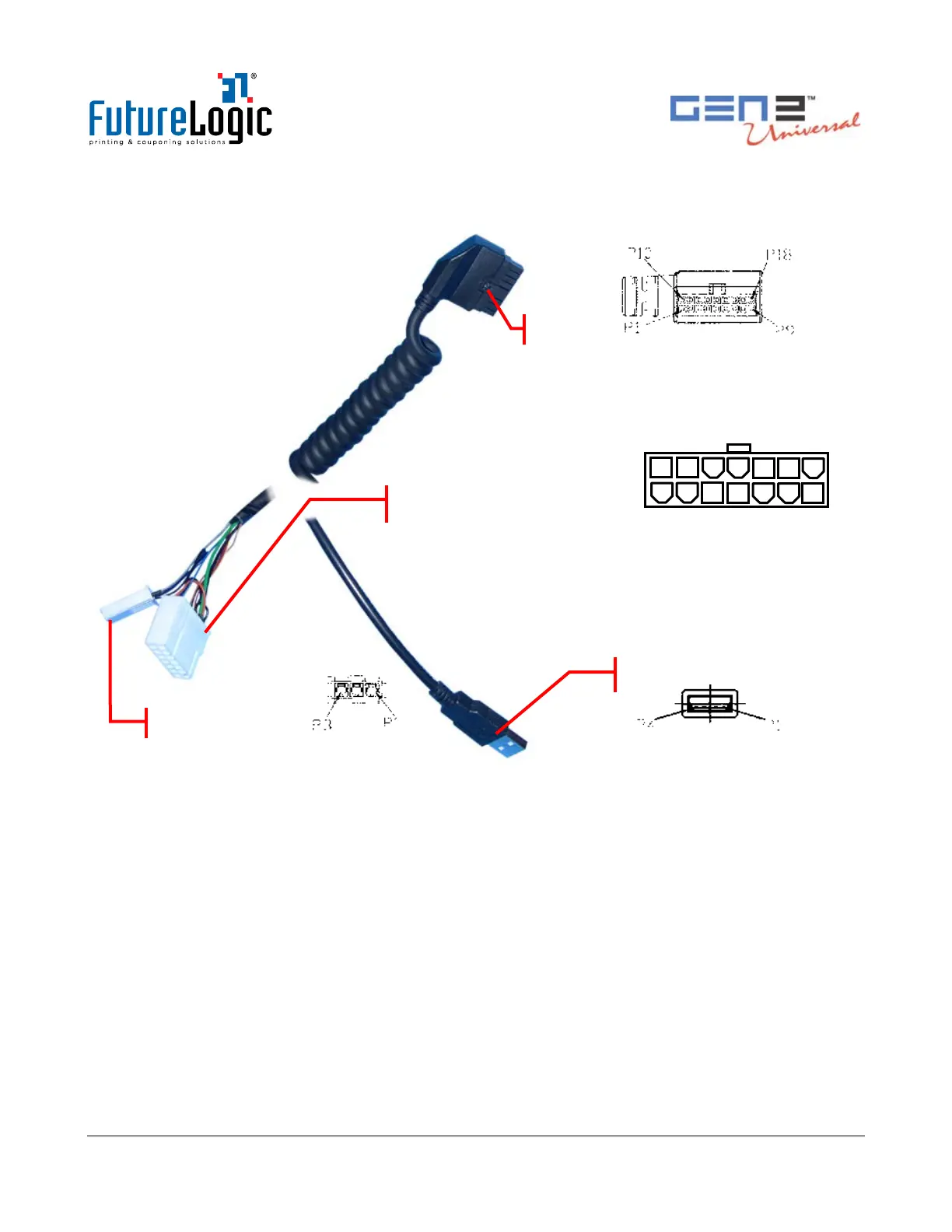

Figure 5-2 RS232/USB Interface Cable

RS232/USB 14 Pin Cable P/N 150-00176-100

Connector: Molex Mini-Fit Jr. 39-01-3149

Mate: Molex Mini-Fit Jr. 39-01-2140

Base Port

Connector: Molex 43025-1800

Mate: Molex 43045-1812

Bezel LED Control Port

Connector: Molex Mini-Fit Jr. 39-01-4037

Mate: Molex Mini-Fit Jr. 39-01-4031

USB Port (Series A)

RS232 Power/COMM Port – 14 Pin
