MIC TRAC Operation Manual Model MT-3000
Copyright © 2014 Gagemaker. All rights reserved
9

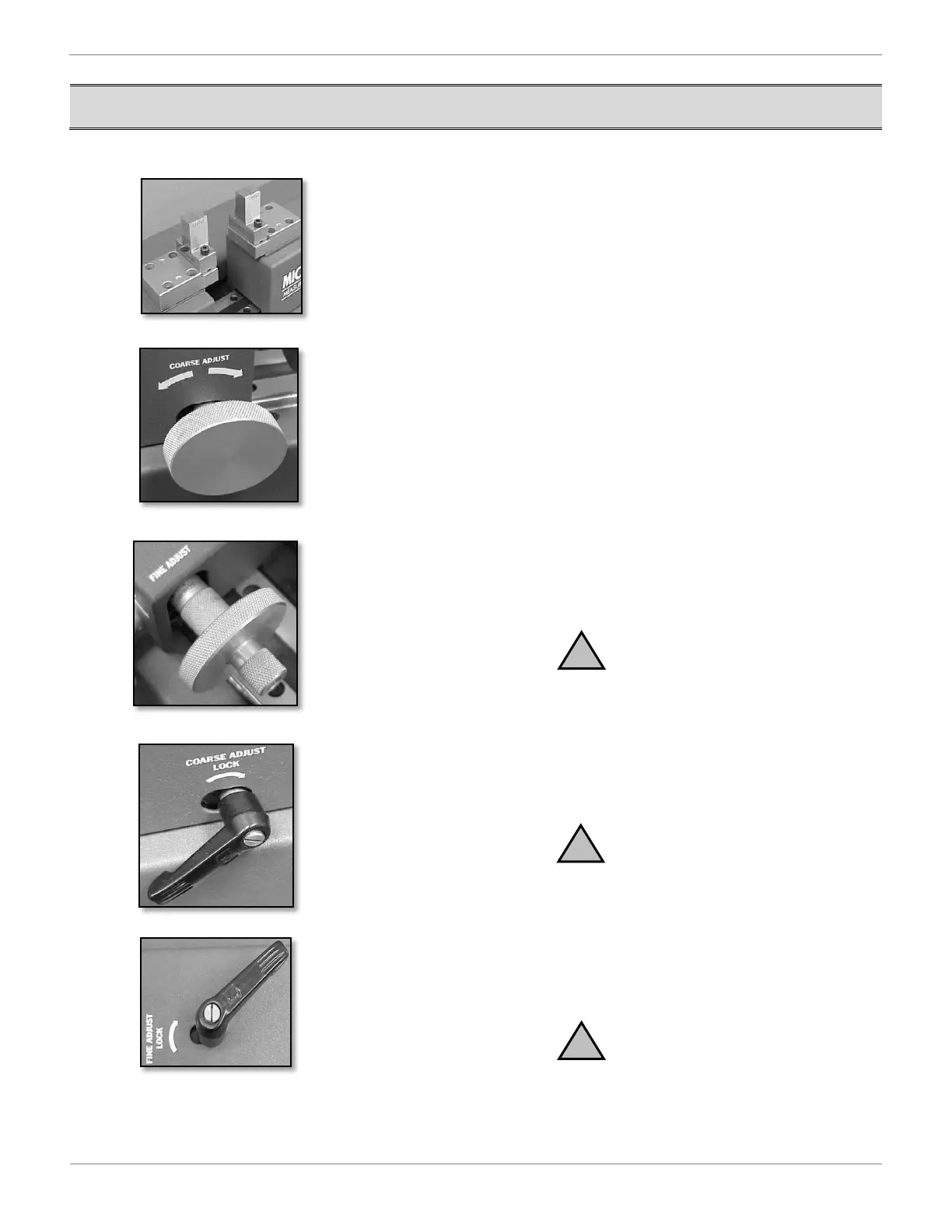

MIC TRAC Part Descriptions
Receiver Pads
Located on the right and left carriages
and are used to hold fixtures, such as the
flat face anvils (TF-1F blocks). The
receiver pads are ground in matched sets
so the mounting surfaces are flat and
parallel.
Coarse Adjust Knob
Moves the movable carriage and is used
for quick positioning.
Fine Adjust Knob
Used for moving the right receiver pad in
small increments and allows for close
positioning.
Do not over-travel the Fine
Adjust knob. The load cell will
be damaged if the knob is
turned after reaching the end
of the travel.
Coarse Adjust Lock
Secures the movable carriage during
measurement.
Do not attempt to turn the
coarse adjust knob when the
lock is secured.
Fine Adjust Lock
Secures the right receiver pad during
measurement.
Do not attempt to turn the fine
adjust knob when the lock is
secured.
!
!
!
