Mounting the Flat Face Anvils (TF-1F Blocks)
Materials Needed:
¾ MIC TRAC MT-3000 base unit
¾ 50 in/lb torque wrench
¾
Flat face anvils (TF-1F Blocks)
¾
¾ 5/32" hex wrench
¾ Lint-free cloth
¾ 4 ea #10-32 socket head cap screws w/ washers
The flat face anvils are mounted on the receiver pads of the MT-3000 to provide a measuring surface. To
ensure a precise surface for measuring, the anvil ends are lapped parallel.

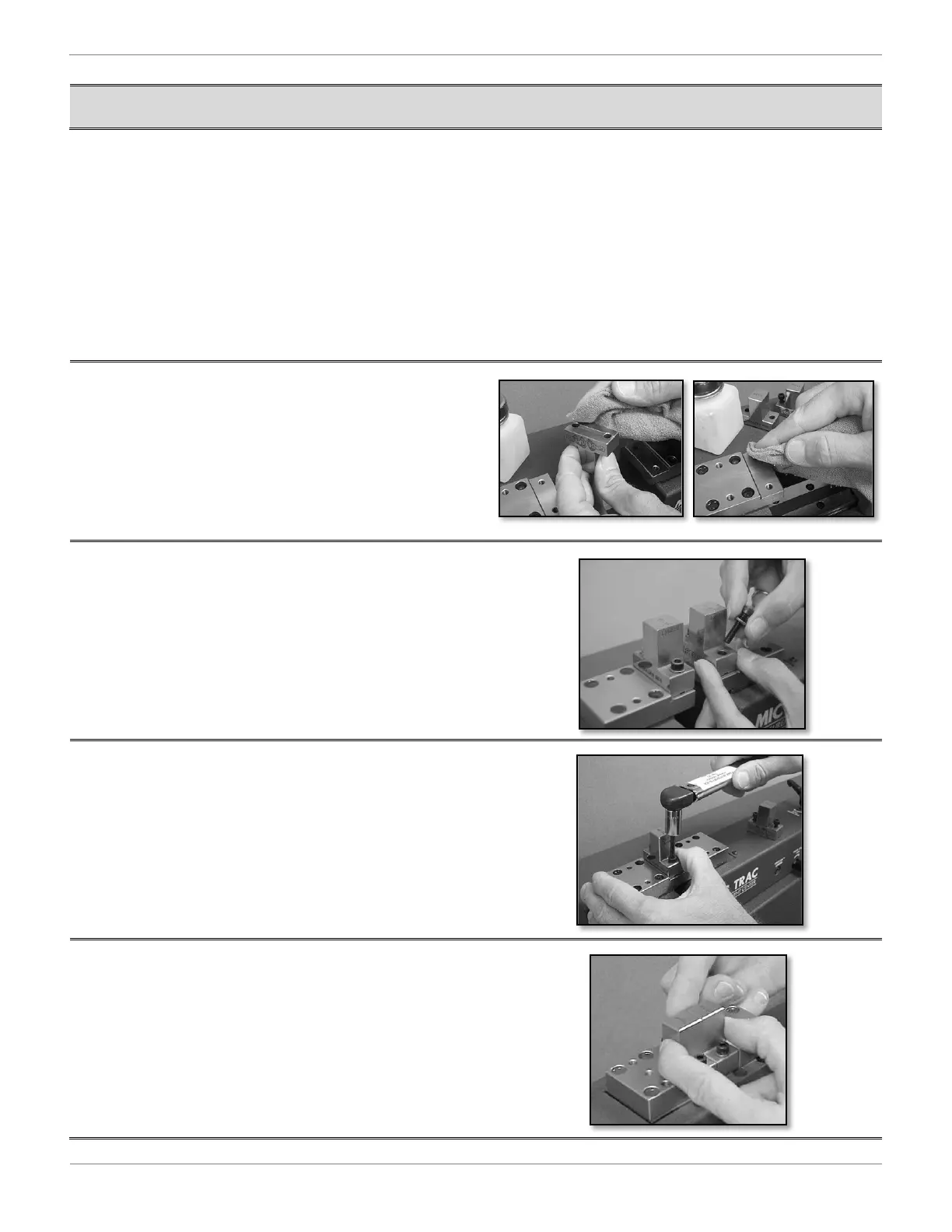

1. Clean both of the receiver pads and the
mounting surfaces of the flat face anvils using
the lint free cloth and ZEP I.D. Red cleaner.
2. Place the shoulder side of the left anvil against
the receiver pad shoulder and insert the cap
screws. “Wring In” the anvil by sliding it back
and forth with pressure towards the shoulder.
3. Hold the anvil against the receiver pad
shoulder and use a 5/32" hex wrench to tighten
the screws.
4. Use a 50 in/lb torque wrench to secure the cap
screws.
5. Repeat the same process with the right flat
face anvil.
6. Alignment and parallelism may be verified by
measuring a precision contact ball at various
locations about the face of the anvil.
