Operating Procedures
Measuring Parts with Force-Lok
Materials Needed:
¾
MIC TRAC MT-3000 base unit
¾
Flat face anvils mounted (TF-1F Blocks)
¾ Digital readout ¾ Serinter Model DPU-411 (optional)

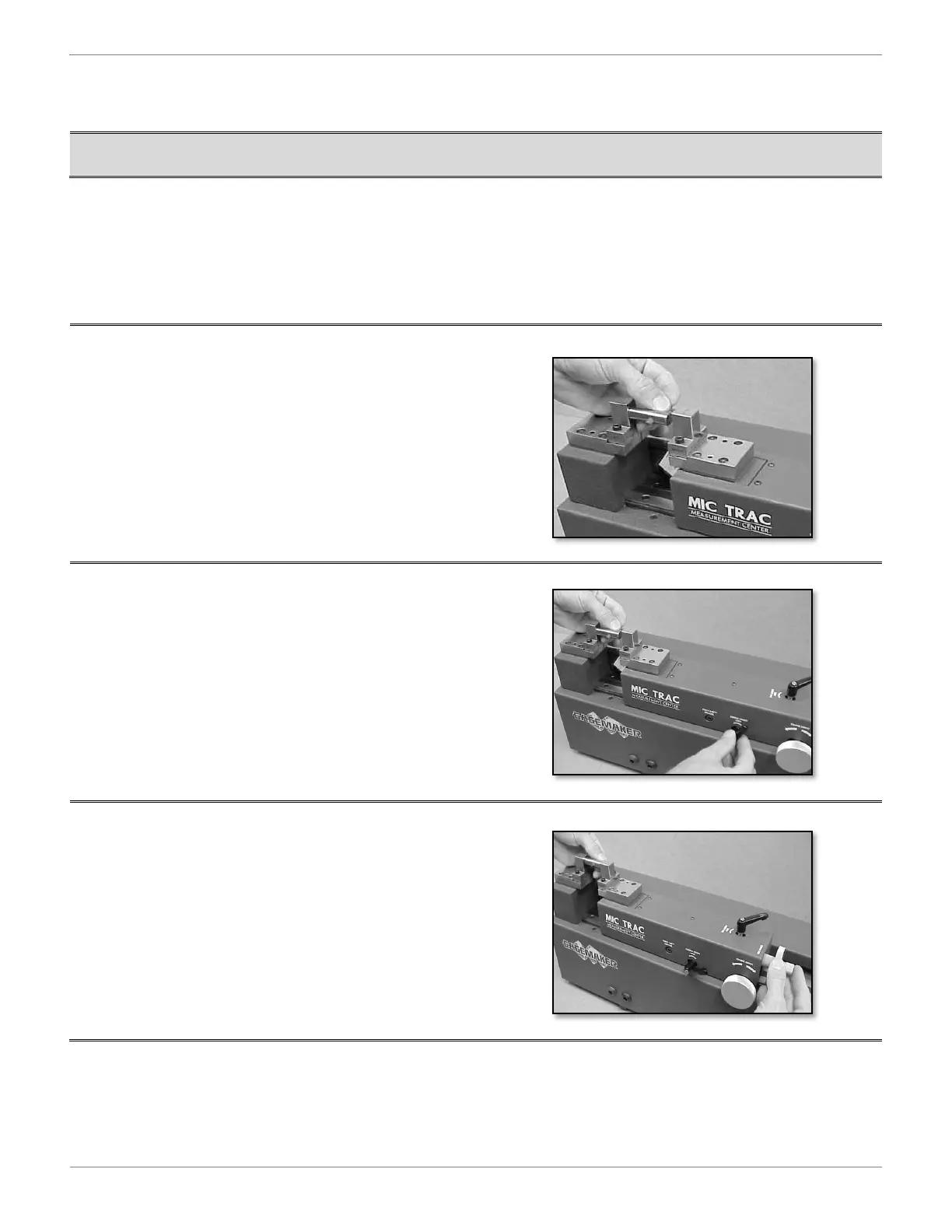

1. Hold the part to be measured between the flat
face anvils and against the fixed block.
2. While continuing to hold the part, turn the
coarse adjust knob slowly to bring the right flat
face anvil within 1/16" of the part. Tighten the
coarse adjust lock.
3. Still holding the part, turn the fine adjust knob
until the right flat face anvil makes contact with
the part and the light on the DRO turns on.
