Connections for data transmission and power supply
Transmission: Connect the category 5e (or better) twisted pair cable, which is availa-
ble as accessories, to this interface. Connect the other end of the cable to the respec-
tive interface of the computer module.
Power: Insert the supplied PowerCable-2 Standard IEC cable.
Red. Power: The Power-Set 12/Type 2 power pack can optionally be connected using
this plug. Through this, a second, redundant power supply of the user module is
achieved.
Additional interfaces of the multi-channel variants
Transmission x: Connect the category 5e (or better) twisted pair cable, which is avail-
able as accessories, to this interface. Connect the other end of the cable to the respec-
tive interface of the computer module.
DVI/VGA Out x: Connect the monitor of the console to this interface.
If the monitor only provides an analog VGA input, connect the DVI-I-HD15F adapter
to this interface. Afterwards, connect the monitor’s VGA cable to the adapter.

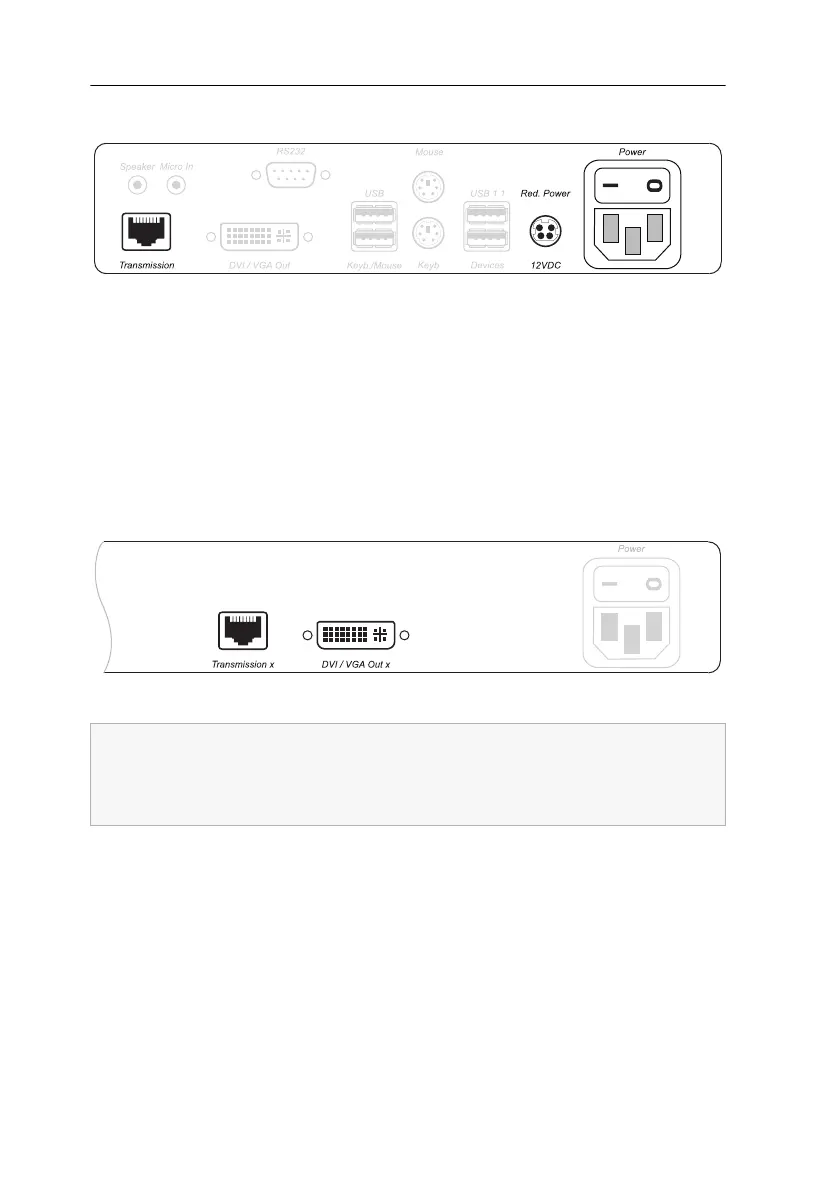

Figure 6: Interfaces for data transmission and power supply
Figure 7: Additional interfaces of the multi-channel variants at the user module
For each additional video channel, the multi-channel variants of the user module are
additionally provided with the interfaces Transmission and DVI/VGA
Out.
The interfaces of each channel are located next to each other. The interfaces are
provided with the numbers of the channels.
