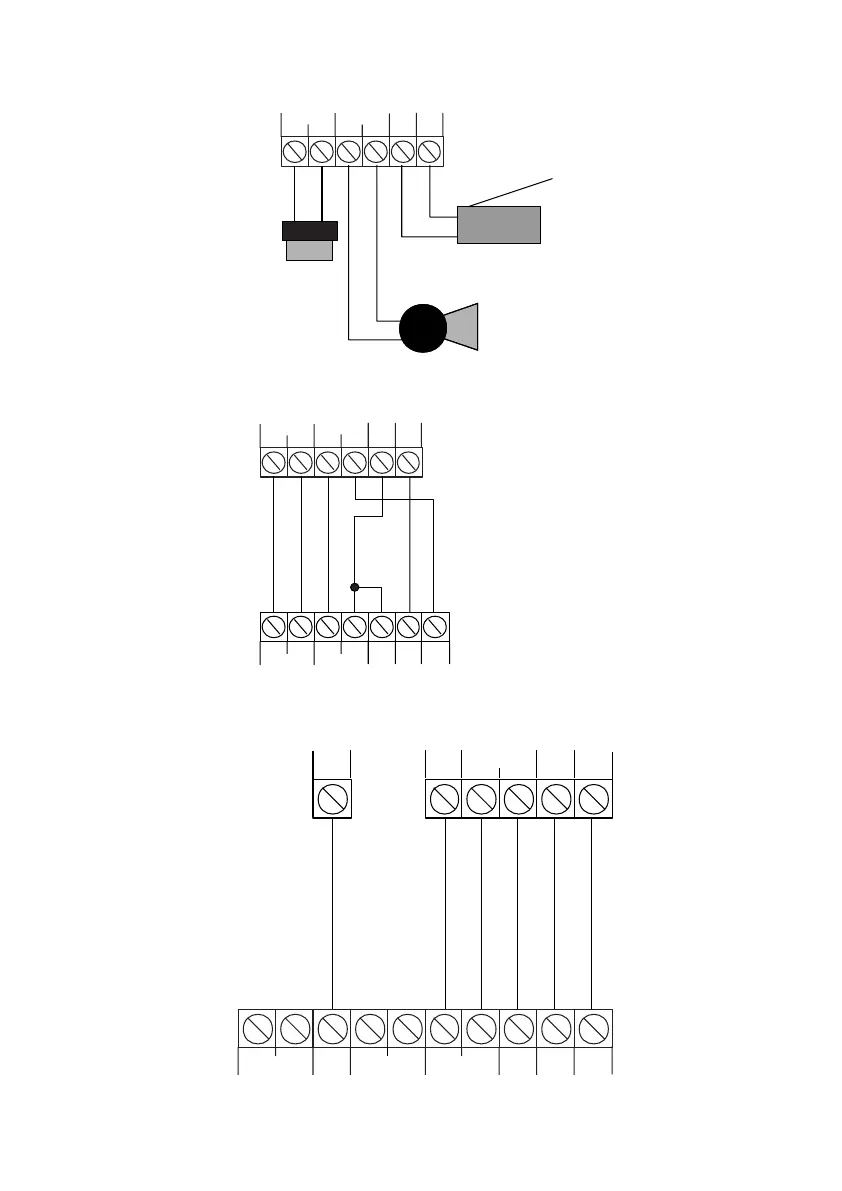

Fig. 19 Traditional bell box wiring.
Fig. 20 Novagard wiring
Fig. 21a Novagard X wiring
Note: Terminal positions changed for clarity
STROBE
+ -
BELL
+ -
BELL
HOLD-
SAB
TMP
N/C Microswitch
Siren/Bell
Strobe Light
Gardtec
800 Series
STROBE
+ -
BELL
+ -
BELL
HOLD-
SAB
TMP
Gardtec
800 Series
+ -
STROBE
+ -
SUPPLY
F
TAMP
FEED
BELL
SW-
R
TAMP
RET
Program panel
for Bell Tamper
Ring
NOVAGARD
1E, 2+T, 2D,
3, 3PD, 3PC, 3A, 3B,
3C, 4, 4B, 4D, 4Q
& Encapsulated SAB/Strobe
Note: Terminal positions may change dependent on model.
+ - R T1 T2 0V +12V S- SET+ STR
BATTERY TMP REAR 12V BELL SW-
RET TAMPER SUPPLY SW-
SAB BELL BELL LATCH STROBE
TMP HOLD- + - SW+ -
