Page 35

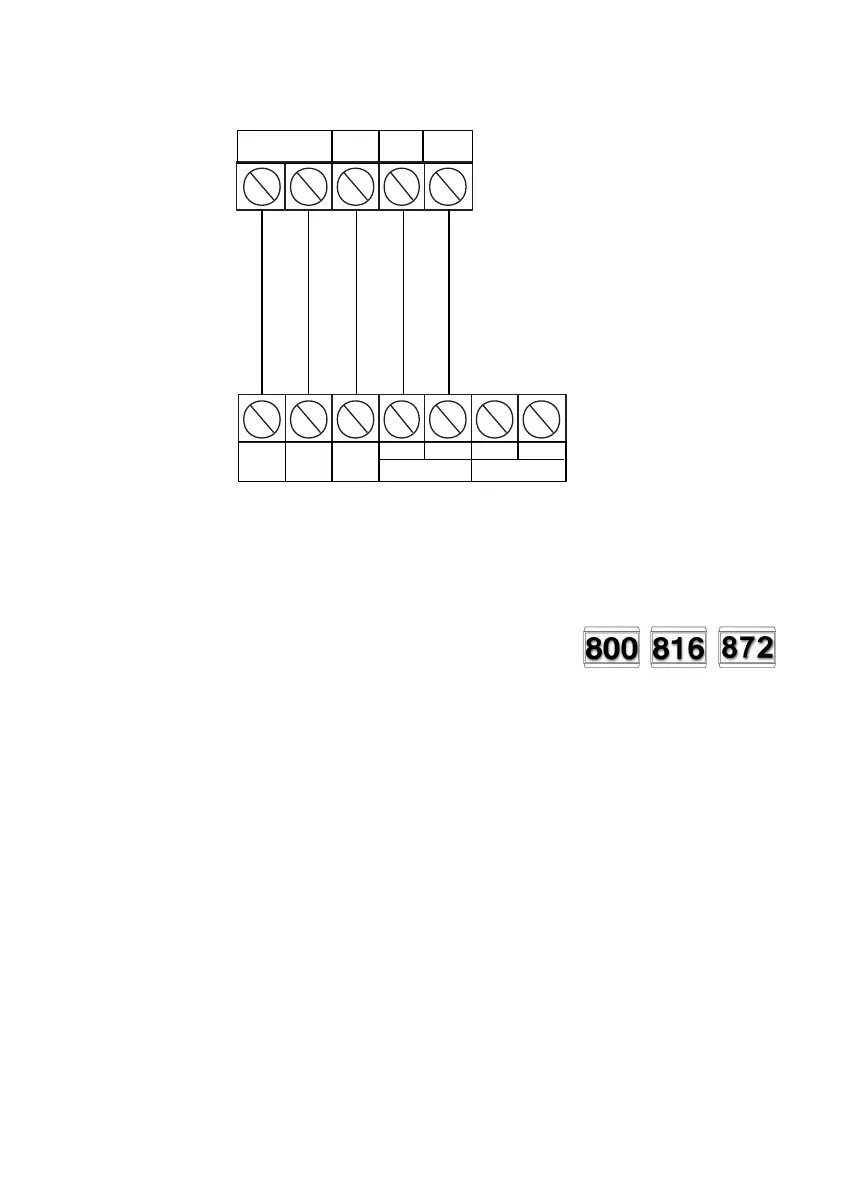

Fig. 21b Novagard Delta & Novagard Metal wiring.
Note: Terminal positions changed for clarity
Zone Connections - 8(4 Wire option)
Three zone wiring modes are available depending on standard selected on power up.
(BS, EN2, EN3).
To use the 4 wire option the control panel should be programmed for 8 (4 WIRE)
in the programming section 'PROGRAM ZONE WIRING' (option No.50).
Each zone is fully programmable. Details of the zone options available are given in the
section 'Programmable Options Description'. Each alarm zone is marked as AZx and is
a positive loop, each tamper zone is marked as TZx and is a negative loop.
If pressure pads or other normally open devices, are to be used the AZ zone should be
shorted to the TZ zone by the device in order to activate the AZ zone.
Typical wiring of various detectors is given in Fig. 22
STR TMPR BELL 12V 0V BAT- BAT+
SW- SW- SUPPLY BATTERY
STROBE SAB BELL BELL BELL
TMP - + HOLD-
PR5892 Rev11 800 Series Eng Ref 15.qxd 16/11/2006 11:20 Page 35
