Garmin ECHOMAP UHD2 User Manual

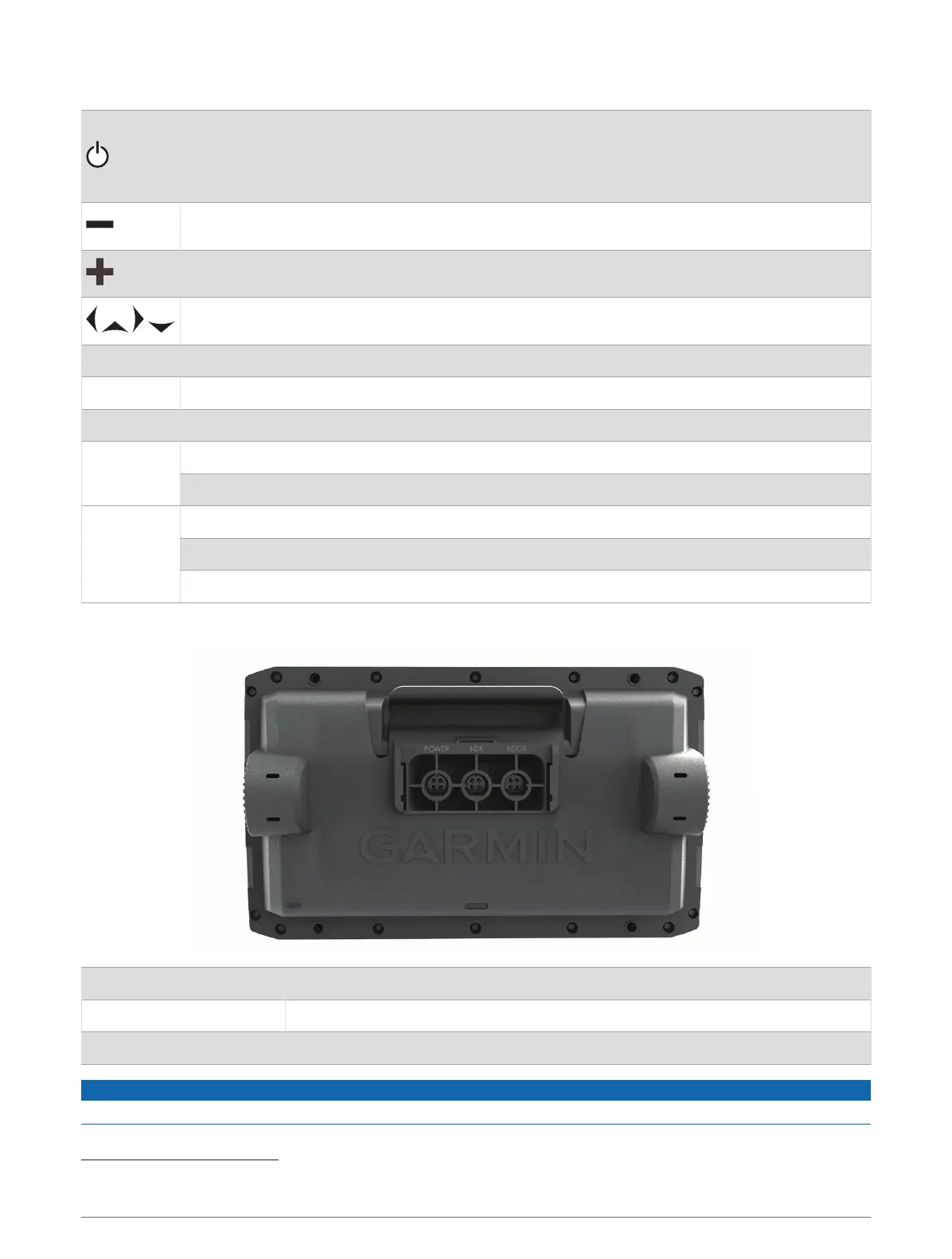

Device Keys
Turns on and off the device when held.
Opens a shortcut menu to backlight, color mode, and sonar transmission when quickly pressed
and released.
Scrolls through the brightness levels when pressed repeatedly.
Zooms out of a chart or view.
Zooms in to a chart or view.
Scrolls, highlights options, and moves the cursor.
SELECT Acknowledges messages and selects options.
BACK Returns to the previous screen.
MARK Saves the present location as a waypoint.
HOME
Returns to the Home screen.
Takes a screenshot when held.
MENU
Opens a menu of options for the page, when applicable.
Closes a menu, when applicable.
Takes a screenshot when held.
ECHOMAP UHD 60 Connector View
POWER Power and data sharing
1
N2K NMEA 2000
®
network
XDCR 4-pin transducer
NOTICE
To prevent corrosion of the metal contacts, cover unused connectors with weather caps.
1
If you are not connecting NMEA
®
0183 devices or another chartplotter to share data, disregard the blue and brown wires.
2 Introduction

Garmin ECHOMAP UHD2 Specifications

General

Sonar	Yes
GPS	Yes
Water Rating	IPX7
NMEA 0183 Input Ports	1
NMEA 0183 Output Ports	1
Sonar Recording	Yes
Sonar History Rewind	Yes
Display Resolution	800 x 480 pixels
Preloaded Maps	Yes
Connectivity	Wi-Fi
Mounting Options	Flush mount
Antenna	Internal
Transmitter Power	500 W (RMS)
Sonar Frequencies	Traditional: 77/200 kHz
Maximum Depth	2, 300 ft (Traditional)
Waypoints	5, 000
Routes	100
