Garmin ECHOMAP UHD2 User Manual

Garmin ClearVü Sonar View
NOTE: To receive Garmin ClearVü scanning sonar, you need a compatible transducer. For information about
compatible transducers, go to garmin.com/transducers.
Garmin ClearVü high-frequency sonar provides a detailed picture of the fishing environment around the boat in a
detailed representation of structures the boat is passing over.

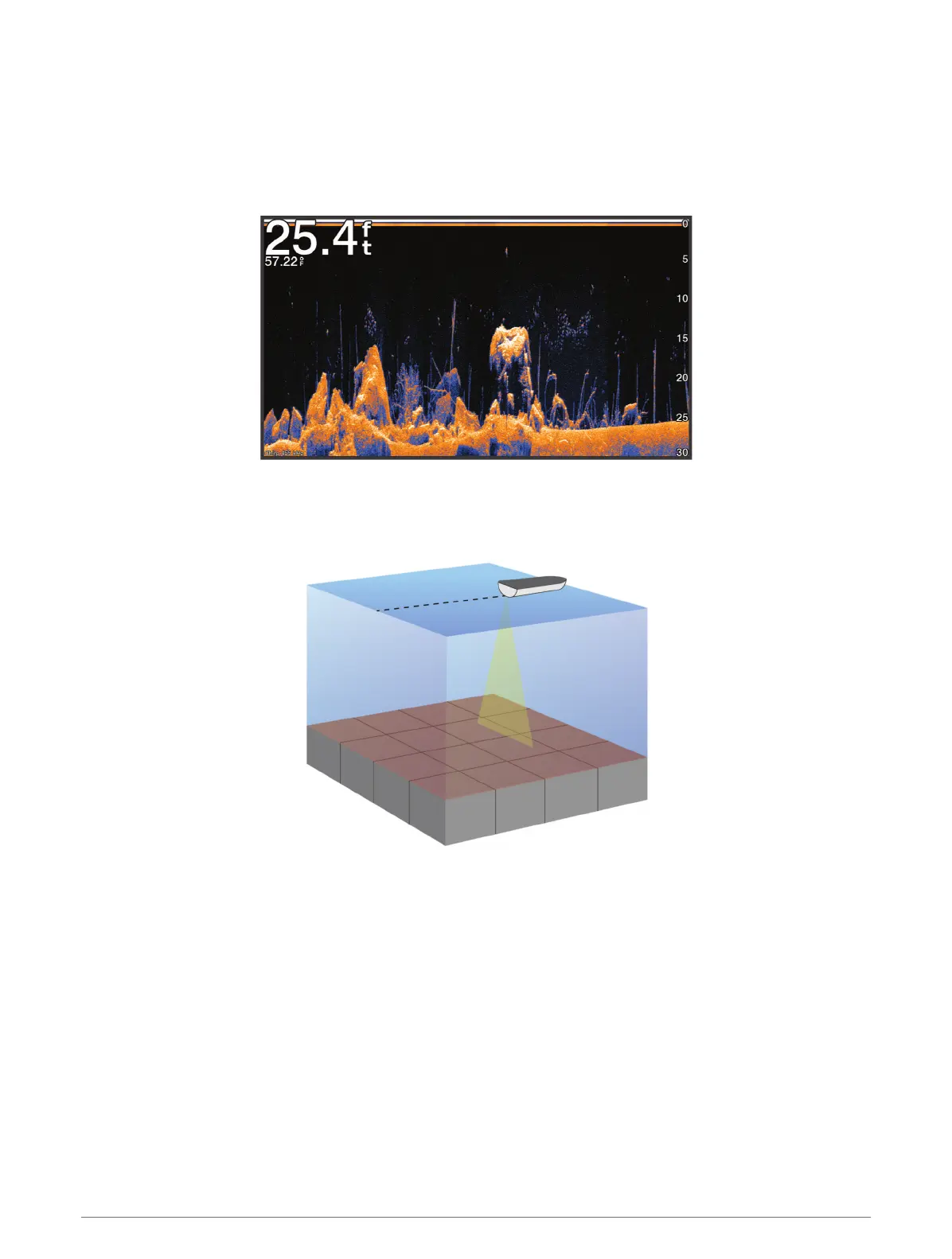

Traditional transducers emit a conical beam. The Garmin ClearVü scanning sonar technology emits a beam
similar to the shape of the beam in a copy machine. This beam provides a clearer, picture-like image of what is
beneath the boat.
52 Sonar Fishfinder

Garmin ECHOMAP UHD2 Specifications

General

Sonar	Yes
GPS	Yes
Water Rating	IPX7
NMEA 0183 Input Ports	1
NMEA 0183 Output Ports	1
Sonar Recording	Yes
Sonar History Rewind	Yes
Display Resolution	800 x 480 pixels
Preloaded Maps	Yes
Connectivity	Wi-Fi
Mounting Options	Flush mount
Antenna	Internal
Transmitter Power	500 W (RMS)
Sonar Frequencies	Traditional: 77/200 kHz
Maximum Depth	2, 300 ft (Traditional)
Waypoints	5, 000
Routes	100
