FrontVü Sonar View
The Panoptix FrontVü sonar view increases your situational awareness by showing obstructions under the
water, up to 91meters (300feet) in front of the boat.
The ability to effectively avoid forward collisions with FrontVü sonar decreases as your speed rises above 8
knots.
To see the FrontVü sonar view, you must install and connect a compatible transducer, such as a PS21
transducer. You may need to update the transducer software.
LiveScope Sonar View

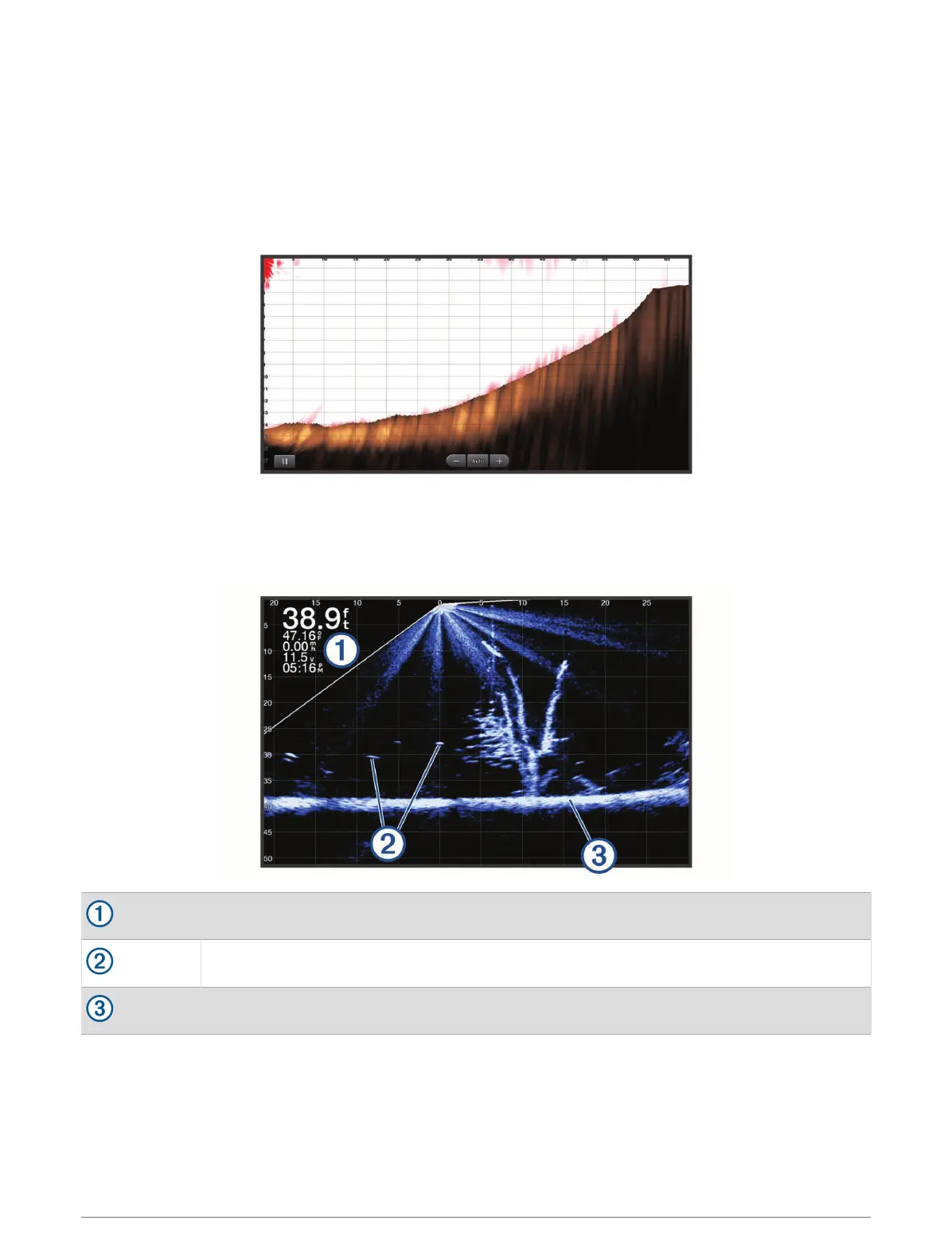

This sonar view shows a live view of what is in front of or below the boat and can be used to see fish and
structures.
Depth information
Suspended targets or fish
Bottom of the body of water
60 Sonar Fishfinder

Garmin ECHOMAP UHD2 Specifications

General

Sonar	Yes
GPS	Yes
Water Rating	IPX7
NMEA 0183 Input Ports	1
NMEA 0183 Output Ports	1
Sonar Recording	Yes
Sonar History Rewind	Yes
Display Resolution	800 x 480 pixels
Preloaded Maps	Yes
Connectivity	Wi-Fi
Mounting Options	Flush mount
Antenna	Internal
Transmitter Power	500 W (RMS)
Sonar Frequencies	Traditional: 77/200 kHz
Maximum Depth	2, 300 ft (Traditional)
Waypoints	5, 000
Routes	100
