Garmin ECHOMAP UHD2 User Manual

Garmin SideVü
™
Sonar View
Not all models provide built-in Garmin SideVü sonar support. If your model does not provide built-in SideVü
sonar, you need a compatible sounder module and compatible SideVü transducer.
If your model does provide built-in SideVü sonar, you need a compatible SideVü transducer.

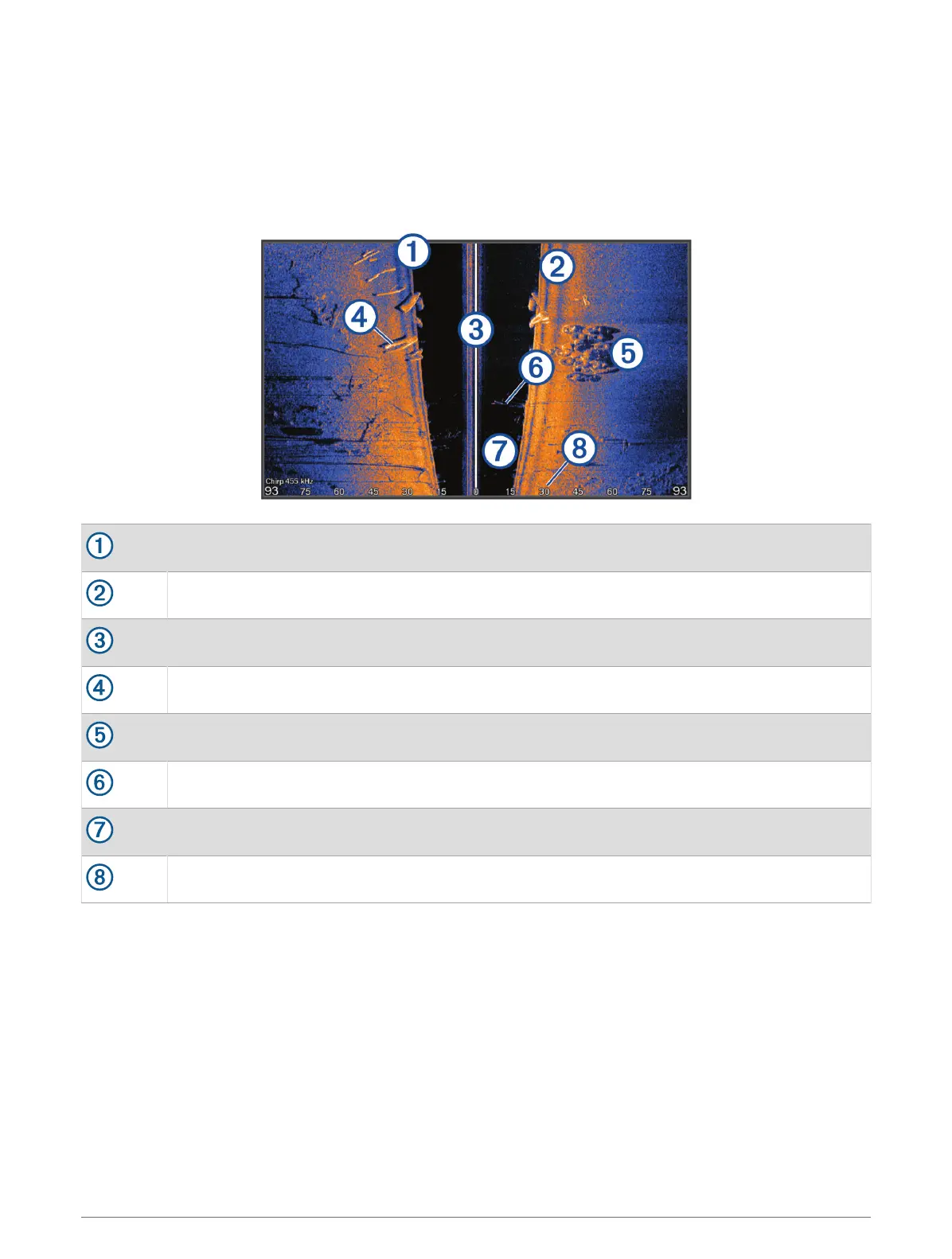

SideVü scanning sonar technology shows you a picture of what lies to the sides of the boat. You can use this as
a search tool to find structures and fish.
Left side of the boat
Right side of the boat
The transducer on your vessel
Logs
Old tires
Trees
Water between the vessel and the bottom
Distance from the side of the boat
Sonar Fishfinder 53

Garmin ECHOMAP UHD2 Specifications

General

Sonar	Yes
GPS	Yes
Water Rating	IPX7
NMEA 0183 Input Ports	1
NMEA 0183 Output Ports	1
Sonar Recording	Yes
Sonar History Rewind	Yes
Display Resolution	800 x 480 pixels
Preloaded Maps	Yes
Connectivity	Wi-Fi
Mounting Options	Flush mount
Antenna	Internal
Transmitter Power	500 W (RMS)
Sonar Frequencies	Traditional: 77/200 kHz
Maximum Depth	2, 300 ft (Traditional)
Waypoints	5, 000
Routes	100
