Connecting to a Garmin Device to Share User Data
NOTE: This feature is not available on ECHOMAP UHD 70/90 devices. The blue and brown wires on those
devices can connect to NMEA 0183 devices only.
You can connect the ECHOMAP UHD 60 device to a compatible Garmin device to share user data, such as
waypoints. If the devices are mounted near each other, you can connect the blue and brown wires. If the devices
are mounted too far apart for the wires to reach, you can connect the devices using a User Data Sharing Cable
(010-12234-06).
1 Make sure both devices are connected to the same ground.
2 Complete an action:
• If the devices are mounted near each other, connect the blue wire from the first device to the brown wire
of the second, and connect the brown wire from the first device to the blue wire of the second.
• If the devices are not mounted near each other, obtain a User Data Sharing Cable (010-12234-06), and
connect the devices following the instructions included with the cable (User Data Sharing Cable Wiring
Diagram, page109).
3 On both devices, select Nav Info > Manage Data > User Data Sharing.
User data is shared between the connected devices. If you select Clear User Data, data is removed from both
connected devices.

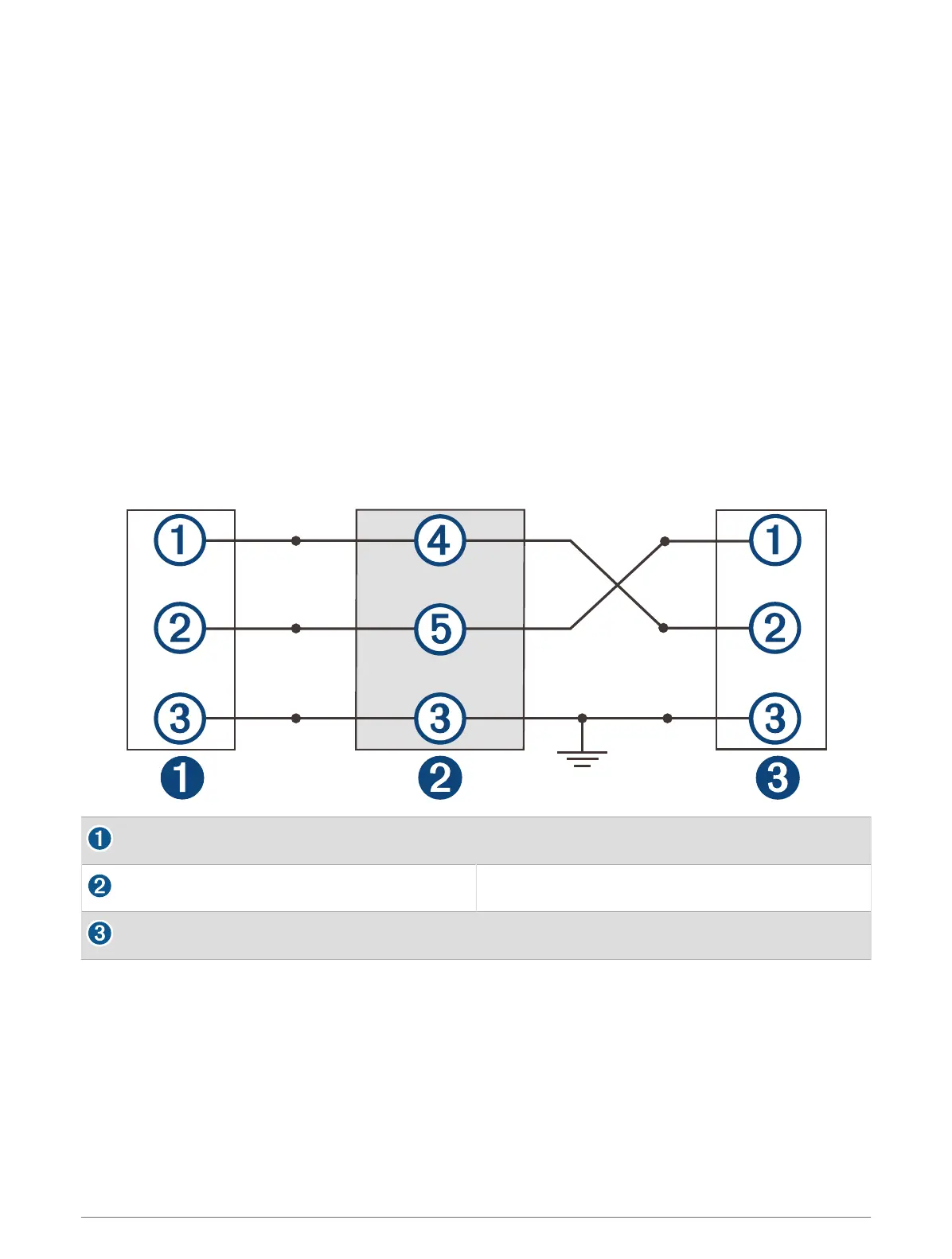

User Data Sharing Cable Wiring Diagram
First device
User data cable
Second device
Sharing and Managing User Data 109
