Creating a New Combination Page with the ECHOMAP UHD 60
You can create a custom combination page to suit your needs.
1 Select Combos > Customize > Add.

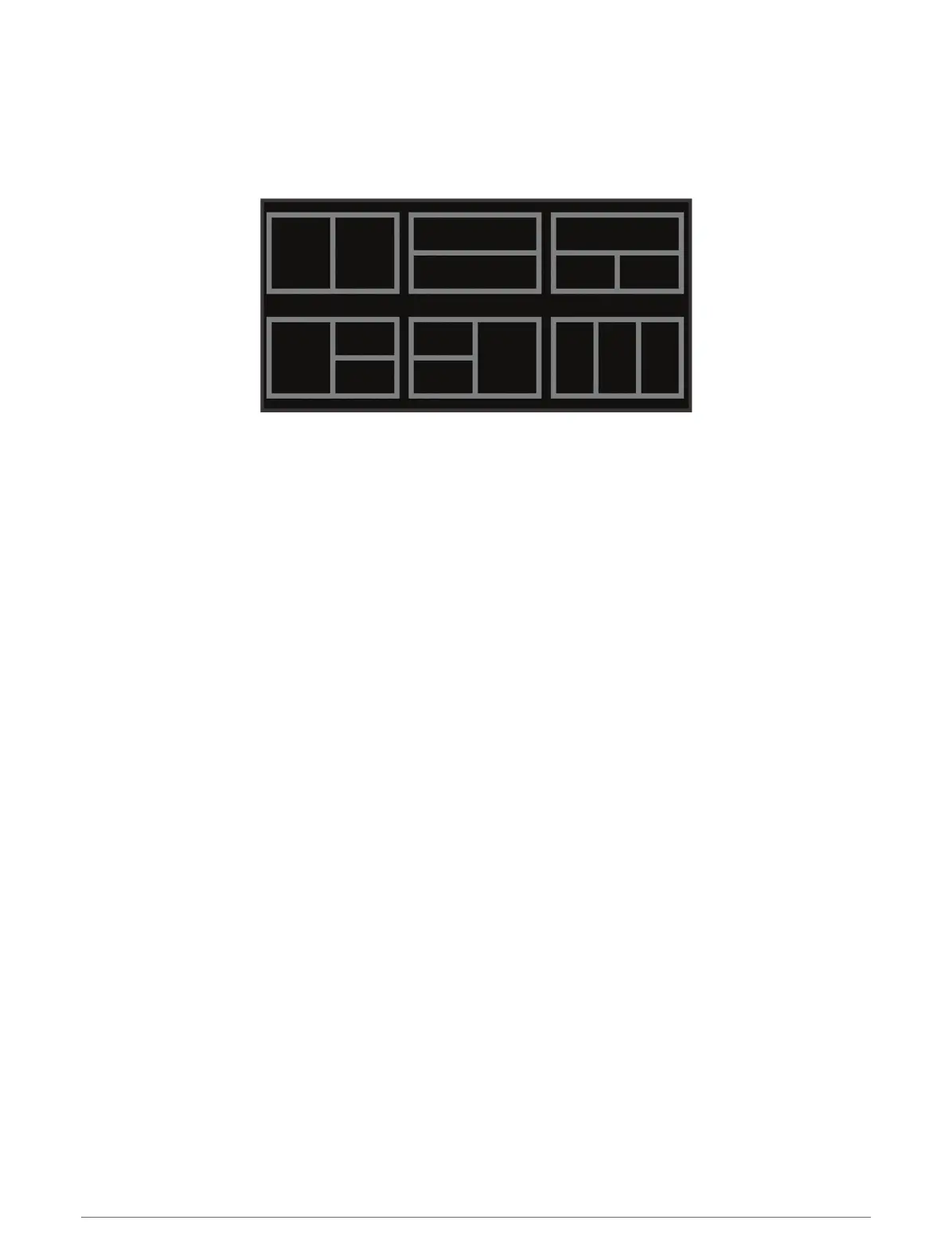

2 Select a layout.
3 Select an area.
4 Select a function for the area.
5 Repeat these steps for each area of the page.
6 Select Data, and customize the data shown.
7 Select Next when you are done customizing the page.
8 Enter a name for the page, and select Done.
9 Use the arrow keys to resize the windows.
10 Select to Back to exit.
Customizing the Chartplotter 7

Garmin ECHOMAP UHD2 Specifications

General

Sonar	Yes
GPS	Yes
Water Rating	IPX7
NMEA 0183 Input Ports	1
NMEA 0183 Output Ports	1
Sonar Recording	Yes
Sonar History Rewind	Yes
Display Resolution	800 x 480 pixels
Preloaded Maps	Yes
Connectivity	Wi-Fi
Mounting Options	Flush mount
Antenna	Internal
Transmitter Power	500 W (RMS)
Sonar Frequencies	Traditional: 77/200 kHz
Maximum Depth	2, 300 ft (Traditional)
Waypoints	5, 000
Routes	100
