Identifying features
www.gateway.com
7
Left
Component Icon Description
Power connector Plug the AC adapter cable into this connector.
Docking port Connect the port replicator to this port.
Warning: Power is passed through this port. This docking connection is certified
to UL 1950 for use only with port replicators designed for your Gateway
convertible notebook.
Monitor port Plug an analog VGA monitor or projector into this port. For more information,
see “Viewing the display on a projector or monitor” in the online User Guide.
Ethernet jack Plug an Ethernet network cable into this jack. Plug the other end of the cable
into a cable modem, DSL modem, or an Ethernet network jack. For more
information, see “Connecting to a cable or DSL modem or to an Ethernet
network” on page 13.
USB ports Plug USB devices (such as a diskette drive, flash drive, printer, scanner, camera,
keyboard, or mouse) into these ports.
IEEE 1394 port Plug an IEEE 1394 (also known as Firewire® or i.Link®) device (such as a digital
camcorder) into this 4-pin IEEE 1394 port. For more information, see
“Connecting a video camera to your notebook” in the online User Guide.
PC Card slot Insert one Type II PC Card into this slot. For more information, see “Adding and
removing a PC Card” on page 33.

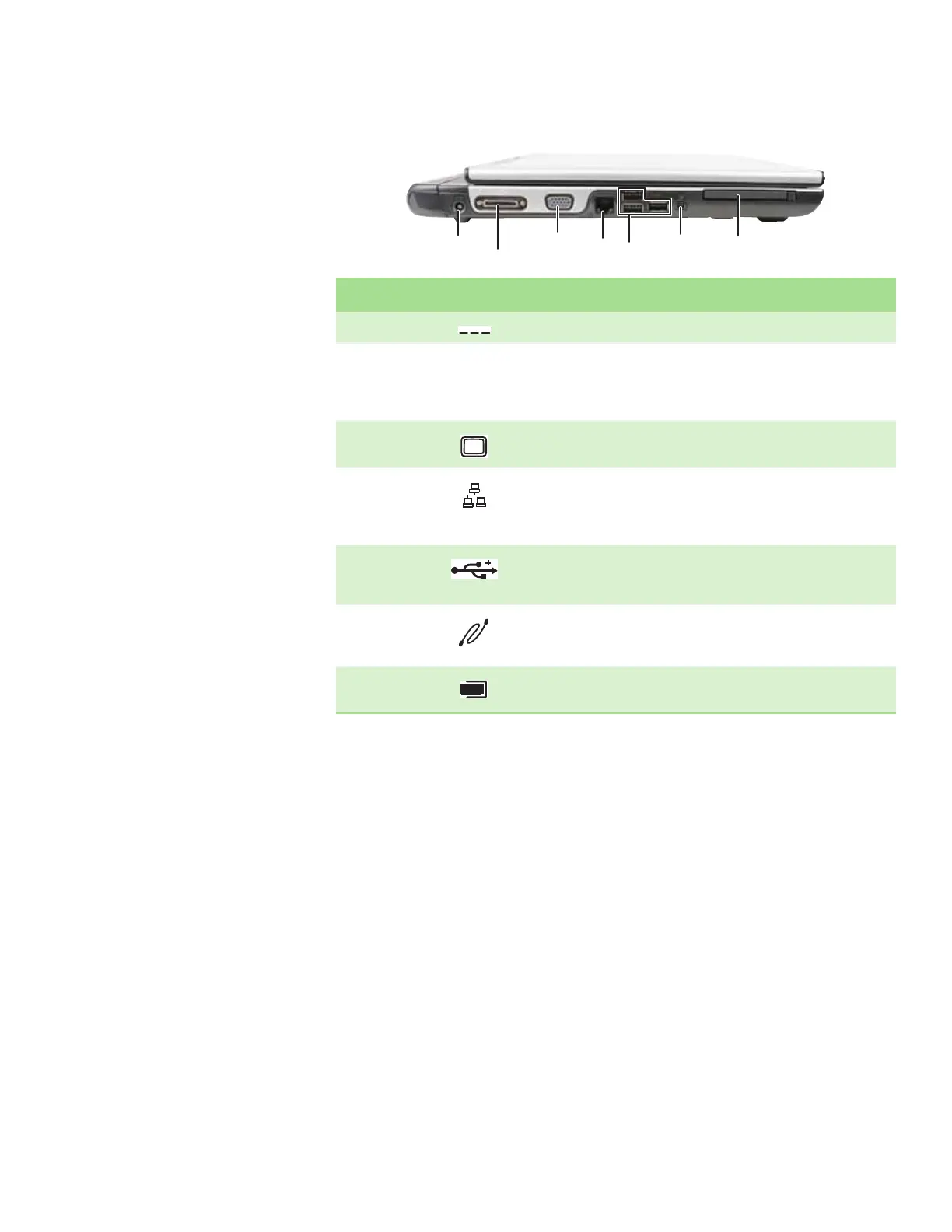

Power connector
Docking port
Monitor port
Ethernet jack USB ports
IEEE 1394 port
PC Card slot
