Ge Est QS4 - Page 103

Standard applications
QS4 Technical Reference Manual 5.9
10K Ω 10K Ω
TB1
TB2
JP2JP1
SW1
CDR–3
PS6TB3–3
PS6TB3–1
NAC RISER –
NAC RISER +
PS6TB1–11
PS6TB1–12
PS6TB1–18
PS6TB1–16

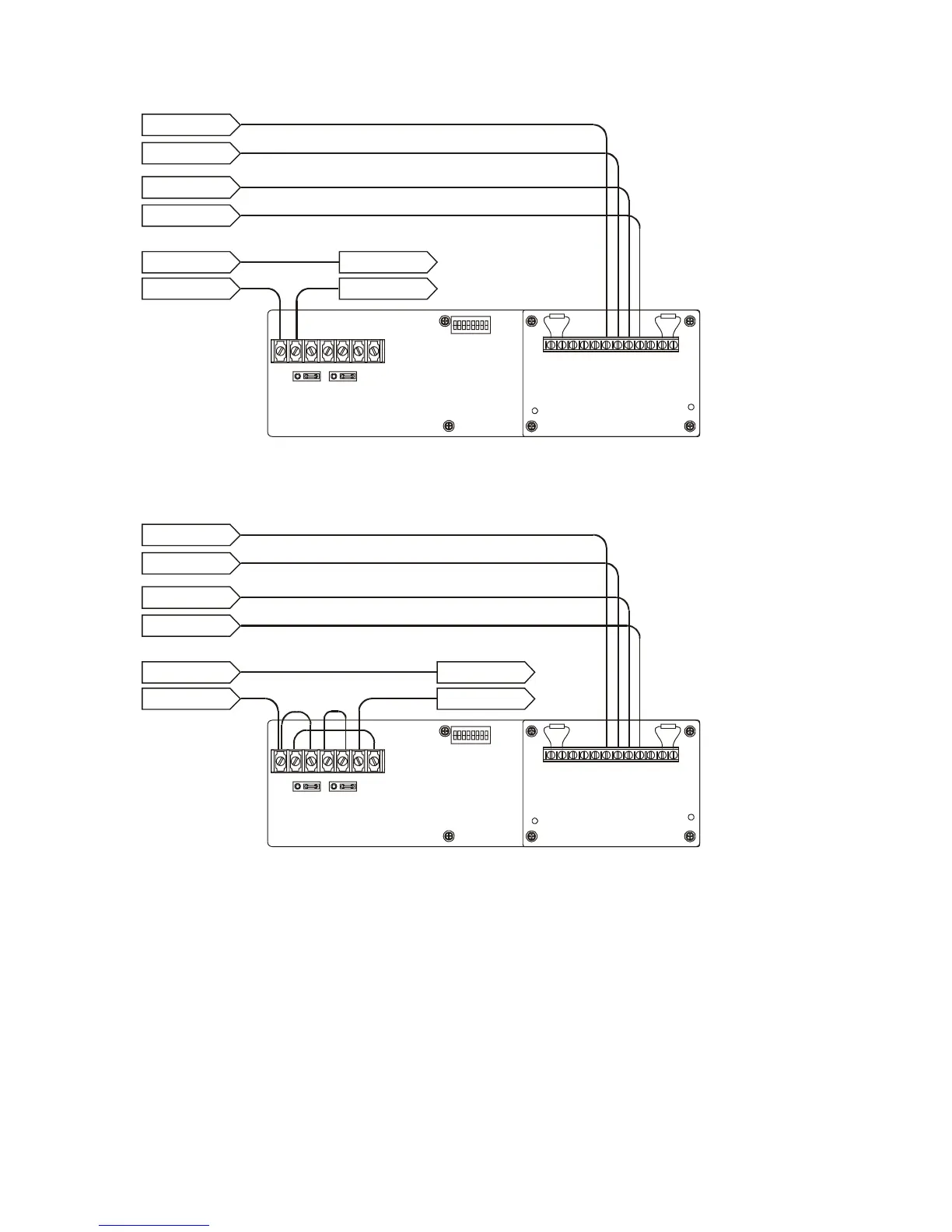

Figure 5-2: Coded alarm signaling wiring (coded alarm signal only)
10K Ω 10K Ω
TB1
TB2
JP2JP1
SW1
CDR–3
PS6TB3–3
PS6TB3–1
PS6TB1–11
PS6TB1–12
PS6TB1–18
PS6TB1–16
NAC RISER –
NAC RISER +
Figure 5-3: Coded alarm signaling wiring (coded signal followed by evacuation signal)
