Programming instructions
4.2 QS4 Technical Reference Manual
Overview
What is a Zone?

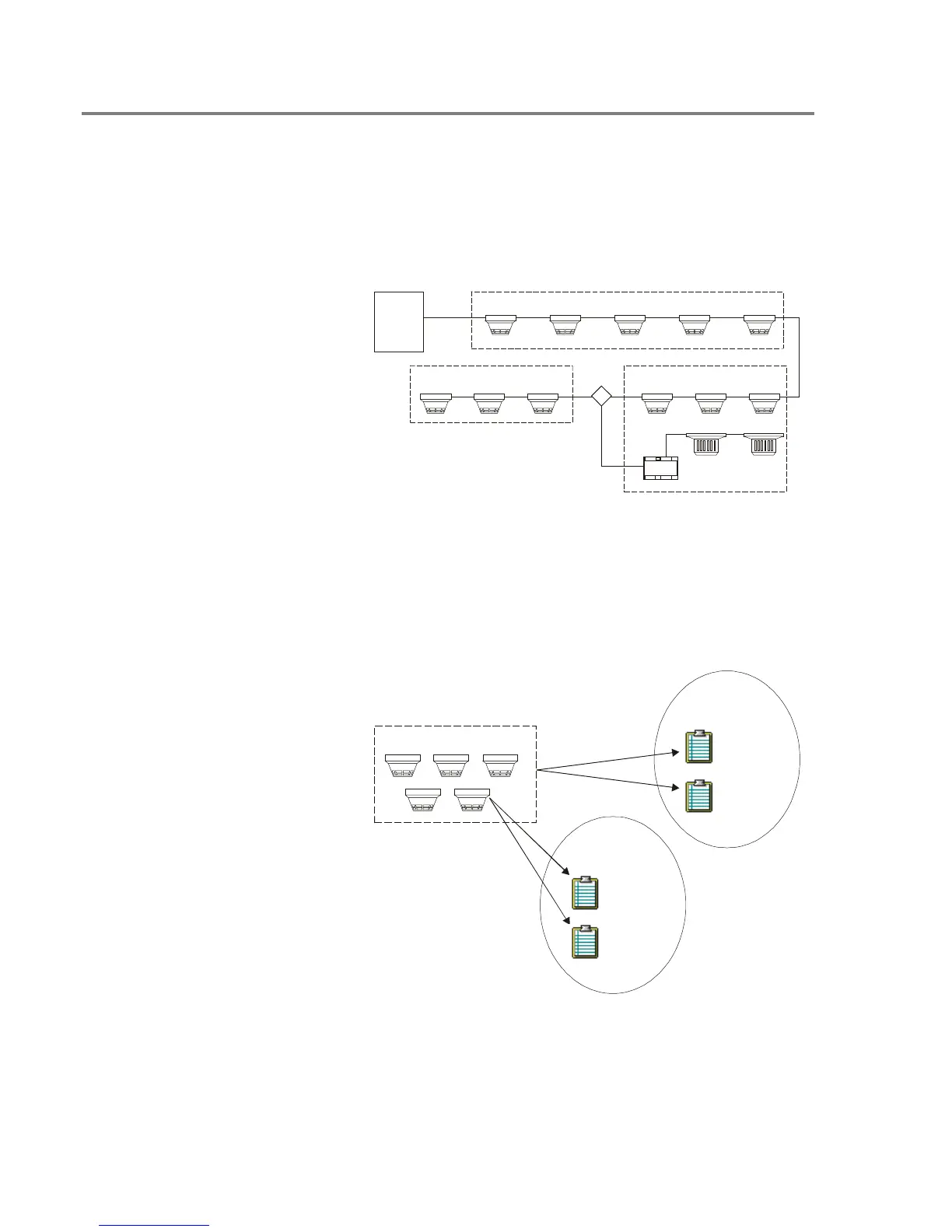

A Zone is a function in the system software that initiates an
active response based on a single alarm event. Firewall
designations, planned evacuation criteria, architectural design,
and other factors all contribute to how the system designer
divides the protected premises into zones.
ZONE 2
ZONE 1
ZONE 3
J
FACP
What is an Output Group?
An Output Group is a function in the system software that
establishes the correlation between input circuits and
responses. When an input changes states, the condition of the
input determines which response the panel runs. For example,
a smoke detector initiates the Active response when it signals
an alarm condition but initiates the Trouble response when
removed from its base.
Output 1
Active
Trouble
ZONE 1
Output 2
Active
Trouble
