3 Installation
32551-IMG rev 6 GE Healthcare 25

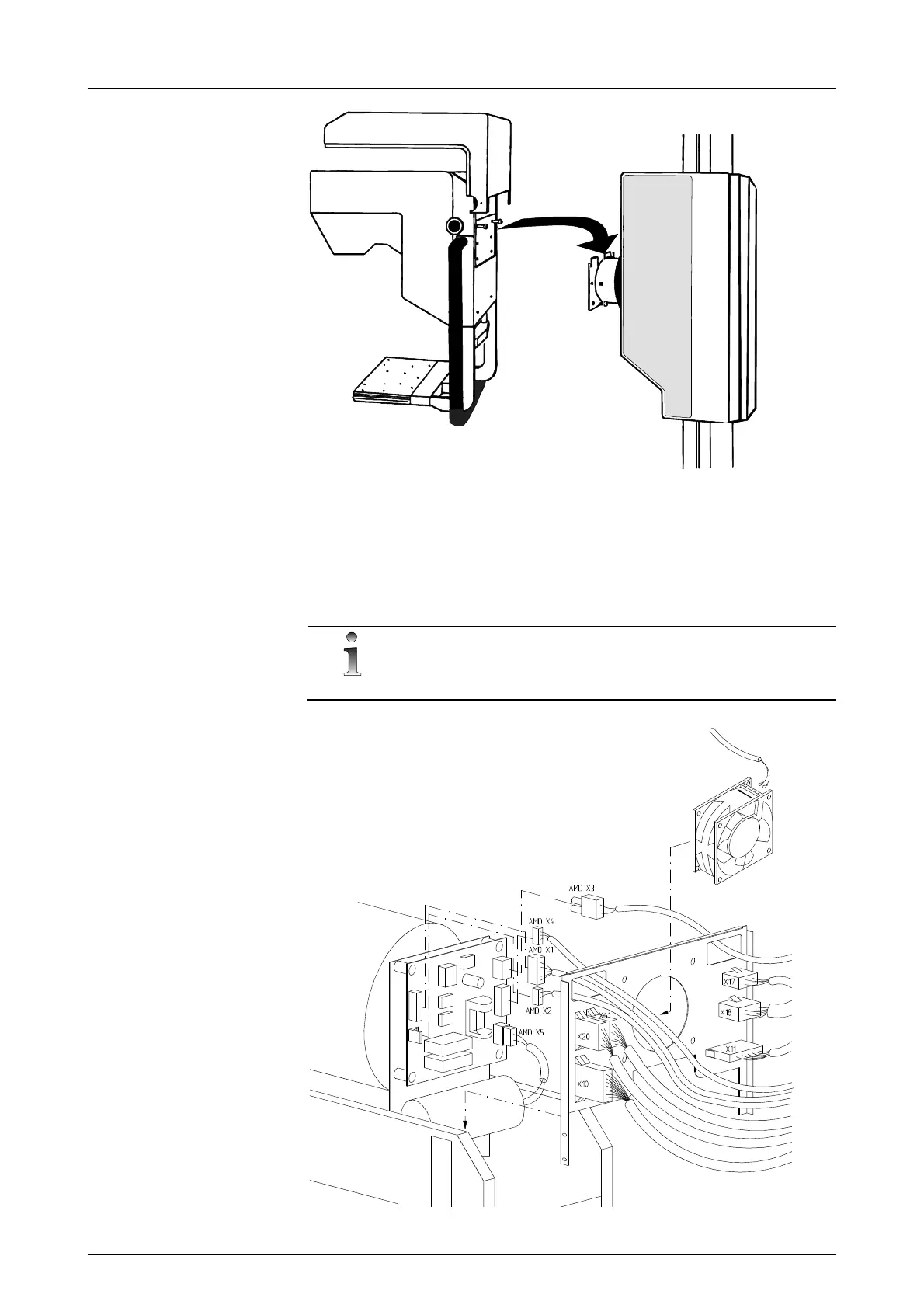

Fig 3.7. Attachment of the C-arm
5 Attach the connectors between the carriage and C-arm according to
their numbers (X10, X11, X17, X18, X20, X61).
6 Connectors AMD X1, AMD X2 and AMD X3 are attached to the anode
motor driver (AMD) board inside the C- arm (X61 is only on Alpha RT
models). See Figure 3.8, C-arm connectors.
NOTE!
X20 has 10 wires on the Alpha RT.
Fig 3.8. C-arm connectors
