3 Installation
32551-IMG rev 6 GE Healthcare 35

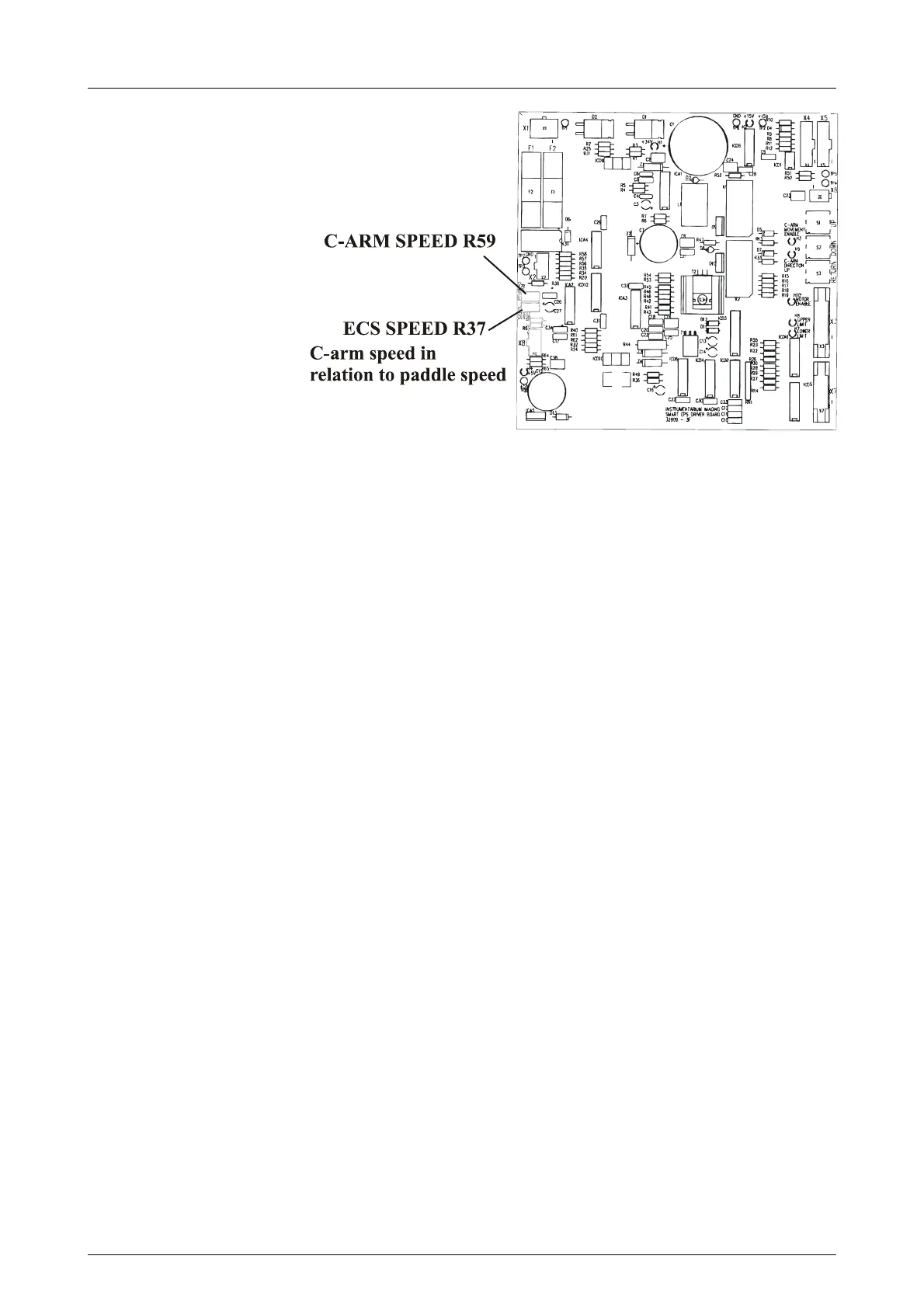

Fig 3.16. Adjustment of C-ARM and ECS speed
11 After adjusting the compression paddle speed, adjust the ECS-
movement with R37 on ECS board.
12 Press REL pedal to set movements to start position. Press ECS-pedal
and adjust the speed from R37 until the dimension between floor
level and compression paddle does not change.
13 Press the C-ARM-pedal and adjust the C-arm speed from R59 to
about 1cm/1sec.
