Parts lists, drawings and replacement
2001989-203C ApexPro™ Telemetry 7-19

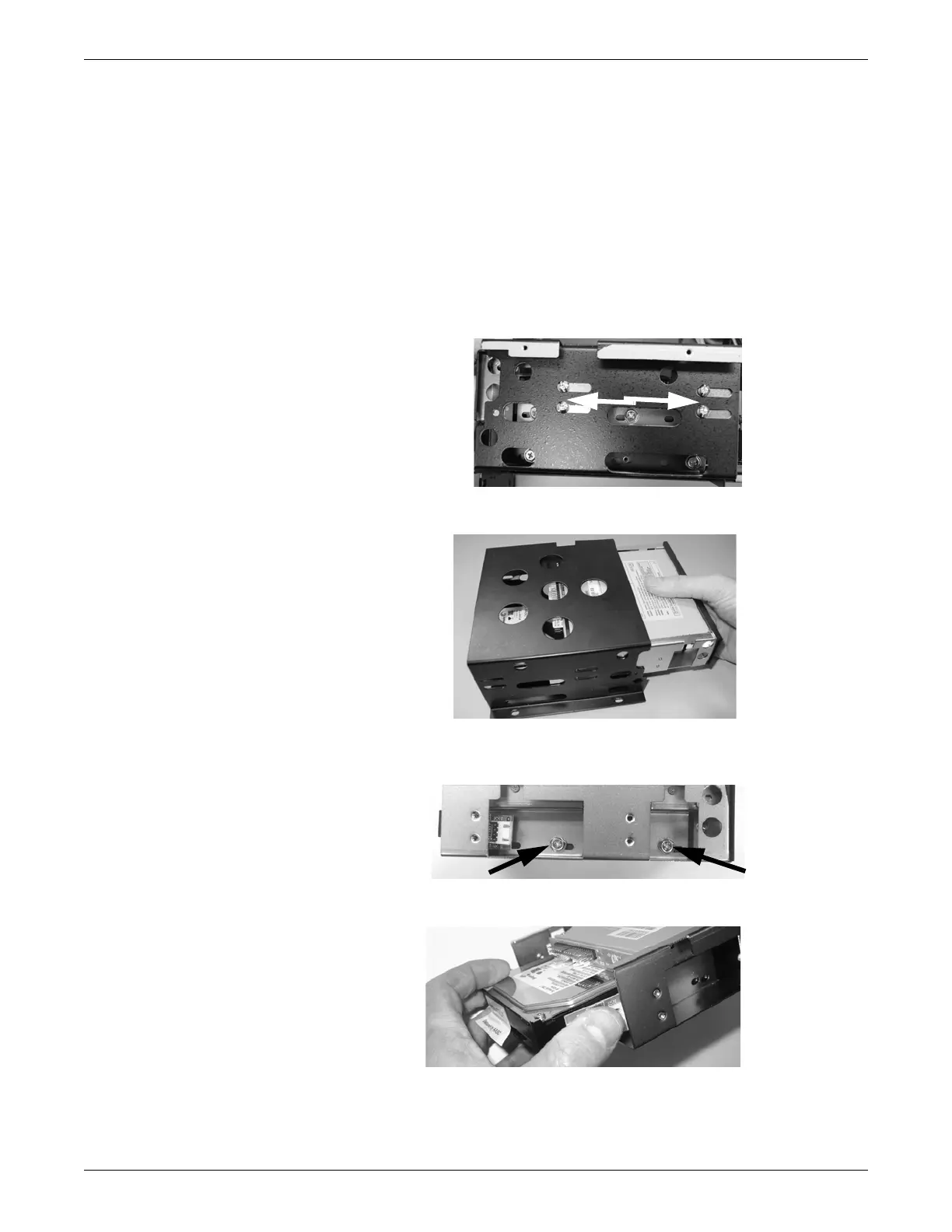

Top hard drive
1. Record the serial number of the new hard drive you are installing.
2. Complete the preparation procedures. See Field replacement preparation on page
7-3.
3. Remove the chassis cover. See Chassis cover on page 7-6.
4. Remove the drive bay. See Drive bay on page 7-16.
5. Using a phillips screwdriver, remove the 4 anchor screws securing the CD/hard
drive carrier in the drive bay on both sides.
018A
6. Slide the CD/hard drive carrier out of the front of the drive bay.
160A
7. Using a phillips screwdriver, remove the 4 screws securing the top hard drive in
the CD/hard drive carrier on both sides.
063A
8. Slide the top hard drive out of the back of the CD/hard drive carrier.
069A
9. Using a phillips screwdriver, remove the screw securing the temperature sensor
to the back left of the hard drive.
To Next Page
