7-32 ApexPro™ Telemetry 2001989-203C
Parts lists, drawings and replacement
7. Reverse the steps in this procedure to install the power modules.

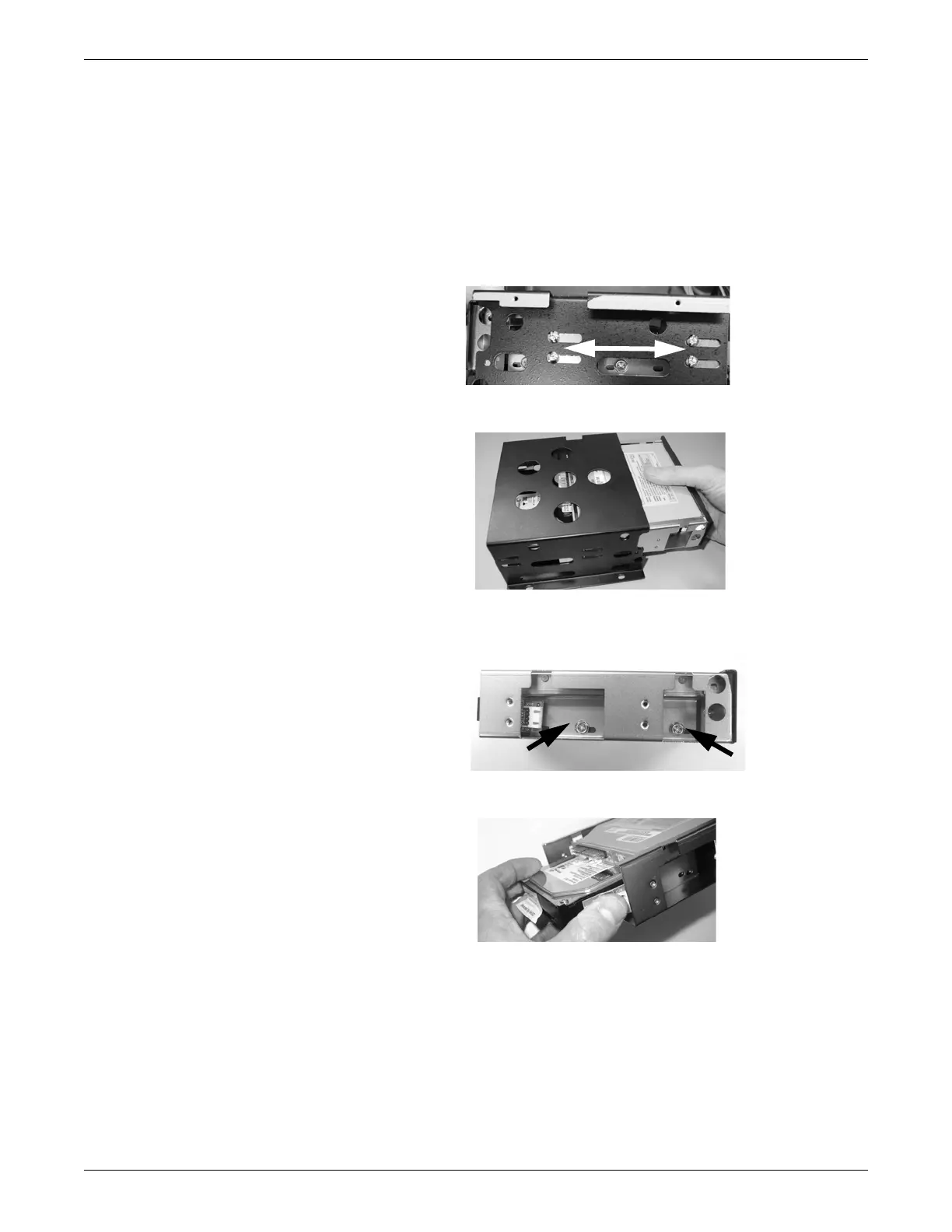

Temperature sensor
1. Remove the drive bay. See Drive bay on page 7-16.
2. Using a phillips screwdriver, remove the 4 anchor screws securing the CD/hard
drive carrier in the drive bay on both sides.
018A
3. Slide the CD/hard drive carrier out of the front of the drive bay.
160A
4. Using a phillips screwdriver, remove (for installation) the four screws securing
the top hard drive in the CD/hard drive carrier on both sides.
063A
5. Slide the top hard drive out of the back of the CD/hard drive carrier.
069A
6. Using a phillips screwdriver, remove the screw securing the temperature sensor
to the back left of the hard drive.
To Next Page
