Equipment overview
2001989-203C ApexPro™ Telemetry 2-9
 Directs and controls ApexPro operations including EK-Pro, trends, histories,
ECG processing and alarms.
 Stores data to the ATS hard drive.
 Assigns/associates receiver and TTX numbers during patient admit.
 Sends data via the Unity Network MC network to the CIC Pro center for patient
data display.
NOTE
The ApexPro host software application does not provide user accessible
functions, but instead relies on remote user interfaces, such as the CIC Pro
center. Refer to the CIC Pro center documentation for further information.

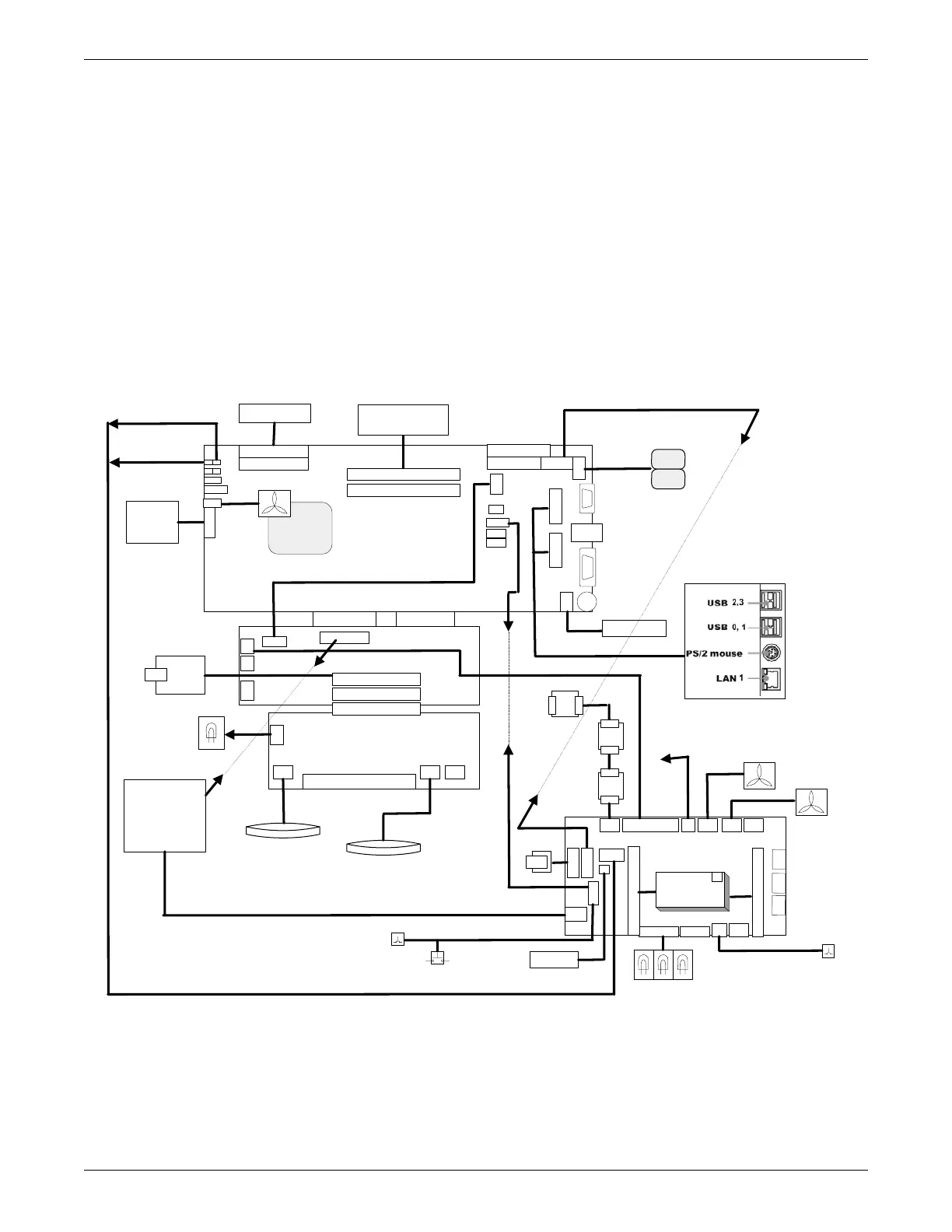

ATS block diagram
005A
ApexPro Telemetry Server
NOTE
Representational only. Drawing does not show exact location of cards or
connectors.
CN1
CN46
Not Used
to Auxiliary
Power Supply
CN2
Top Primary
3.5" Hard Drive
Bottom Secondary
3.5" Hard Drive
CPU
Pentium 4
Single Board Computer (SBC)
Advantech PCA-6184E2-00A2
CD ROM IDE
CN3
CN4
CN10
CN6
CN9
Serial Port
COM1
VGA
Video Port
CN7
LAN 2
Ethernet
Port to RX
Bottom
CN8
Top
Bottom
Two Front
USB Ports
CPU fan
CN14
CN27CN28
PICMG1 slot
CN11
CN12
Front Keyboard
PS/2 mouse
& keyboard
To Riser Card
Riser Card with Rear Panel Connections
CN21
CN18
CN19 CN29
CN16
CN17
DIMM1
DIMM2
Memory
DRAM 512Mb
PCI Backplane
Promise Technology, Inc
SATA RAID
Controller Card
PCI slot 4
JP1
Front HDD LED
J1
J2
SATA cable
SATA cable
ATA ribbon cable
Chassis fan #1
Chassis fan #2
CN4 CN13
CN16
FAN1
FAN2 FAN3
F
A
N
4
F
A
N
5
F
A
N
6
Ethernet
Port to IX
CN20
PCI slot 2
Intel
Ethernet
Card
PCI slot 3
Front Ethernet
Port
CN19
CN20
CN2 CN8
CN1
IDE1
JP2
CN11
CN12
CN18 CN10
CN17
FAN7
Back Ethernet
Port
CN2
CN1
CN2
CN1
CN2
CN1
TS1
TS3
TS2
Temp Sensor 2
Front by fans
Temp Sensor 3
Hard Drive Cage
Temp Sensor 1
Near Power
Supply Cage
Internal
Serial Port
to COM2 of
SBC
Internal
Serial Port
COM2 to RSM
ISA1 slot
ATX1
CN2
CN1
CN3KB2
Power Supply On Signal
Voltage from Backplane
SNMP/HTTP
Remote System Manager (RSM)
Kernal Module
Front Power, Temp & Fan LEDs
Redundant ATX
Power Supply
Unit (PSU)
300W Peak
From ATX PSU
Power Fail Signal
Front Alarm
Reset Switch
J1
J2
CN22
CN13
From J2 of SBC
Watch dog timer
To CN20 of
RSM
Watch dog timer
SM Bus
Front Soft
Power Switch
Front System Reset Switch
To CN19 of RSM
Soft Power and
System Reset Switchs
From SBC CN18 System Reset Signal and CN21 Soft Power Signal
J1
J1
External
Buzzer
