DASH
®
Port 2 Docking Station
The docking station is a quick mount/dismount base for a Dash
®
patient monitor.
It gives the monitor easy connect/disconnect access to AC power, the Unity Network
®
, to a remote display,
and to auxiliary devices.
The docking station can be used with ALL Dash monitors. However, some Dash monitors DO NOT
support the docking station’s Ethernet Network, auxiliary 1, auxiliary 2, or remote display communication
links. See Dash
®
Port 2 Docking Station operation instructions for more detailed information.
①

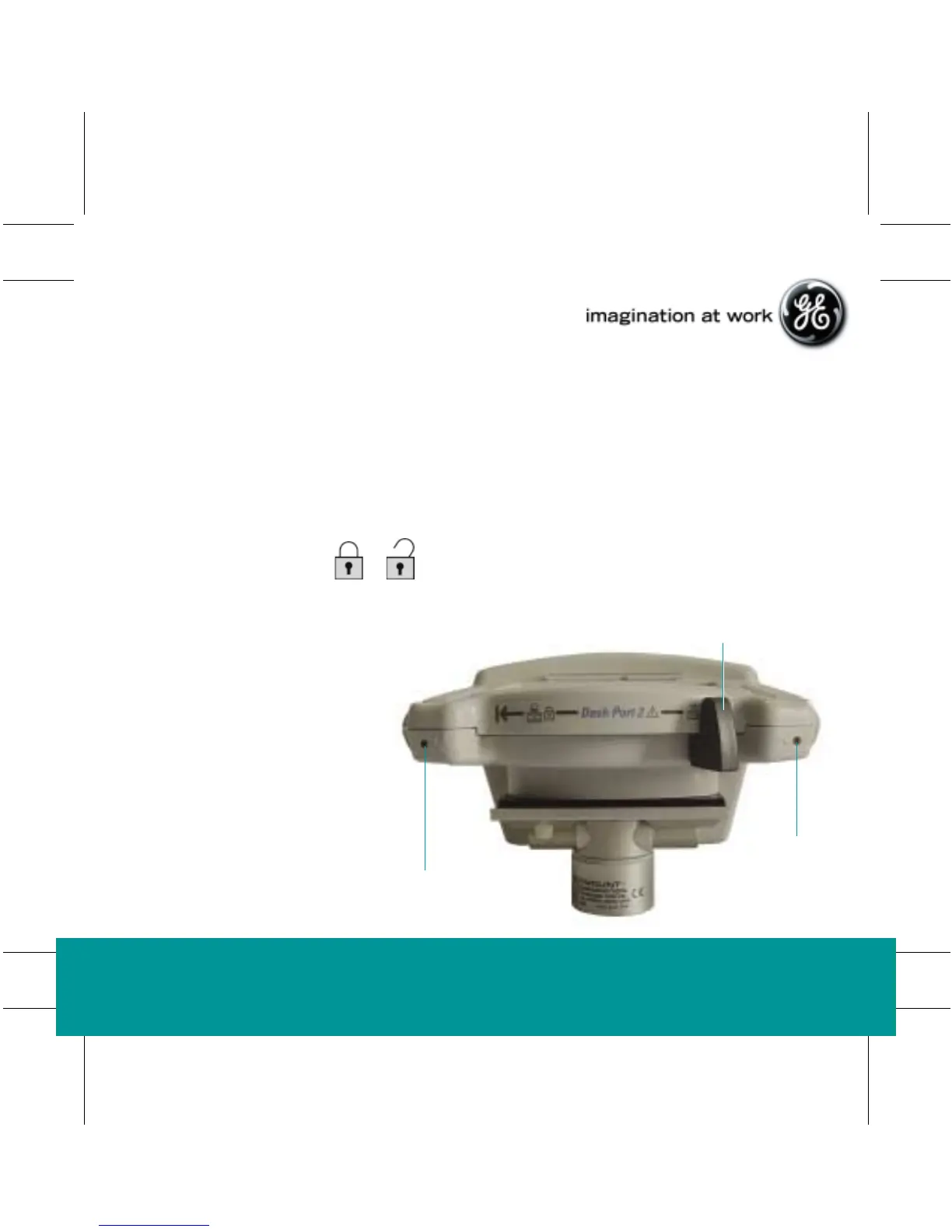

Equipment Overview — Front View
① Security Lever
Slide left to lock the monitor
onto the docking station, then
slide right to unlock the monitor.
➁ AC Mains Power Indicator
Illuminates green when AC power is
applied to the docking station.
➂ Communication Indicator
Green LED:
■ A steady green color indicates the
docking station has established
communication with the monitor.
Amber LED:
■ A flashing amber color indicates that
the docking station and the Dash
monitor are not compatible. See
“Troubleshooting” on the last card
in this section.
➂
➁
LOCK
UNLOCK
