Position and Lock the Monitor
Ensure the docking station is positioned a
safe distance AWAY from the patient while
connecting or disconnecting the monitor.
Hold onto the monitor’s handle when the
docking station’s security lever is in the
unlock position and until you verify the
monitor is properly secured to the docking
station.
①

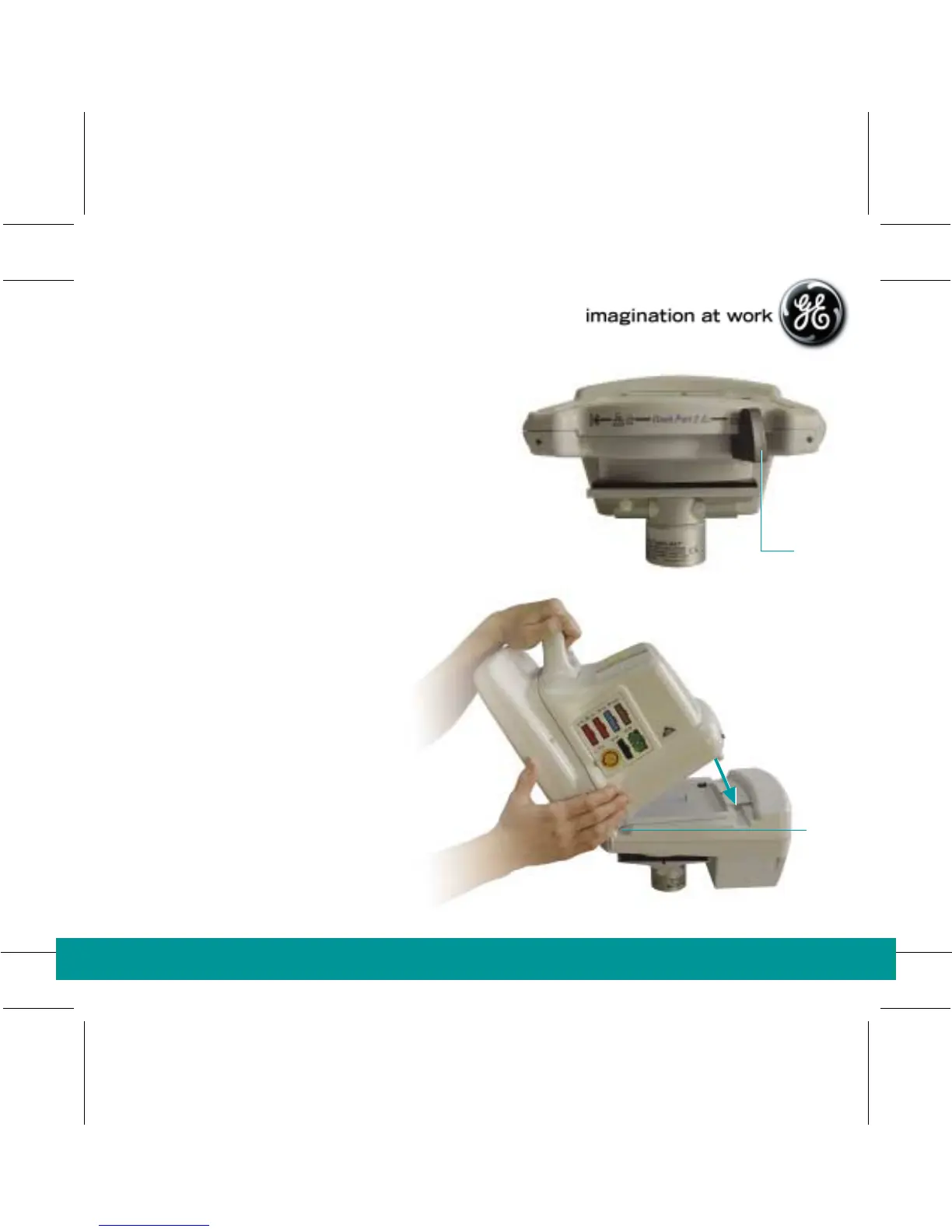

Verify the security lever starts in the
unlock (far right) position.
➁
Position the front of the Dash monitor
onto the front channel of the docking
station.
➂
Hold onto the monitor and allow the
weight of the monitor to descend
firmly onto the docking station. The
security lever should move
automatically to the central position
and lock the monitor into place.
√
Try to pivot the monitor from front to
back to verify it is secure.
∞
Establish the monitor’s AC Power and
Communication Link.
(See procedure on next card)
