Rover-Combo
This application combines the
mobility feature of Rover
monitoring with the telemetry
capabilities of Combo monitoring.

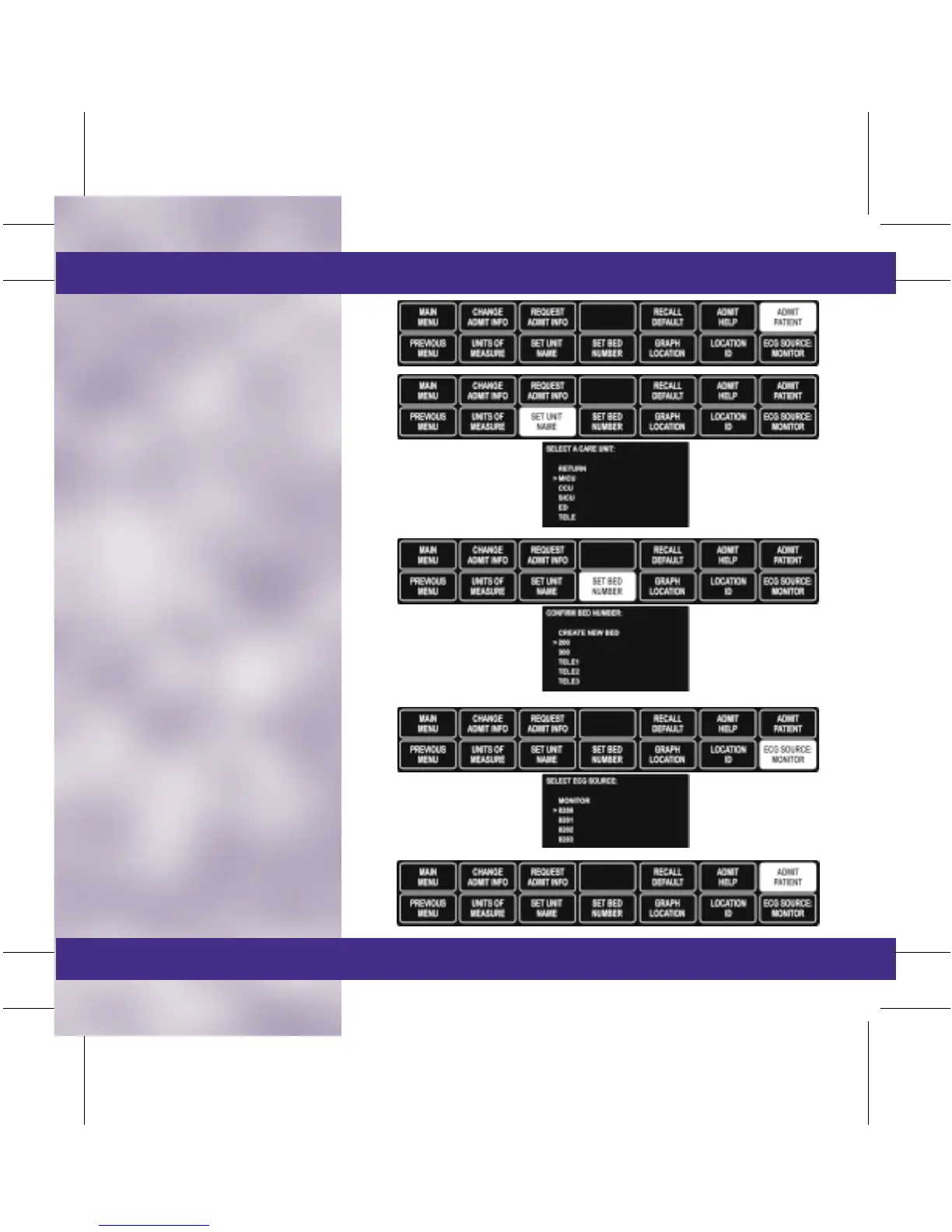

■ To Admit a Patient
• Connect the AC Power source.
• Connect the Network cable.
NOTE: This step is not required when using wireless
Dash monitors. It is required for all other Dash
monitors.
• Push the Power button to
activate the display.
• Select MORE MENUS.
• Select ADMIT MENU.
• Select SET UNIT NAME.
• From the information window,
move cursor in front of the
desired unit.
• Select SET BED NUMBER.
• From the information window,
move cursor in front of the
desired bed number.
• Select ECG SOURCE.
• From the information window,
move cursor in front of the
desired transmitter/
transceiver or monitor
(hardwire) and press to select.
NOTE: If the Unit Name, Bed Number or ECG Source windows
do not appear, check that the network cable is connected.
• Select ADMIT PATIENT.
To Next Page
