1-4 Programming Site Data
Display Key - use to display data in a
variety of numeric and graphic format-
ting options. See page 2-1 for details.
Use to enter the letter O.
Log Key - use to set up logs. See page
3-1 for details.
Use to enter the letter X.
Print Key - use to print live measure-
ments, log files and signal arrays. See
page 4-1 for details.
Use to enter the letter R.
Clear Key - use to reset totals and to
delete site and log files from the Model
DF868 memory. See page 5-1 for
details.
Use to enter the letter H.
Calibration Key - use to calibrate the
analog inputs and outputs and to test
the alarm relays and the totalizer/fre-
quency outputs. See Chapter 1, Cali-
bration, page 1-1 in the Service
Manual, for details.
Use to enter the letter P.
Exit Key - use to move up one level in
the user program or to exit the user
program.
Use to enter the letter J.
Enter Key - use to confirm the most
recent input information.
Use to enter the letter K.
Help Key - use to access the Model
DF868’s context-sensitive on-line help
system. See the next section for details.
Use to enter the letter I.
Screen Key - press the left side to select
the left display pane or press the right
side to select the right display pane.
Press the left side to enter the letter
V or press the right side to enter
the letter W.
Decimal Point Key - press to enter a
decimal point during numeric entry.
Use to enter the letter Z.
Minus Key - use to enter a minus sign
or a dash.
Use to enter a space character.
Zero Key - use to enter the number 0. Use to enter the letter Y.
One Key - use to enter the number 1. Use to enter the letter S.

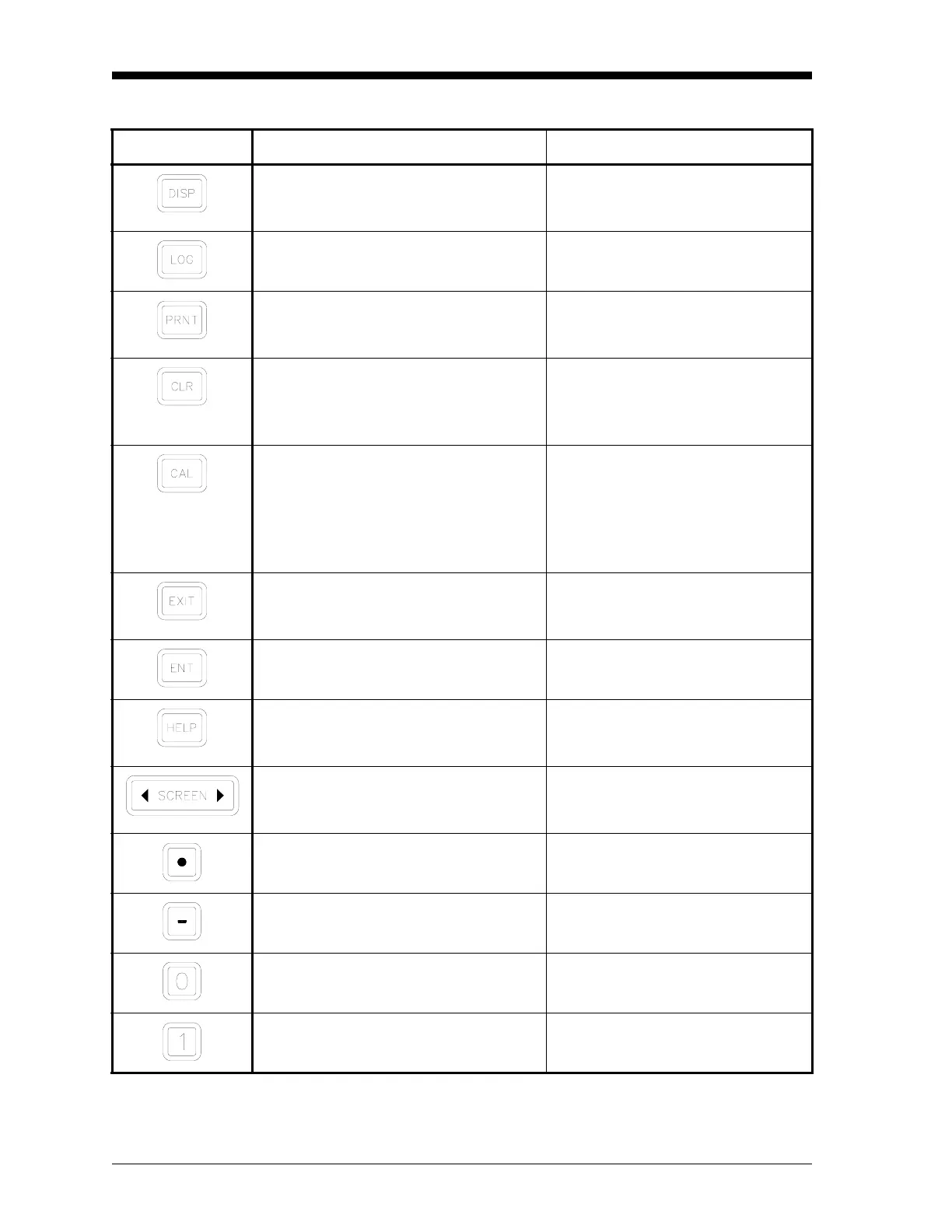

Table 1-1: Model DF868 Key Functions (Continued)
Key Unshifted Function Shifted Function
