March 2008
C-14 Programming with PanaView
Clearing a Site from the
Meter
To clear a site from the meter:
1. Highlight the site in the left pane. (See Figure C-13 on page C-11.)
2. Click Clear Site From Meter.
3. The program asks for confirmation. Click
[OK]. The meter deletes
the designated file.
Saving a Site in Text Form To store the data from a site file as a text file for display or printout:
1. Highlight the site in the left pane. (See Figure C-13 on page C-11.)
2. Click Save Site Print to PC.
3. The Site File Selection window (Figure C-14 on page C-12)
opens. Enter the desired site name (now with a .prt suffix) and
click
[Save]. PanaView displays a text version of the site, as shown
in Figure C-17 below.

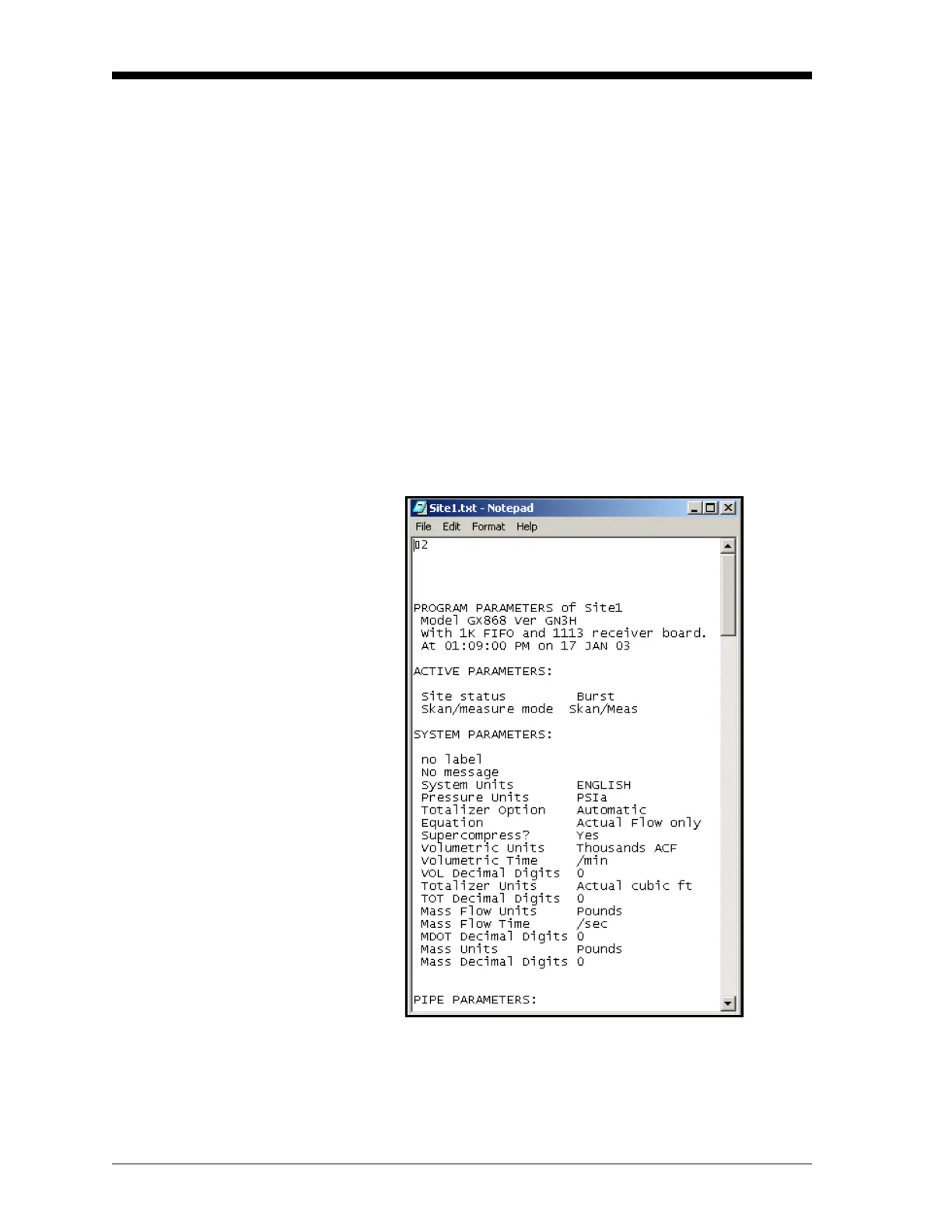

Figure C-17: Printout of Site File
4. Click
[Close] once to close the Site File Operations window, and a
second time to close the Properties window and return to the
Meter Browser.
