4-10 F60 Feeder Protection System GE Multilin
4.1 ENERVISTA UR SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
4

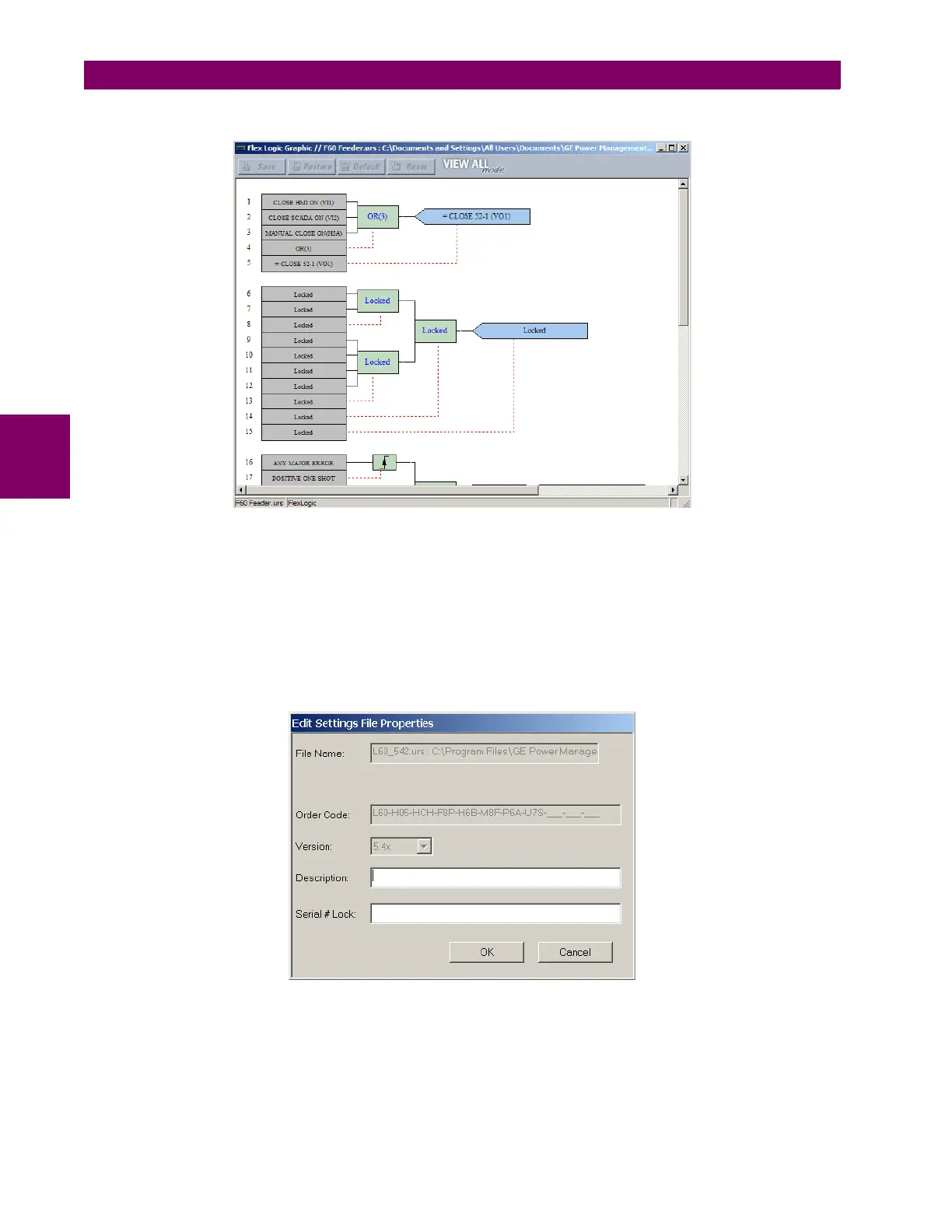

The FlexLogic entries are also shown as locked in the graphical view (as shown below) and on the front panel display.
Figure 4–9: SECURED FLEXLOGIC IN GRAPHICAL VIEW
b) LOCKING FLEXLOGIC EQUATIONS TO A SERIAL NUMBER
A settings file and associated FlexLogic equations can also be locked to a specific UR serial number. Once the desired
FlexLogic entries in a settings file have been secured, use the following procedure to lock the settings file to a specific serial
number.
1. Select the settings file in the offline window.
2. Right-click on the file and select the Edit Settings File Properties item.
The following window is displayed.
Figure 4–10: TYPICAL SETTINGS FILE PROPERTIES WINDOW
3. Enter the serial number of the F60 device to lock to the settings file in the Serial # Lock field.
The settings file and corresponding secure FlexLogic equations are now locked to the F60 device specified by the serial
number.
