GE LOGIQ C9 Series User Manual

Disassembly/Re-assembly
LOGIQ C9 Series – Basic Service Manual 8-9
5482298-100 English Rev. 5
Body Assy

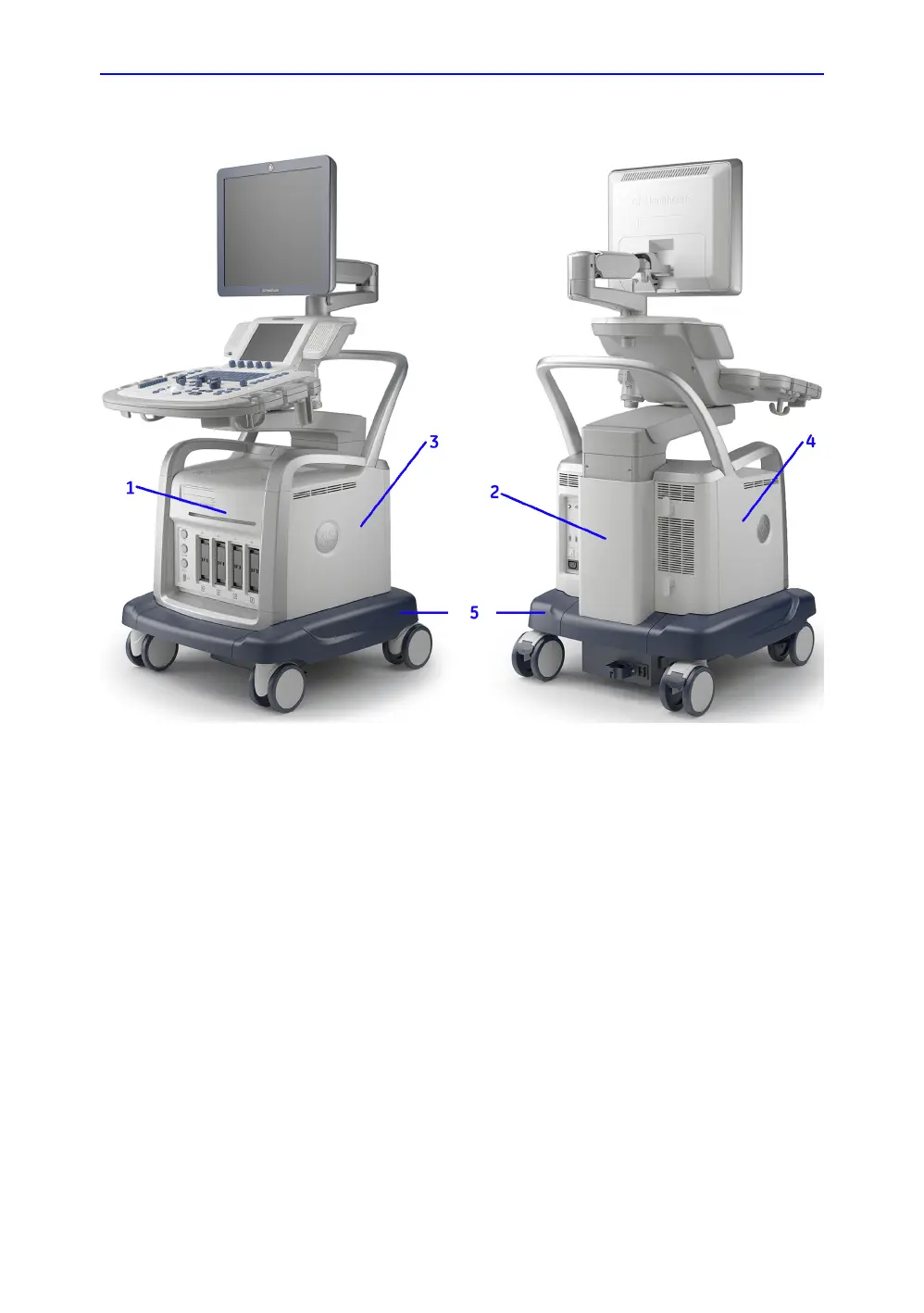

Figure 8-3. Bottom Assy Overview
1. Body Front Cover Assy
2. Body Back Cover Assy
3. Body Left Side Cover Assy
4. Body Right Side Cover Assy
5. Base Cover Assy
NOTE: Left Side here means the side which is NOT beside the real
panel.
NOTE: Right Side here means the side which is
beside the real panel.
