GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 4-3 - General Procedure 4-7
4-3-3-3 Monitor Display for LOGIQ™ A5

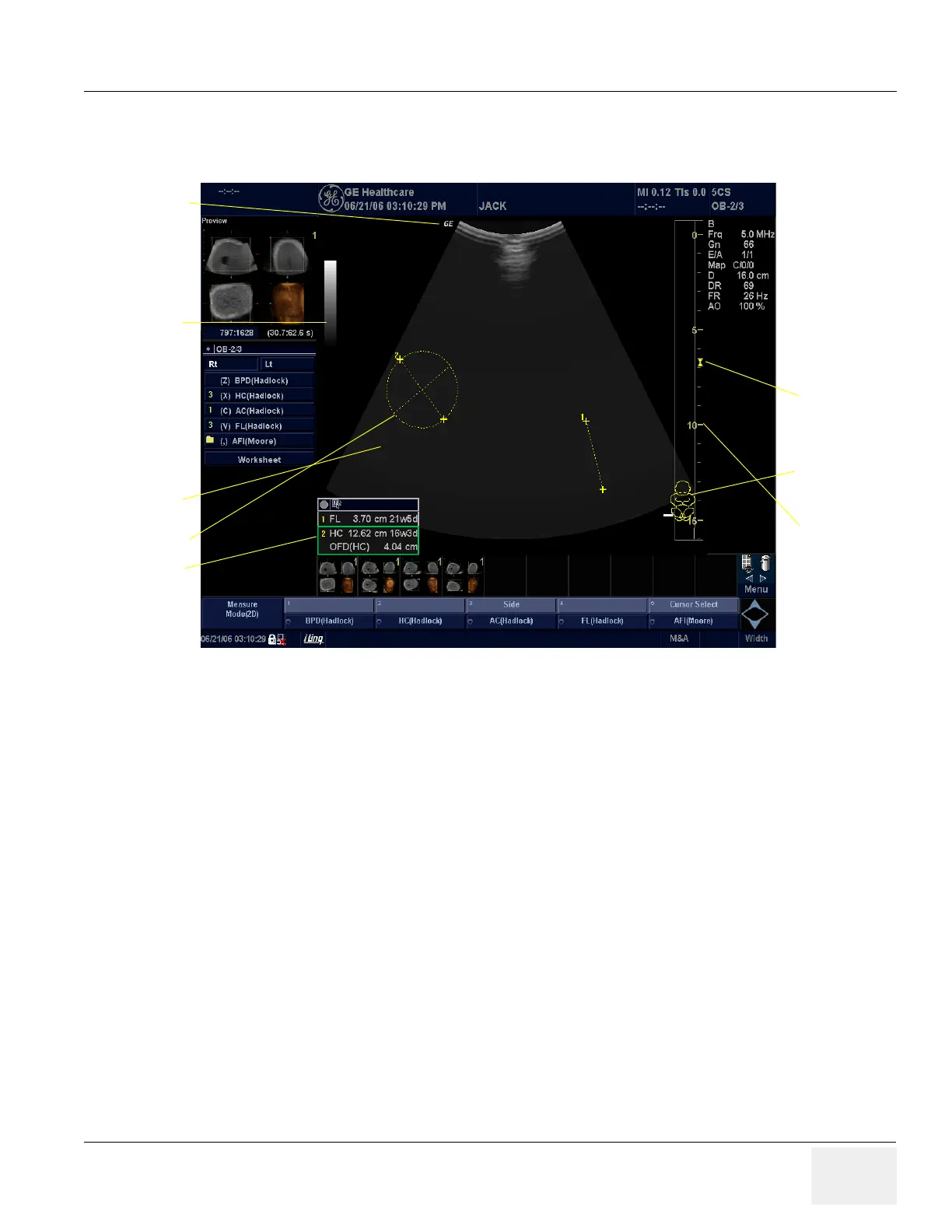

Figure 4-6 P5 Monitor Display Tour
1. Institution/Hospital Name, Date, Time,
Operator Identification.
2. Patient Name, Patient Identification.
3. Power Output Readout
4. GE Symbol: Probe Orientation Marker.
5. Image Preview.
6. Gray/Color Bar.
7. Cine Gauge.
8. Measurement Summary Window.
9. Image.
10. Measurement Calipers.
11. Measurement Results Window.
12. Probe Identifier. Exam Preset.
13. Imaging Parameters by Mode.
14. Focal Zone Indicator.
15. TGC.
16. Body Pattern.
17. Depth Scale.
18. Top Menu
19. Caps Lock: Lit when On.
20. Service Interface icon (wrench), iLinq
icon, and system messages display
(not shown on image)
21. Trackball Functionality Status: Scroll,
M&A (Measurement and Analysis),
Position, Size, Scan Area Width and
Tilt.
22. Sub Menu
12
4
12
14
3
6
5
7
8
9
10
11
15
17
16
18
19 20
21
22
13
To Next Page
