IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
4 - 12 Section 4-3 - General procedures
4-3-7-2 Total Lock Caster
NOTE: This procedure applies to casters except RIGHT REAR Caster.

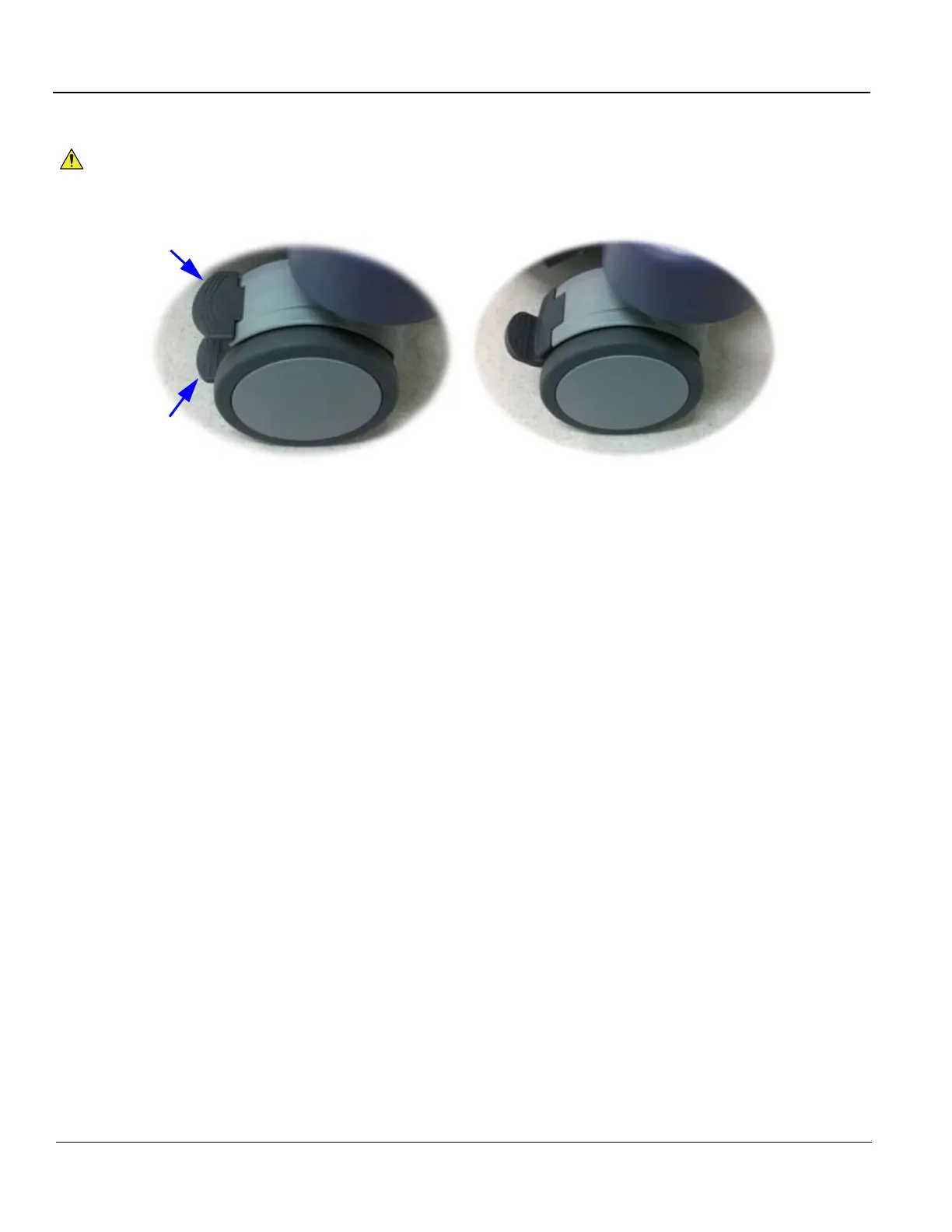

Figure 4-10 Total Lock Casters
1.) Press ‘a’. (see: Figure 4-10)
2.) Rotate wheel until it locks (several locations where caster engages).
3.) Verify Swivel Lock engages and Brake is ON.
4.) Press ‘b’. (see: Figure 4-10).
5.) Verify wheel is free to move.
CAUTION
!! CAUTION:
The system weighs approximately 100 kg (LOGIQ S8) / 113 kg (LOGIQ E8) with the
peripherals. Pay attention for system stability when working with the casters.
