IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 4-4 - Functional Checks 4 - 19
4-4-4 Basic Controls
4-4-4-1 Control Panel Map

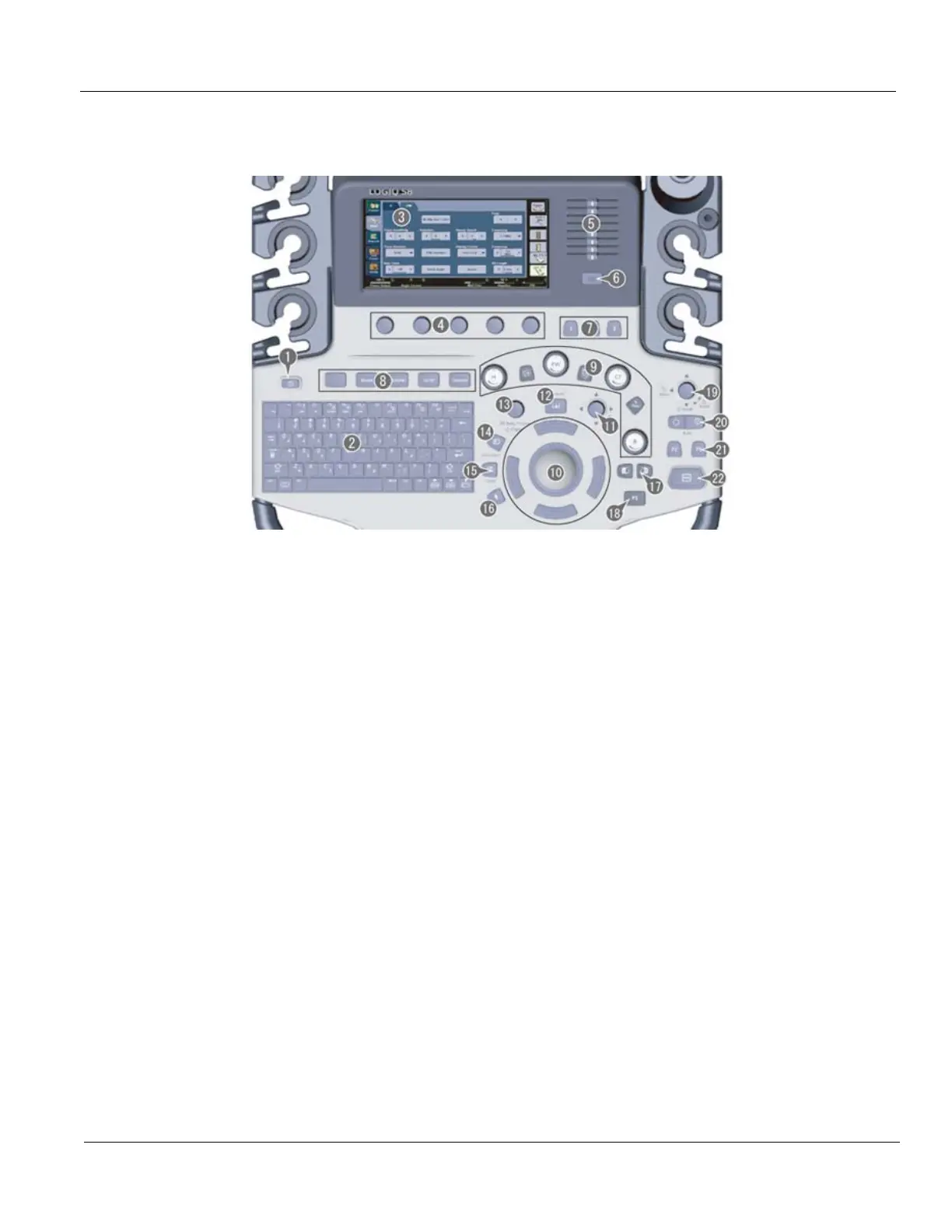

Figure 4-15 Control Panel - R1, R2 and R3
1.Power On/Off
2.A/N Keyboard
3.Measurement Selection Menu
4.Rotary and Joystick controls
5.TGC
6.Reverse key
7.User Define keys
8.BT Keys
9.Mode/Gain/XYZ Controls
10.Trackball/Trackball Keys
11.Zoom
12.Measure key
13.Body Pattern/Ellipse
14.Comment key
15.Clear key
16.Pointer key
17.Left/Right key
18.P1 (Print) key
19.Steer/Width/Depth
20.Auto (AL and AR)
21.P2 and P3 key
22.Freeze key
