DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
7 - 32 Section 7-4 - Service Desktop (CSD) - R1 to R4
7-4-10-9 Shared Resources
This screen displays all shared network resources on this system.

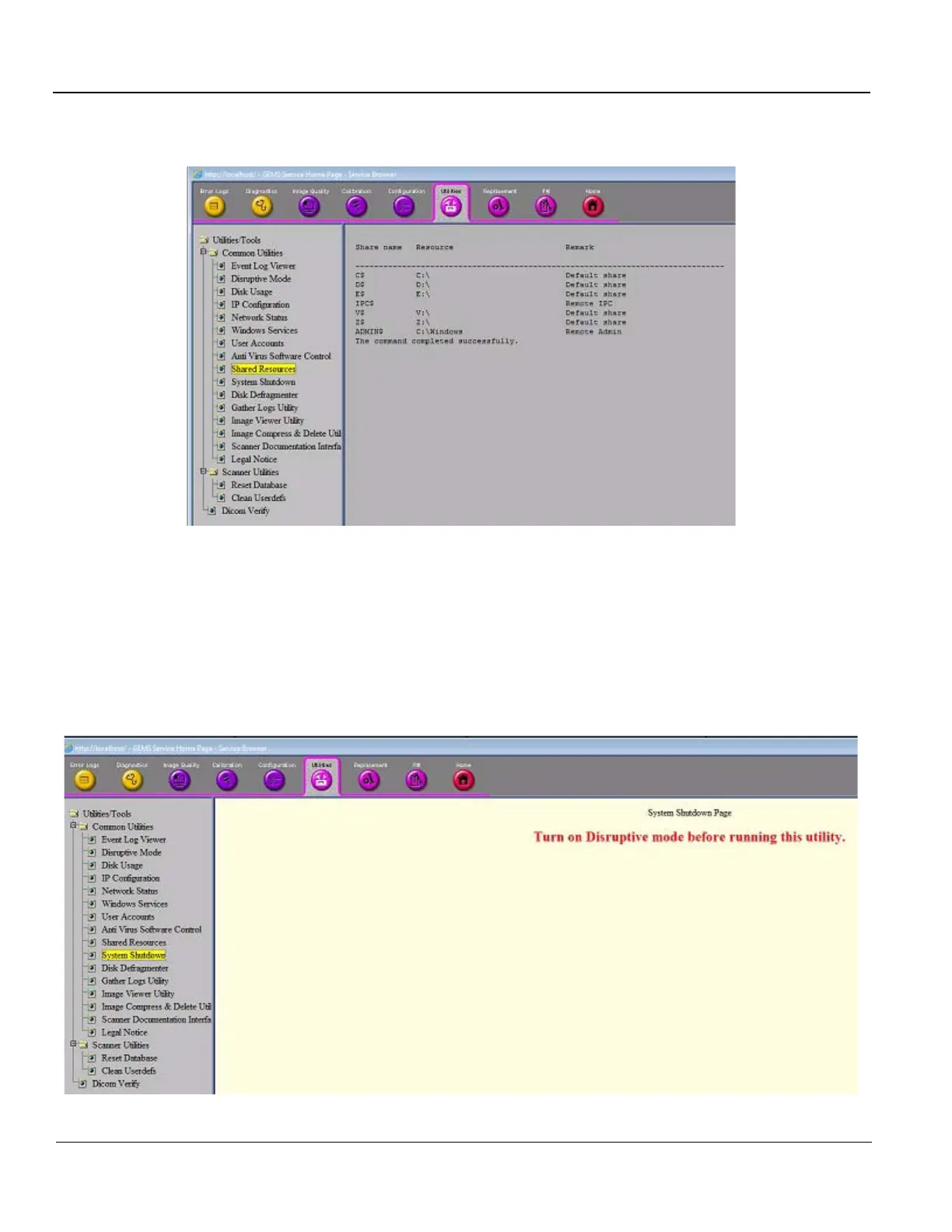

Figure 7-34 Shared Resources Window
7-4-10-10 System Shutdown
System Shutdown gives you the ability to Restart or Shutdown the system when using Virtual Console
Observation from a remote computer.
NOTE: Retain Disruptive Mode checkbox:
- MUST be checked if you are working from a remote computer.
- Should be unchecked if you are working locally on the scanner.
Figure 7-35 System Shutdown Window
