Maintenance

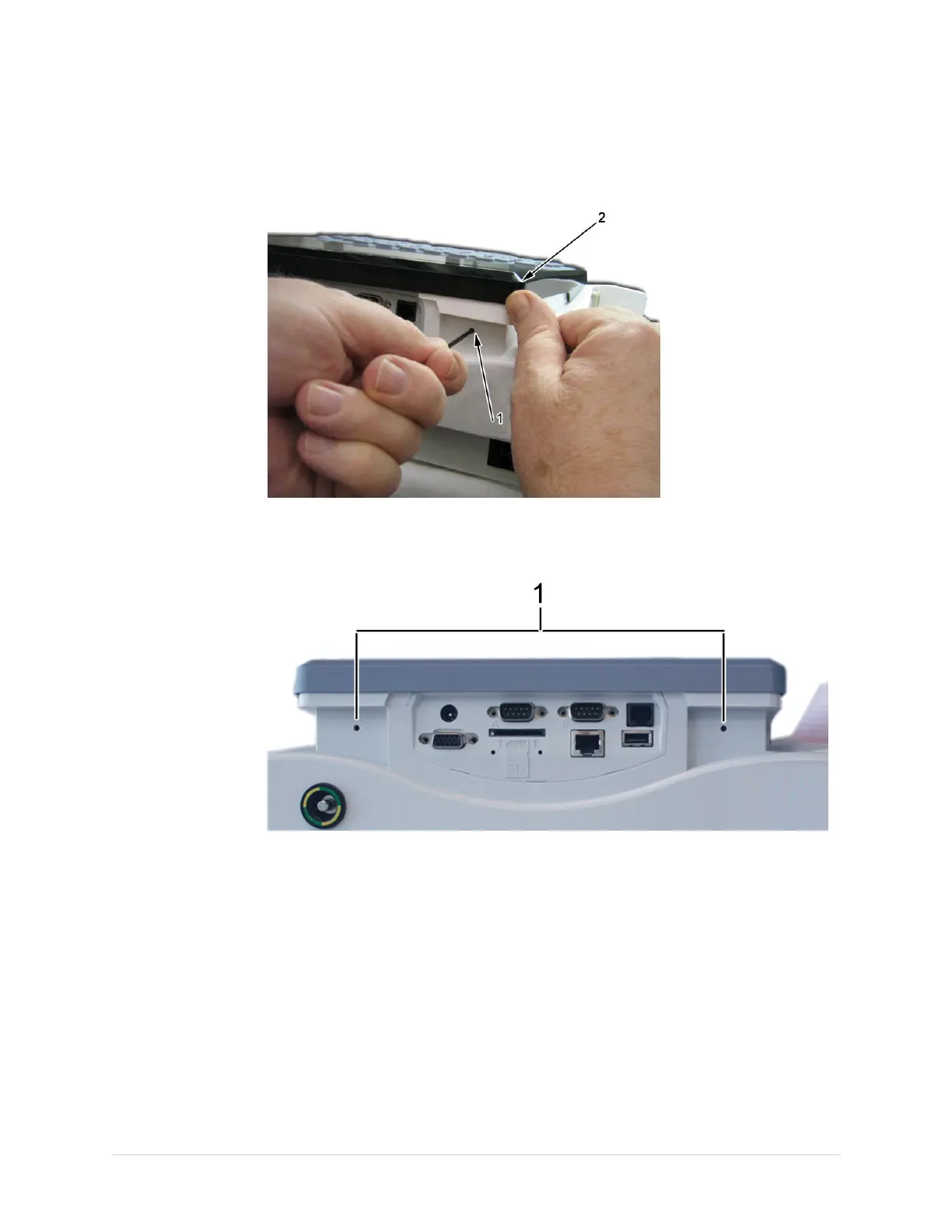

6.PushasmallAllenwrench(orstraightenedpaperclip)intooneofthe

keyboardbezelreleaseholes(1),asshowninthefollowingillustration,while

pushinguponthecornerofthekeyboardbezel(2).

7.Repeatstep6fortheothercornerofthekeyboardbezel.

Thetwokeyboardbezelreleaseholes(1)areshowninthefollowingillustration.

8.Liftthebackendofthekeyboardbezelapproximatelyoneinch.

68MAC™16002028451-183E
