GE MAC 1600 Service Manual

Maintenance

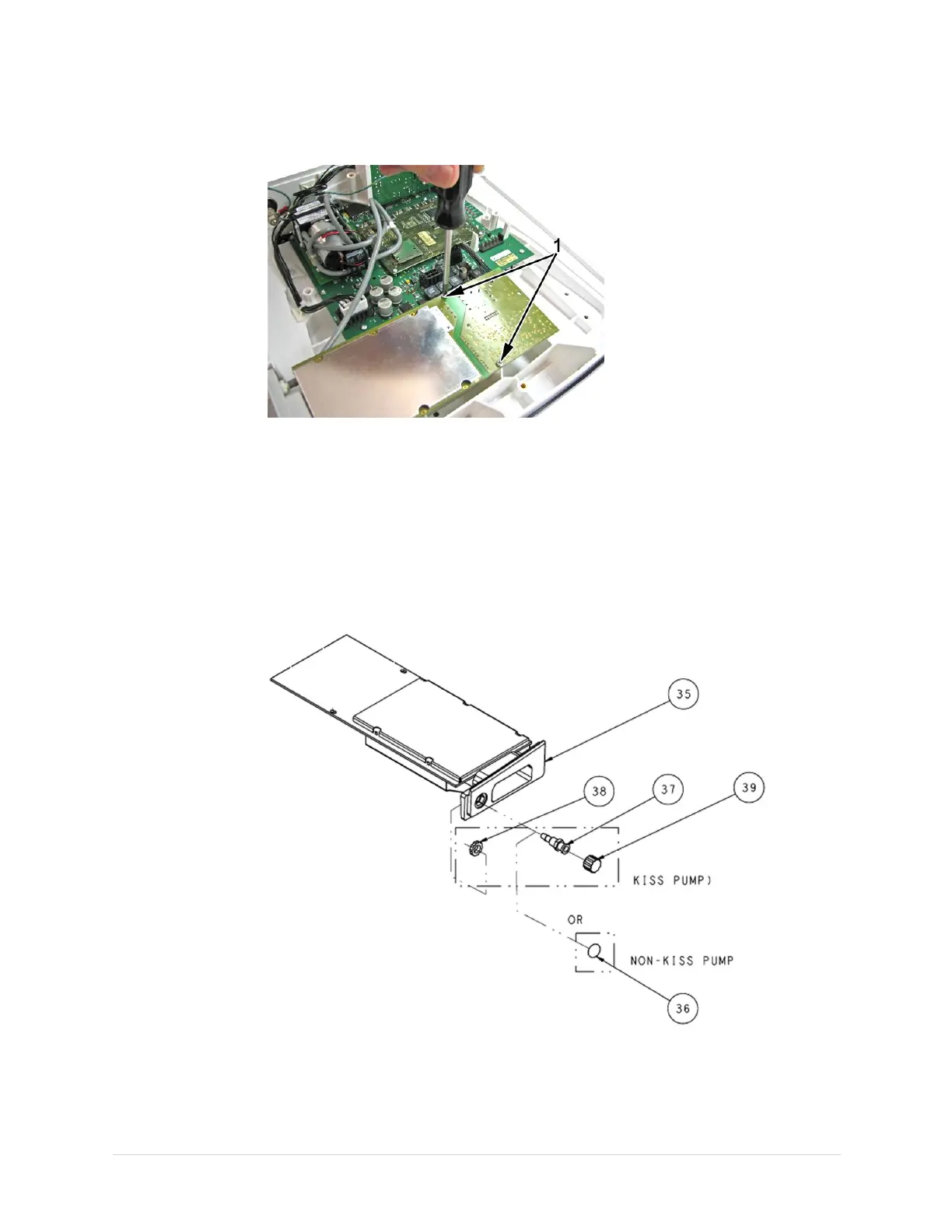

4.Removethetwoscrews(1)showninthefollowingillustration.
5.Lifttheacquisitionmoduleassemblyuntilyoucanaccesstheblackharness
connectorontheothersideoftheacquisitionmodule.
6.IfthesystemisequippedwiththeoptionalKISSpump,disconnectthegray
hosefromtheluertting.
7.Removetheacquisitionboardassembly.
8.Reassembletheacquisitionboardassembly.Ifthesystemdoesnothavethe
KISSoption,gotostep9.IfthesystemhastheKISSoption,gotostep10.
Usethefollowingillustrationforreference.
9.Reassembleacquisitionboardassembly(systemswithnoKISSoption).
a.Placethelabel(item36)intherecessedholeoftheplasticbezel.
b.Reversethedisassemblystepstoreassemble.
76MAC™16002028451-183E
