Equipment Overview: General Description
General Description
The MAC 600 Resting ECG Analysis System is a 10-lead, 12-channel
device with an integrated 4.3 inch WQVGA color display and three-inch
thermal printer. This is a portable device with a lithium ion battery and
smart charger. This device supports AC operation with a 12V ACDC
medical grade adaptor. The device can support communication and
external storage through serial port and SD card options.

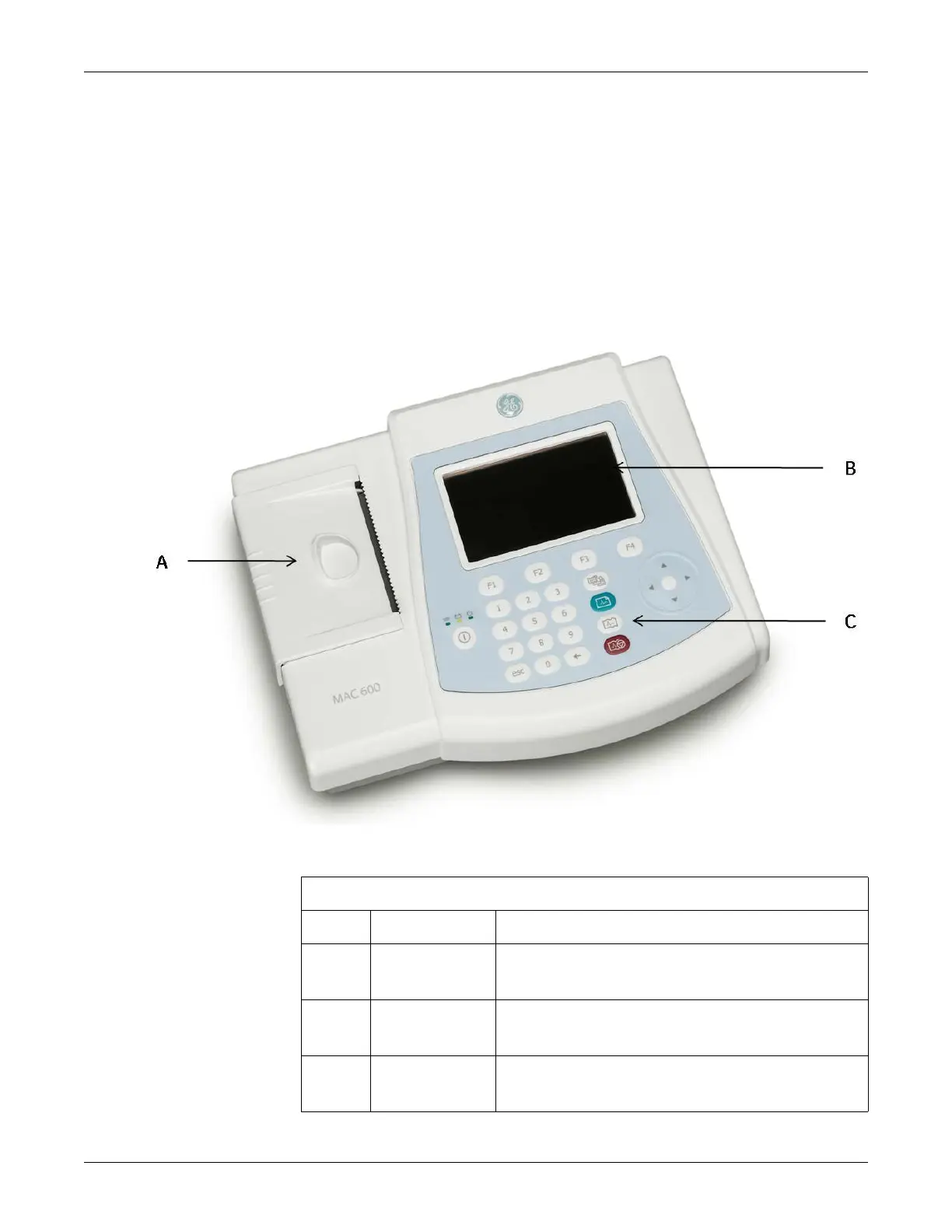

Top View
Table 2-1. Top view
Name Description
A Writer/Printer Prints ECG Reports
B Display View ECGs of different lead/lead group, heart rate, mode of operation,
speed, gain, and filter settings.
C Keypad Keys to power on the system, change operating parameters or control
operations.
